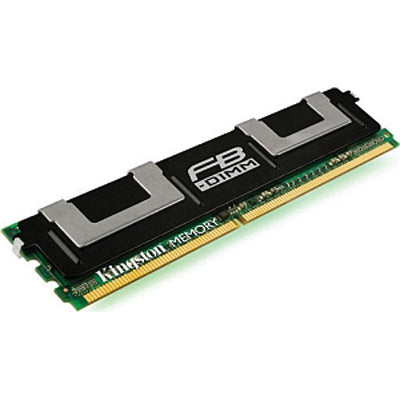

Kingston DDR2 FB DIMM 2GB PC667

This document describe Value RAMs 2GB (256M x72-bit) PC2-5300 CL5 SDRAM (Synchronous DRAM) Fully Buffered ECC dual Rank Memory Module. this module is based on Thirty-six 128M x 4-bit 667 MHZ DDR2 FBGA Components.The Module also includes an AMB Device (Advance memory Buffer). the electrical and mechanical specification are as follows

• FBDIMM Module:240-pin
• JEDC Standard's: R/C H
• Memory Organization:2 rank of x4 devices
• DDR2 DRAM Interface: SSTL_18
• DDR2 Speed Grade: 667 Mbps
• Cas Latency:5-5-5
• Module Banwidth:5.3 GB/s
• FBDIMM Channel Peak throughput: 8.0 GB/S
• DRAM: VDD =VDDQ=1.8V
• AMB: VCC= VCCFBD=1.5V
• EEPROM: VDDSPD=3.3V (typical)
• Heat Spreader : AMB only heat sink
• PCB Height:30.35mm,double-side
• ROHS Compliant
