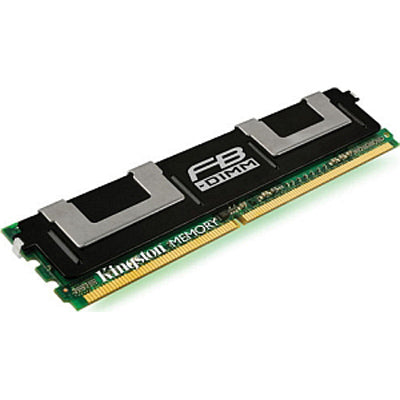

Kingston DDR2 FB DIMM 1GB PC800

This document describe Value RAMs 1GB (128M x72-bit)pcc2-6400 CL5 SDRAM (Synchronous DRAM)Fully Buffered ECC dual rank Memory module. this module is based on eighteen 64M x 8-bit 800 MHZ DDR2 FBGA Components.The Module also includes an AMB Device (Advance memory Buffer). the electrical and mechanical specification are as follows

• FBDIMM Module:240-pin
• JEDC Standard's/C B
• Memory Organization:2 rank of x8 devices
• DDR2 DRAM Interface:SSTL_18
• DDR2 Speed Grade:800 Mbps
• Cas Latency:5-5-5
• Module Banwidth:6.4 GB/s
• DRAM: VDD =VDDQ=1.8V
• AMB:VCC=VCCFBD=1.5V
• EEPROM: VDDSPD=3.3V (typical)
• Heat Spreader :Full DIMM Heat Spreader (FDHS)
• PCB Height:30.35mm,double-side
• ROHS Compliant
