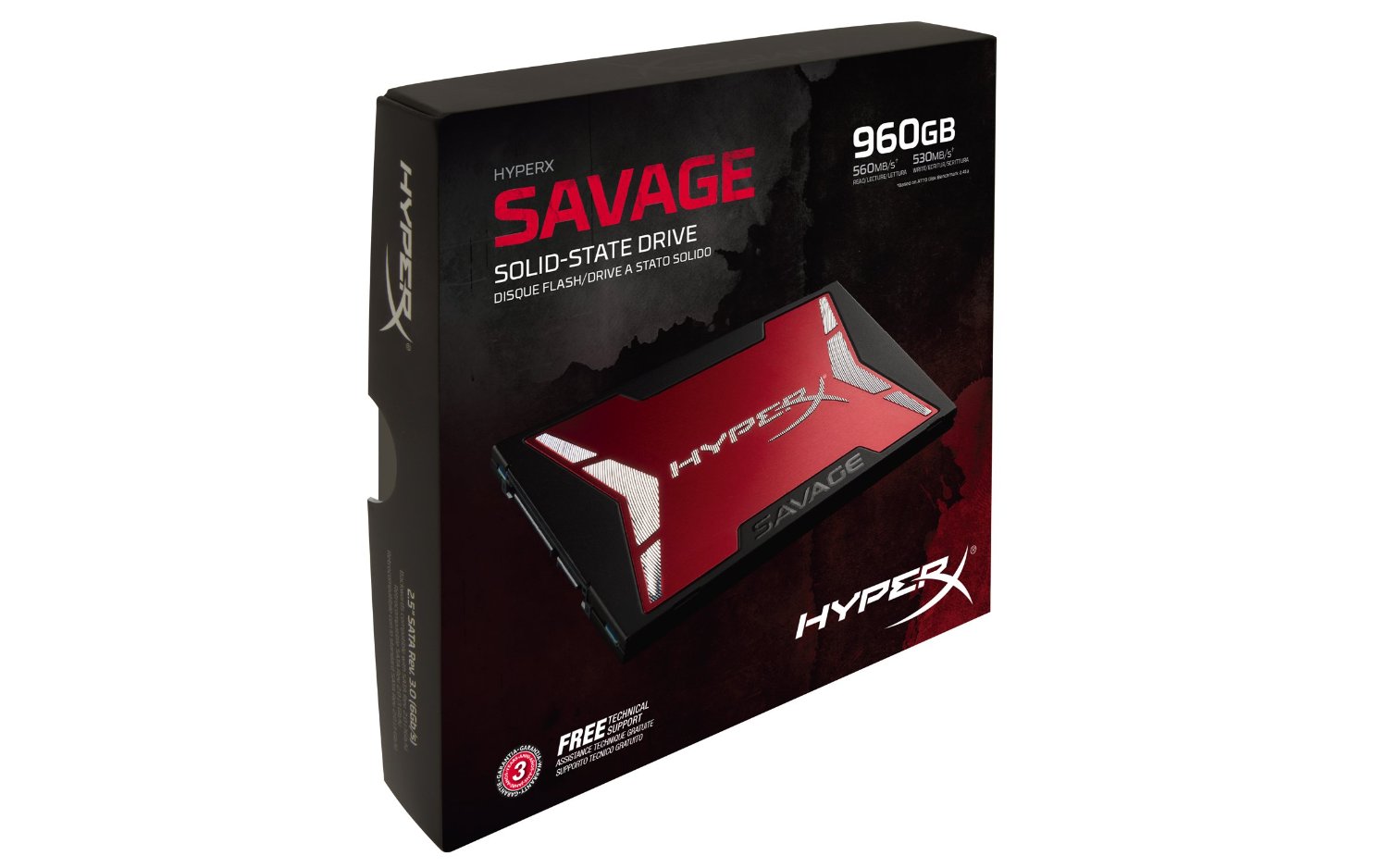

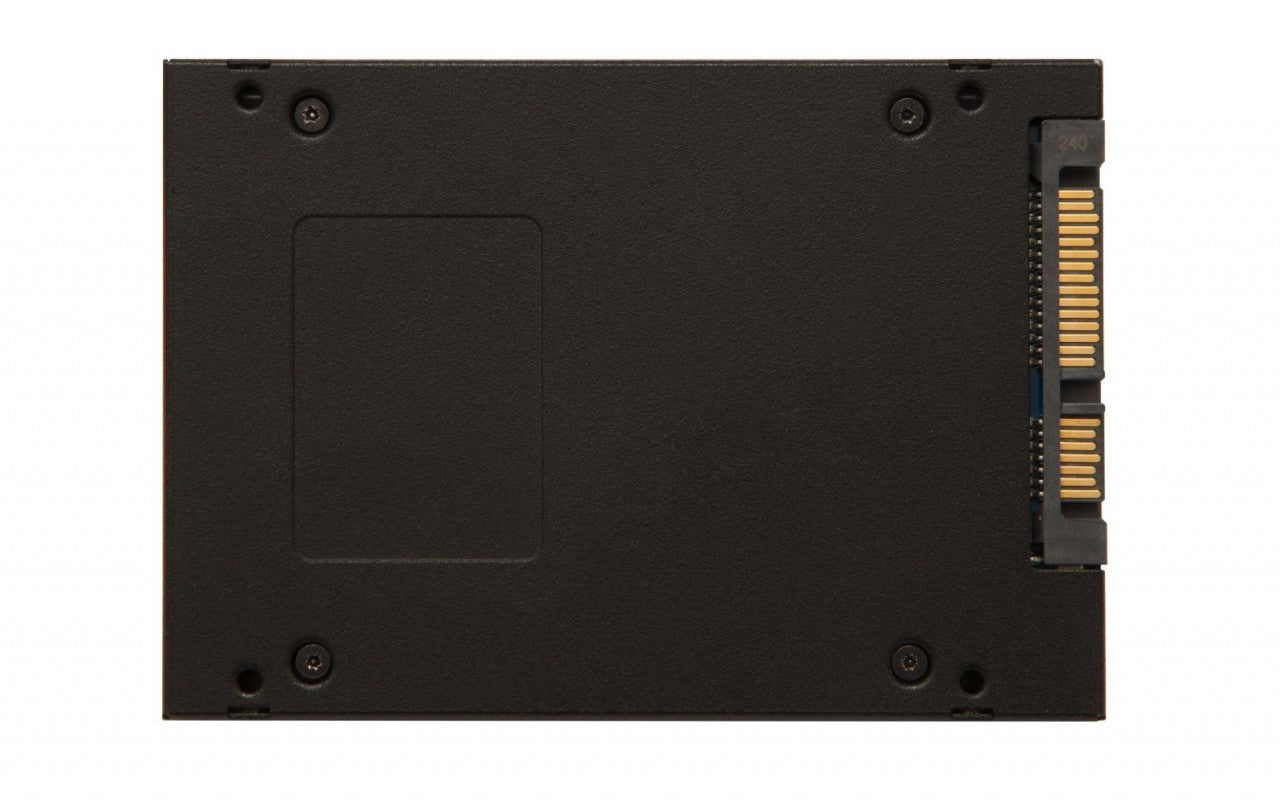

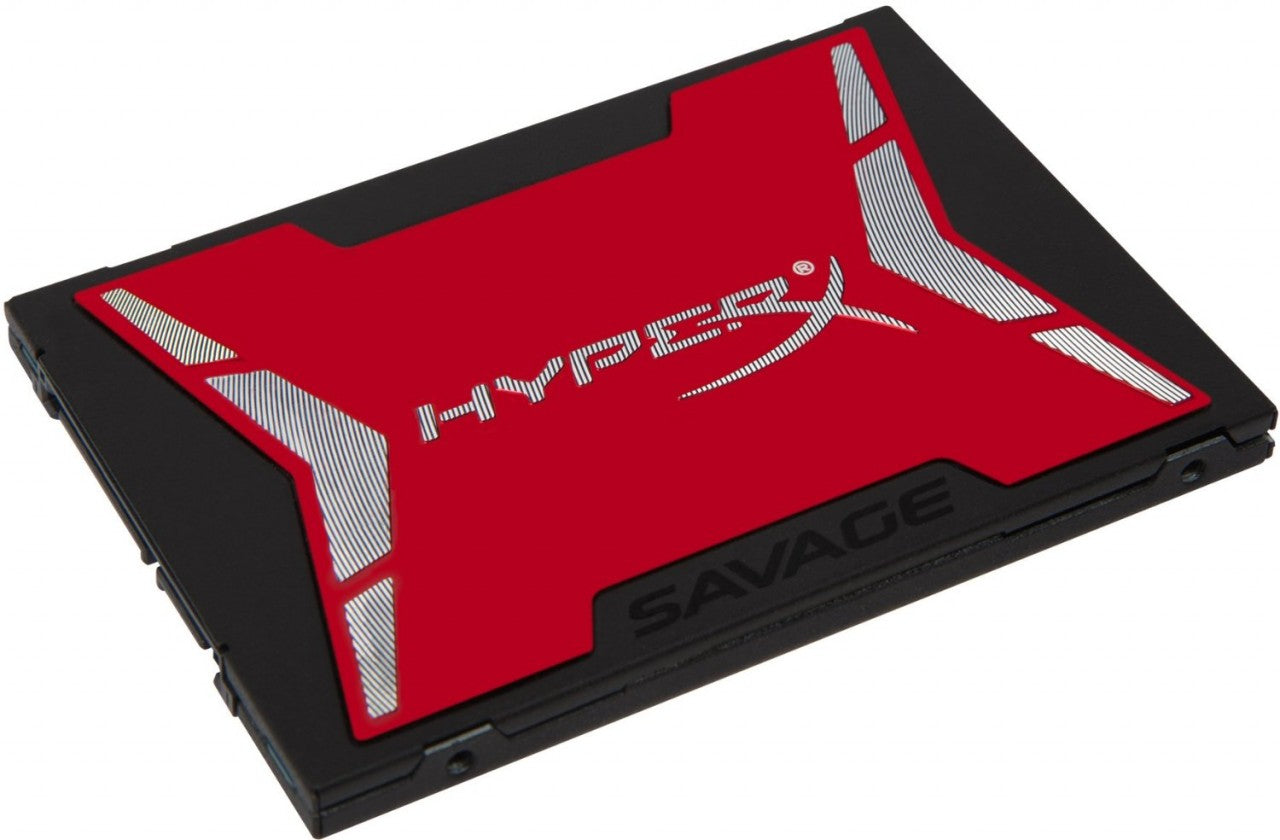

Kingston 960GB HYPERX SAVAGE SSD SATA3 2.5 7mm

HyperX Savage SSD

HyperX® Savage solid-state drive offers extreme performance for the ?extreme performer. The fastest HyperX SATA-based SSD, it’s powered by a quad-core, 8-channel Phison S10 controller that delivers incredible speeds of up to 560MB/s read and 530MB/s write, with read/write IOPS up to 100k/89k. The result is ultra-responsive multitasking and an overall faster system that maintains performance even as the drive fills up. With its low profile and slim, 7mm form factor, HyperX Savage SSD fits in most notebooks, desktops and HTPC builds.

Performance — incredible speeds for enhanced productivity
Unique design — stunning red casing to give an edge to the latest PC hardware
Slim — 7mm thickness to fit in most desktops and notebooks
Fast and easy migration — all-in-one kit available with premium HyperX accessories, including a handy multi-kit screwdriver and USB 3.0 enclosure for easy installation
Guaranteed — three-year warranty and free technical support

Specifications

Form factor: 2.5"

Interface:
SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)

Capacities: 960GB

Controller: Phison PS3110-S10

Baseline performance:

Compressible Data Transfer (ATTO)

120GB — 560MB/s Read and 360MB/s Write
240GB, 480GB, 960GB — 560MB/s Read and 530MB/s Write

Incompressible Data Transfer (AS-SSD and CrystalDiskMark)

120GB — 520MB/s Read and 350MB/s Write
240GB — 520MB/s Read and 510MB/s Write
480GB — 520MB/s Read and 500MB/s Write
960GB — 520MB/s Read and 490MB/s Write

IOMETER Maximum Random 4k Read/Write

120GB — up to 100,000/ up to 84,000 IOPS
240GB — up to 100,000/ up to 89,000 IOPS
480GB — up to 100,000/ up to 88,000 IOPS
960GB — up to 99,000/ up to 89,000 IOPS

Random 4k Read/Write:
120GB — up to 93,000/ up to 83,000 IOPS
240GB — up to 93,000/ up to 89,000 IOPS
480GB — up to 92,000/ up to 89,000 IOPS
960GB — up to 97,000/ up to 89,000 IOPS

PCMARK® Vantage HDD Suite Score:
120GB, 240GB, 480GB, 960GB — 84,000

PCMARK® 8 Storage Bandwidth:
120GB, 240GB, 480GB — 223MB/s, 960GB — 260MB/s

PCMARK® 8 Storage Score:
120GB, 240GB, 480GB — 4,940, 960GB — 4,970

Anvil Total Score (Incompressible Workload):
120GB, 240GB, 480GB — 4,700, 960GB — 5,000

Power Consumption:
0.39W Idle / 0.5W Avg / 1.4W (MAX) Read / 4.35W (MAX) Write

Storage temperatures: -40°C ~ 85°C

Operating temperatures: 0°C ~ 70°C

Dimensions: 100.0mm x 69.9mm x 7.0mm

Weight:

480GB — 96g

Vibration operating: 2.17G Peak (7–800Hz)

Vibration non-operating: 20G Peak (10–2000Hz)

Life expectancy: 1 million hours MTBF

Total Bytes Written (TBW) :

120GB: 113TB 0.89 DWPD4
240GB: 306TB 1.19 DWPD4
480GB: 416TB 0.81 DWPD4
960GB: 681TB 0.66 DWPD4
