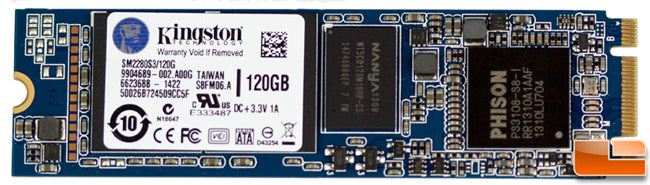

Kingston 120GB SSDNow M.2 SATA (6Gbps)

SSDNow M.2 SATA G2 Drive

Kingston’s M.2 SATA G2 SSD is a compact, caseless internal solid-state drive that combines high capacity with low power consumption. Lighter weight than a cased SSD, the M.2 SATA G2 SSD optimises performance with advanced garbage collection, wear-levelling, TRIM support1 and DevSleep. Suitable for small-form-factor (SFF) PCs, the M.2 2280 SATA G2 SSD easily integrates into designs with M.2 connectors. The complimentary Kingston SSD Manager (KSM) monitors warranty status and SSD health.

Features

• Space-saving caseless design fits ultra-thin computing applications
• Multi-purpose SFF connector replaces small mSATA and mini-PCIe slots
• Capacities of up to 480GB2
• M.2 Gen 2 SSDs are backed by a limited five-year warranty3

Specifications

Form factor: M.2 2280

Interface:
SATA Rev. 3.0 (6Gb/s) – with backward compatibility to SATA Rev. 2.0

Capacities: 120GB

Baseline performance:

Sequential Read/Write SATA Rev. 3.0:

120GB - Up to 550/200MB/s

Maximum 4k Read/Write:
120GB - up to 90,000/48,000 IOPS

Random 4k Read/Write:
120GB - up to 80,000/48,000 IOPS

Endurance:
120GB: 150TB and 0.56 DWPD

Power Consumption:
Max Read: 1.56W
Max Write: 3.01W
Idle: 0.06W

Storage temperatures: -40°C ~ 85°C

Operating temperatures: 0°C ~ 70°C

Dimensions: 80mm x 22mm x 3.5mm

Weight:120GB - 5.99 (g)

Vibration operating: 2.17G Peak (7–800Hz)

Vibration non-operating: 20G Peak (10–2000Hz)

Life expectancy: 1 million hours MTBF
