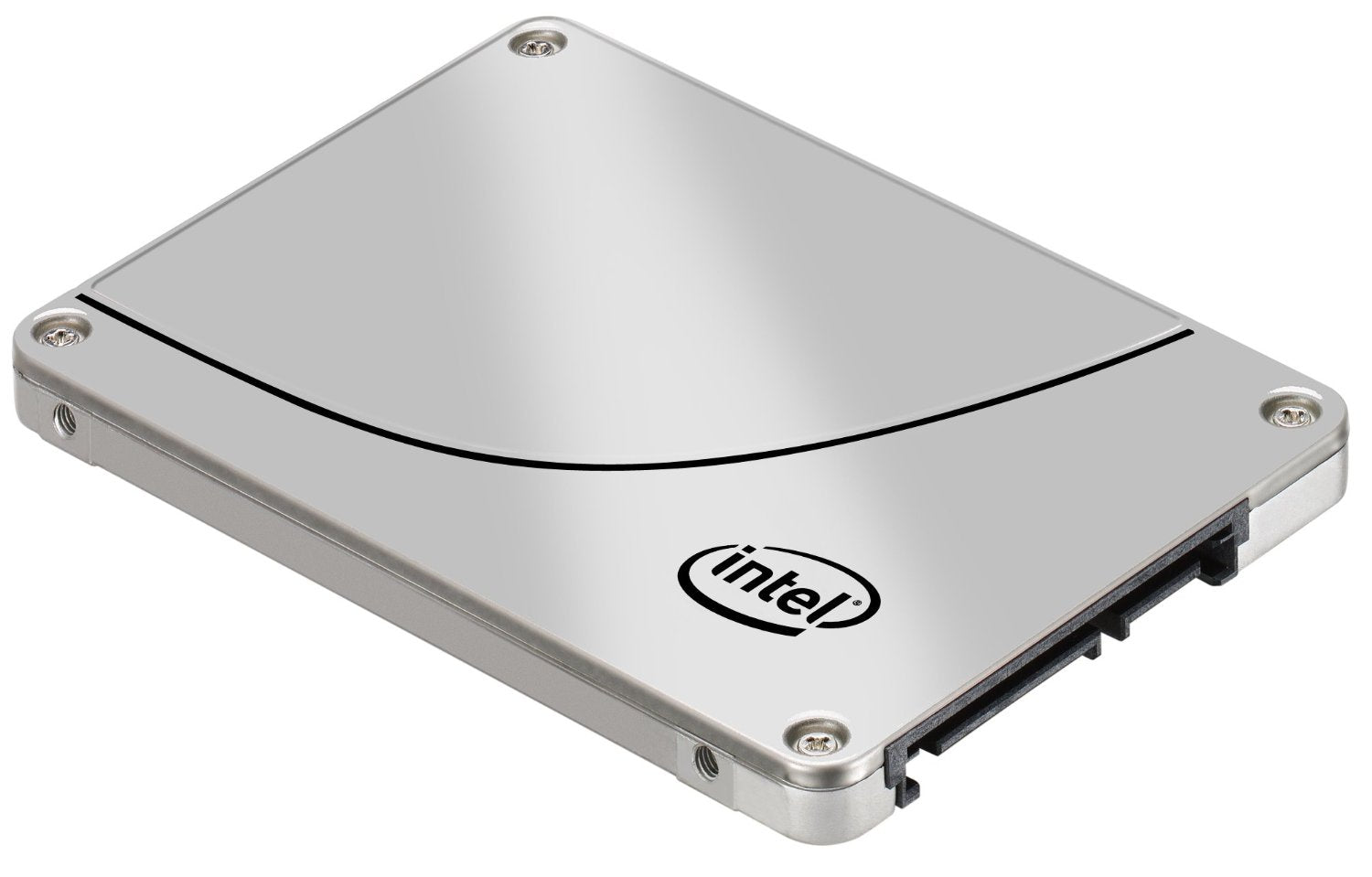

Intel SSD DC S3500 Series (240GB, 2.5in SATA 6Gb/s, 20nm, MLC)

The Intel® SSD DC S3500 Series combines fast, consistent read performance with strong data protection and low active power levels to provide superior quality of service for video conferencing, big data analytics, or virtual client applications. Consistently low read latencies of 50µs typical (500µs max for 99.9% of the time) along with a tight distribution of up to 75,000 input/output per second (IOPS)1 delivers a high-performance, reliable, and efficient SSD specifically designed for data center application upgrades.

Key features and benefits of this drive include an Intel® 3rd generation controller, industry-leading 20nm multi-level cell (MLC) NAND flash technology, full end-to-end data protection, enhanced power-loss data protection, and a broad range of capacities up to 800GB.

SPECIFICATIONS

- Essentials
Status	Launched
Sequential Read	500 MB/s
Sequential Write	260 MB/s
Random Read (100% Span)	75000 IOPS
Random Write (100% Span)	7500 IOPS
Latency - Read	50 µs
Latency - Write	65 µs
Power - Active	3.1W
Power - Idle	0.9W
Vibration - Operating	2.17 GRMS (5-700 Hz) Max
Vibration - Non-Operating	3.13 GRMS (5-800 Hz) Max
Shock (Operating and Non-Operating)	1,000 G (Max) at 0.5 msec
Operating Temperature Range	0°C - 70°C
Weight	70 grams ± 2 grams
Endurance Rating (Lifetime Writes)	140 TBW
Mean Time Between Failures (MTBF)	2,000,000 hours
Uncorrectable Bit Error Rate (UBER)	1 sector per 101^7 bits read
Warranty Period	5 yrs
Product Brief	Yes
Recommended Customer Price	OEM : $239.00 BULK: $239.00

- Package Specifications
Capacity	240 GB
Form Factor	2.5"
Interface	SATA 6.0 Gb/s
Lithography	20 nm

- Advanced Technologies
Enhanced Power Loss Data Protection	Yes
Hardware Encryption	AES 256 bit
?High Endurance Technology (HET)	No
Temperature Monitoring and Logging	Yes
End-to-End Data Protection	Yes
