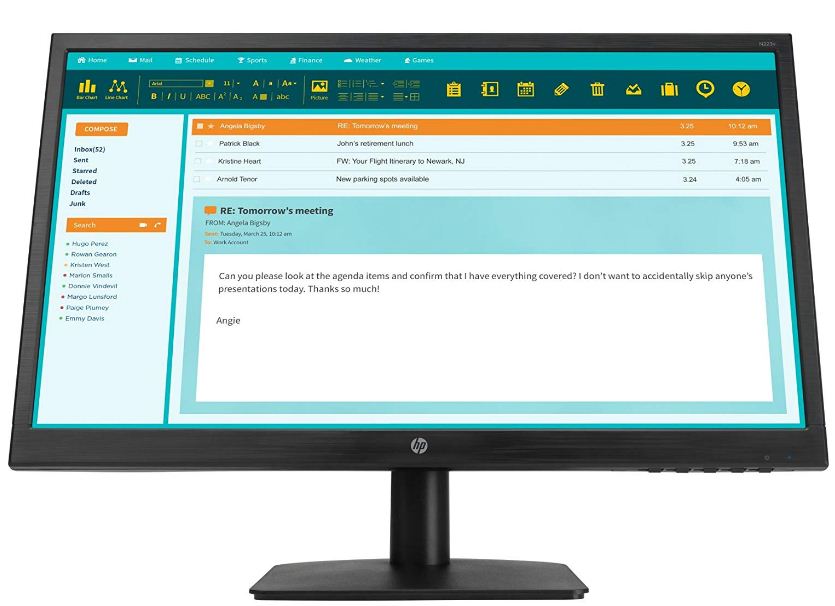

HP N223v 21.5-inch Monitor

Weight Unpacked with stand 2.60 kg (5.73 lb) Packed 3.64 kg (8.02 lb) Head only 2.46 kg (5.42 lb)

Panel

Specification

Type 21.5-inch, TN

Viewable image area (diagonal) 54.61 cm (21.5 in) widescreen

Panel active area (W x H) 47.65 x 26.80 cm (18.76 x 10.55 in)

Resolution 1920 x 1080 at 60 Hz

Aspect ratio 16:9

Viewing angle (typical) Up to 90° horizontal Up to 65° vertical

Brightness 200 cd/m2

Contrast ratio 450:1 static (minimum) 600:1 static (typical)

Dynamic contrast ratio 10,000,000:1 dynamic (DCR)

Response times 5 ms

Pixel pitch 0.248 x 0.248 mm

Pixels Per Inch (PPI) 102

Default color temperature 6500 K

Backlight lamp life 30,000 hours minimum (to half brightness)

Panel bit depth 8-bit (6-bit + Hi FRC)

Color gamut (typical) 72% (NTSC)

Anti-glare panel Yes

User controls

Specification

Buttons or switches Menu, Minus ("-"), Plus ("+") /Input Control, and Power

User Programmable Modes Yes, 3 (6 options)

Languages 10 (English, Spanish, German, French, Italian, Dutch, Portuguese, Japanese, Simplified Chinese, and Traditional Chinese)

On-screen Display (OSD) user controls Brightness, Contrast, Color Control, Input Control, Image Control, Power Control, Menu Control, Management, Language, Information, and Exit

Signal interface/performance

Specification

Native resolution 1920 x 1080 at 60 Hz

Preset graphic modes (non-interlaced) 640 x 480 at 60 Hz 720 x 400 at 70 Hz 800 x 600 at 60 Hz 1024 x 768 at 60 Hz 1280 x 720 at 60 Hz 1280 x 800 at 60 Hz 1280 x 1024 at 60 Hz 1440 x 900 at 60 Hz 1600 x 900 at 60 Hz 1680 x 1050 at 60 Hz 1920 x 1080 at 60 Hz

Pixel clock 170 MHz

Vertical frequency 50 - 60 Hz

Horizontal frequency 30 - 80 kHz

Video/other inputs

Specification

Plug and play Yes

Input connectors (1) VGA (1) DVI (HDCP support)

Video cables included (1) VGA cable 1.5 m (4.9 ft)

Ergonomics

Specification

Color: Black

Detachable stand Yes, ships detached

Tilt range -5° to + 15° vertical

VESA mounting Yes, 75 mm

Security lock-ready Yes

Power

Specification

Power supply Internal

Input power 100 - 240 VAC 50/60 Hz

Maximum power 20 W

Typical power 18 W

Sleep power 0.5 W

Power cable length 1.9 m (6.23 ft)

What's in the box?

Specification

Monitor and accessories HP N223v 21.5-inch Monitor AC power cord, 1.9 m (6.23 ft) VGA cable, 1.5 m (4.92 ft)

Documentation CD (includes user guide, warranty, and drivers)

Physical specifications

Specification

Dimensions (W × D × H)

Unpacked with stand 50.39 x 17.04 x 38.30 cm (19.84 x 6.71 x 15.08 in)

Packaged 57.0 x 10.69 x 38.51 cm (22.44 x 4.21 x 15.16 in)

Unpacked without stand (head only) 50.39 x 4.90 x 31.04 cm (19.84 x 1.93 x 12.22 in)

Weight

Unpacked with stand 2.60 kg (5.73 lb)

Packaged 3.64 kg (8.02 lb)

Head only 2.46 kg (5.42 lb)

Environmental

Specification

Temperature

Operating 5° to 35° C (41° to 95° F)

Non-operating -20° to 60° C (-4° to 140° F)

Humidity

Operating 20% to 80% non-condensing

Non-operating 5% to 95%

Altitude

Operating 0 to 5,000 m (0 to 16,400 ft)

Non-operating 0 to 12,192 m (0 to 40,000 ft)

Arsenic-free display glass Yes

White LED backlights Yes

Mercury-free display backlighting Yes

Eco-label certifications & declarations CB TUV low blue light CCC CEL CECP SEPA WEEE
