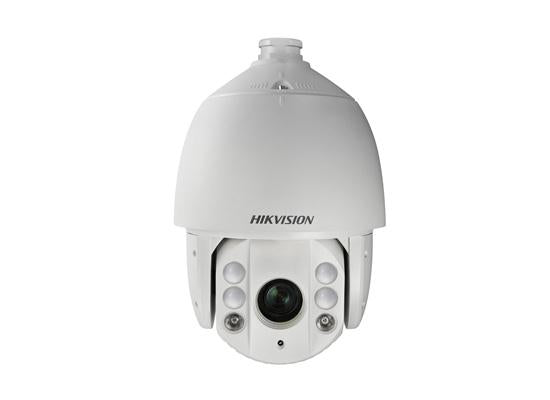

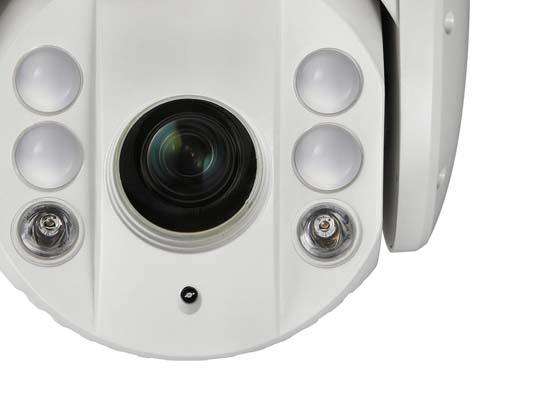

HIKVision HD720P Turbo IR PTZ Dome Camera

Features

• 1.3MP CMOS Image Sensor
• Full HD 720P Video Output
• 23X optical zoom, 16X digital zoom
• Support up the coax function
• Privacy Masking, 3D DNR, D WDR, EIS
• 3D intelligent positioning
• True Day&Night

Camera

Image Sensor: | 1/3" Progressive Scan CMOS

Effective Pixels: | 1280(H)x720(V)

Signal System: | PAL/NTSC

Minimum Illumination: | Color: 0.05Lux@(F1.4,AGC ON)

B/W:

0.005Lux@(F1.4,AGC ON)
0 lux with IR

White Balance: | Auto / Manual / ATW / Indoor / Outdoor

AGC: | Auto/Manual

BLC: | ON/OFF

WDR: | Support

Shutter Time: | PAL: 1-1/10,000s

NTSC: 1-1/10,000s

Day& Night: | ICR

Digital Zoom: | 16x

Privacy Masking: | 8 privacy masks programmable

Lens

Focal Length: | 4-92mm, 23x

Zoom Speed: | Approx.3.0s(Optical Wide-Tele)

Angle of View: | 49-2.2 degree(Wide-Tele)

Minimum Working Distance: | 10-1000mm (Wide-Tele)

Aperture Range: | F1.4-F3.5

Pan & Tilt

Pan Range: | 360°endless

Pan Speed: | Pan Manual Speed: 0.1°-160°/s,

Pan Preset Speed: 240°/s

Tilt Range: | -15°-90° (Auto Flip )

Tilt Speed: | Tilt Manual Speed: 0.1°-120°/s,

Tilt Preset Speed: 200°/s

Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset: | 256

Patrol: | 8 patrols, up to 32 presets per patrol

Pattern: | 4 patterns, with the total recording time not less than 10 minutes

Power loss recovery: | Support

Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

PTZ Position Display: | ON/OFF

Infrared

IR irradiation distance: | 120m

IR irradiation angle: | Adjustable by zoom

Input & Output

Turbo HD Output: | 1 turbo HD720p output, BNC

General

RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive

Menu Language: | English / Chinese

Power Supply: | 24V AC

Power Consumption: | Max. 30W(IR: 9W, Heater: 6W)

Working Temperature/Humidity: |

-30 °C-65°C(-22°F-149°F)
90% or less

Protection Level: |

IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection

Dimensions: | Φ220×353.4mm (Φ8.66”×13.91”)

Weight (approx.): | 4.5kg(9.92 Ibs)

Mount Option: | Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box
