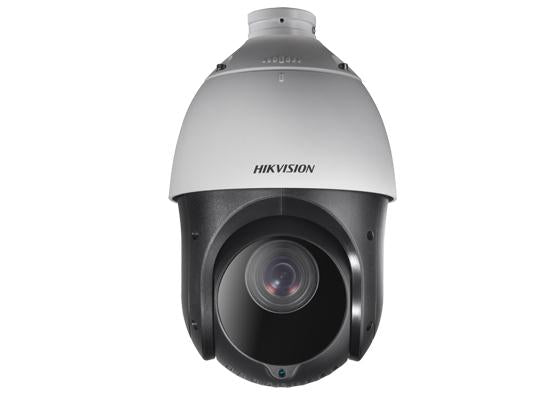

HIKVision HD1080P Turbo IR PTZ Dome Camera

Features

• 1/2.8'' Progressive Scan CMOS
• 1920×1080
• 23X Optical Zoom
• DWDR
• Up to 100m IR distance
• 3D intelligent positioning function
• Support Turbo HD and BNC output

Specifications

Camera

Image Sensor: | 1/2.8" Progressive Scan CMOS

Effective Pixels: | 1920(H)x1080(V)

Signal System: | PAL/NTSC

Minimum Illumination: | Color: 0.05Lux@( F1.4,AGC ON); B/W: 0.005Lux@( F1.4,AGC ON), 0 Lux with IR

White Balance: | Auto / Manual / ATW / Indoor / Outdoor

AGC: | Auto/Manual

BLC: | ON/OFF

WDR: | Support

Shutter Time: | 1-1/10,000s

Day& Night: | ICR

Digital Zoom: | 16X

Privacy Masking: | 8 privacy masks programmable

Auto Focus: | Auto / Semi-automatic / Manual

Lens

Focal Length: | 4-92.0mm, 23x

Zoom Speed: | Approx.3s(Optical Wide~Tele)

Angle of View: | 49-2.2 degree(Wide-Tele)

Minimum Working Distance: | 10~1,000mm(Wide~Tele)

Aperture Range: | F1.4-F3.5

Pan & Tilt

Pan Range: | 360°endless

Pan Speed: | Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s

Tilt Range: | -15°-90° (Auto Flip )

Tilt Speed: | Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s

Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset: | 256

Patrol: | 8 patrols, up to 32 presets per patrol

Pattern: | 4 patterns, with the total recording time not less than 10 minutes

Power loss recovery: | Support

Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

PTZ Position Display: | ON/OFF

Freeze Frame: | Support

Infrared

IR irradiation distance: | 100m

IR irradiation angle: | Adjustable by zoom

General

RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive

Menu Language: | English

Power Supply: | 12V DC

Power Consumption: | Max.18W

Working Temperature/Humidity:

-30 °C-65°C(-22°F-149°F)
90% or less

Protection Level:

IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection

Mounting: | Various mounting modes optional

Dimensions: | Φ164.5(mm)×295(mm)

Weight (approx.): | 2Kg (4.41Ibs)

Mount Option: | Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner;

Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ
