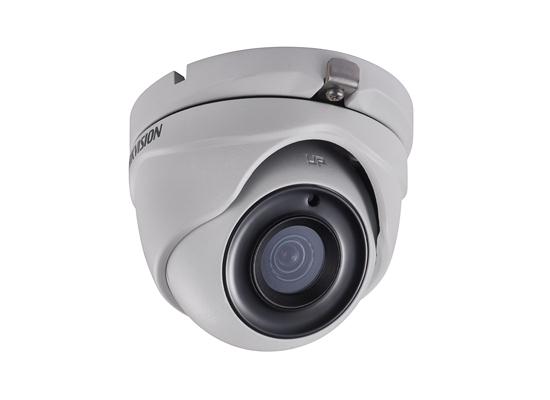

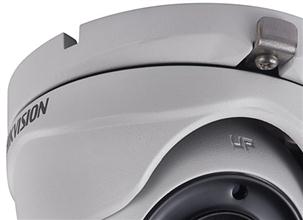

HIKVision 3MP Eyeball EXIR Turret Camera

Features

• 3 Megapixel high-performance CMOS
• Analog HD output, up to 3MP resolution
• True Day/Night
• OSD menu, DNR, Smart IR
• EXIR technology, up to 20m IR distance
• IP66 weatherproof
• Up the Coax(HIKVISION-C)

Specifications

Camera

Image Sensor: | 3MP CMOS Image Sensor

Effective Pixels: | 2052(H)*1536(V)

Signal System: | PAL/NTSC

Minimum Illumination: | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR

Shutter Time: | 1/25(1/30) s to 1/50,000 s

Lens: | 2.8mm/3.6mm/6mm optional

Angle of View: 84°(2.8mm), 67.8°(3.6mm), 44.6°(6mm)

Lens Mount: | M12

Adjustment Range: | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°

Day& Night: | IR cut filter with auto switch

Video Frame Rate: | 1920 ×1536@18fps

HD Video Output: | 1 Analog HD output

Synchronization: | Internal Synchronization

S/N Ratio: | More than 62 dB

Up the Coax: | Support

Menu

Auto White Balance: | Auto/MWB

BLC: | Support

AGC: | Support

Language: | English/Chinese

Function: | Digital Noise reduction; Mirror; SMART IR

General

Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F)

Humidity 90% or less (non-condensing)

Power Supply: | 12 VDC±15%

Power Consumption: | Max. 5W

Weather Proof: | IP66

IR Range: | Up to 20m

Communication : | Up the coax

Protocol: HIKVISION-C(Coaxitron)

Dimension: | 91mm×82.6mm×68.3mm (3.58"×3.25"×2.69")

Weight: | Approx. 350g (0.77lb)
