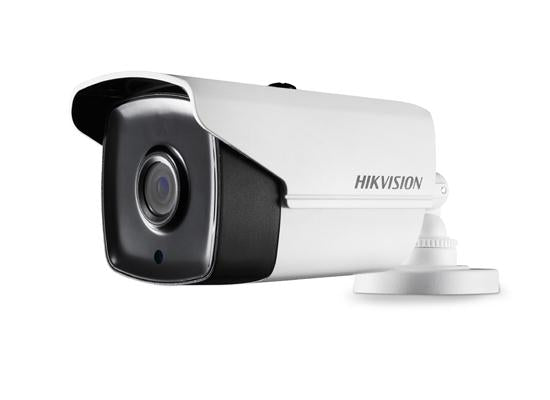

HIKVision 3MP EXIR Bullet O/D 20m IR 6mm IP66 Camera

Features

• 3 Megapixel high-performance CMOS
• Analog HD output, up to 3MP resolution
• True Day/Night
• OSD menu, DNR, Smart IR
• EXIR technology, up to 20/40/80m IR distance
• IP66 weatherproof
• Up the Coax(HIKVISION-C)

Specifications

Camera

Image Sensor: 2MP CMOS Image Sensor

Signal System: PAL/NTSC

Effective Pixels: 1928(H)*1088(V)

Min. Illumination: 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR

Shutter Time: 1/25(1/30) s to 1/50,000 s

Lens: 2.8mm, 3.6mm, 6mm, optional

Angle of View: 84°(2.8mm), 67.8°(3.6mm), 44.6°(6mm)

Lens Mount: M12

Adjustment Range: Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°

Day& Night: IR cut filter with auto switch

Video Frame Rate: 1920 ×1536@18fps

HD Video Output: 1 Analog HD output

Synchronization: Internal Synchronization

S/N Ratio: More than 62 dB

Up the Coax: Support

Menu

Auto White Balance: Auto/MWB

BLC: Support

AGC: Support

Language: English/Chinese

Function: Digital Noise reduction; Mirror; SMART IR

General

Operating Conditions: -40 °C - 60 °C (-40 °F - 140 °F)

Humidity 90% or less (non-condensing)

Power Supply: 12 VDC±15%

Power Consumption:     Max. 5W

Weather Proof: IP66

IR Range: Up to 20m

Communication : Up the coax

Protocol: HIKVISION-C(Coaxitron)

Dimension: 86.7mm×81.6mm×226mm (3.41″×3.23″×8.67″)

Weight: Approx. 680g (1.5lb)
