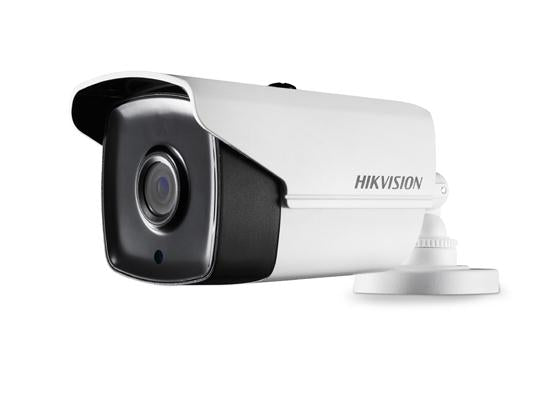

HIKVision 3MP EXIR Bullet Camera

Features

• 3 Megapixel high-performance CMOS
• Analog HD output, up to 3MP resolution
• True Day/Night
• OSD menu, DNR, Smart IR
• EXIR technology, up to 20/40/80m IR distance
• IP66 weatherproof
• Up the Coax(HIKVISION-C)

Camera

Image Sensor: | 3MP CMOS Image Sensor

Signal System: | PAL/NTSC

Effective Pixels: | 2052(H)*1536(V)

Min. Illumination: | 0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR

Shutter Time: | 1/25(1/30) s to 1/50,000 s

Lens: | 3.6mm, 6mm, 8mm, 12mm, 16mm optional

Angle of View: 67.8°(3.6mm), 44.6°(6mm), 31.6°(8mm), 20.2°(12mm), 15.8°(16mm)

Lens Mount: | M12

Adjustment Range: | Pan: 0° - 360°; Tilt:0° - 90°; Rotate: 0° - 360°

Day& Night: | IR cut filter with auto switch

Video Frame Rate: | 1920 ×1536@18fps

HD Video Output: | 1 Analog HD output

Synchronization: | Internal Synchronization

S/N Ratio: | More than 62 dB

Menu

D/N Mode: | Color/BW/SMART

Auto White Balance: | Auto/MWB

BLC: | Support

AGC: | Support

Language: | English/Chinese

Function: | Digital noise reduction, Mirror, SMART IR

General

Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F)

Humidity 90% or less (non-condensing)

Power Supply: | 12 VDC±15%

Power Consumption: | Max. 5W

Weather Proof: | IP66

IR Range: | Up to 80m

Communication : | Up the coax

Protocol: HIKVISION-C(Coaxitron)

Dimension: | 86.7mm×81.6mm×226mm (3.41″×3.23″×8.67″)

Weight: | Approx. 680g (1.5lb)
