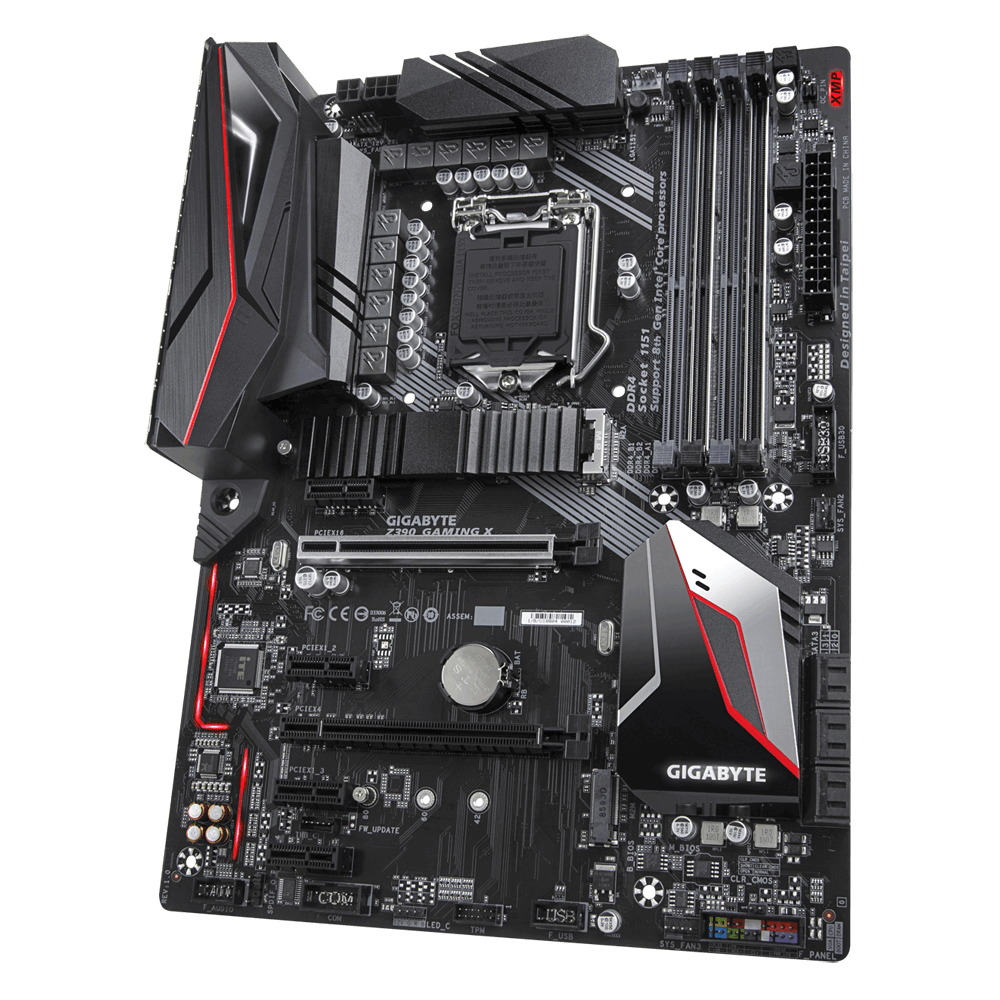

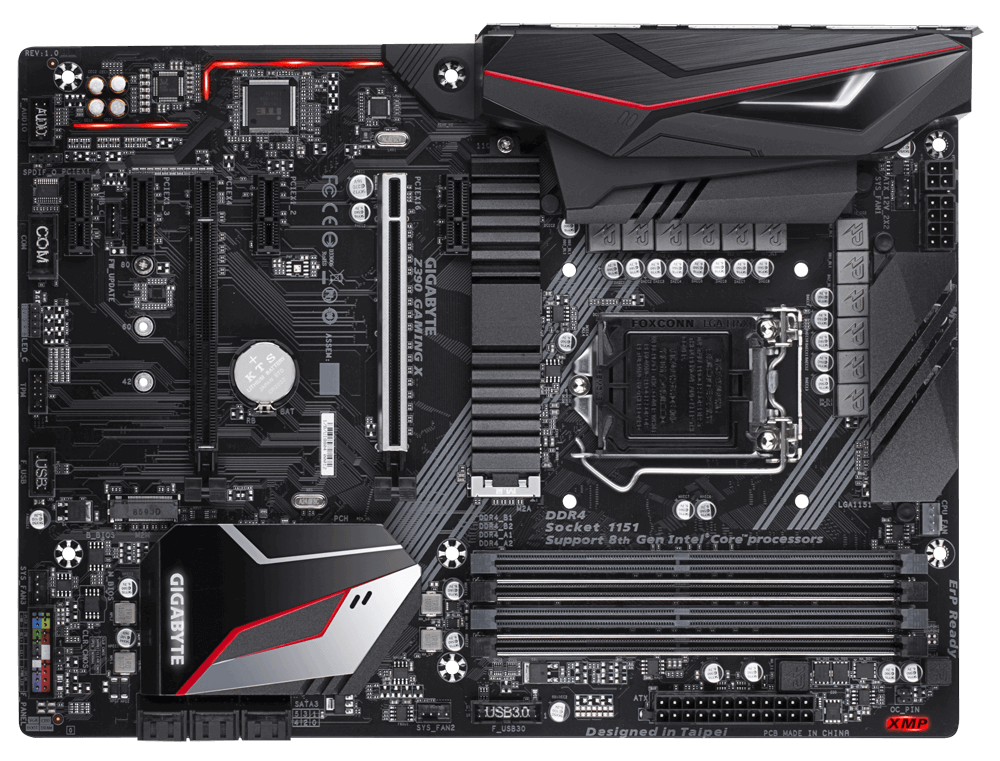

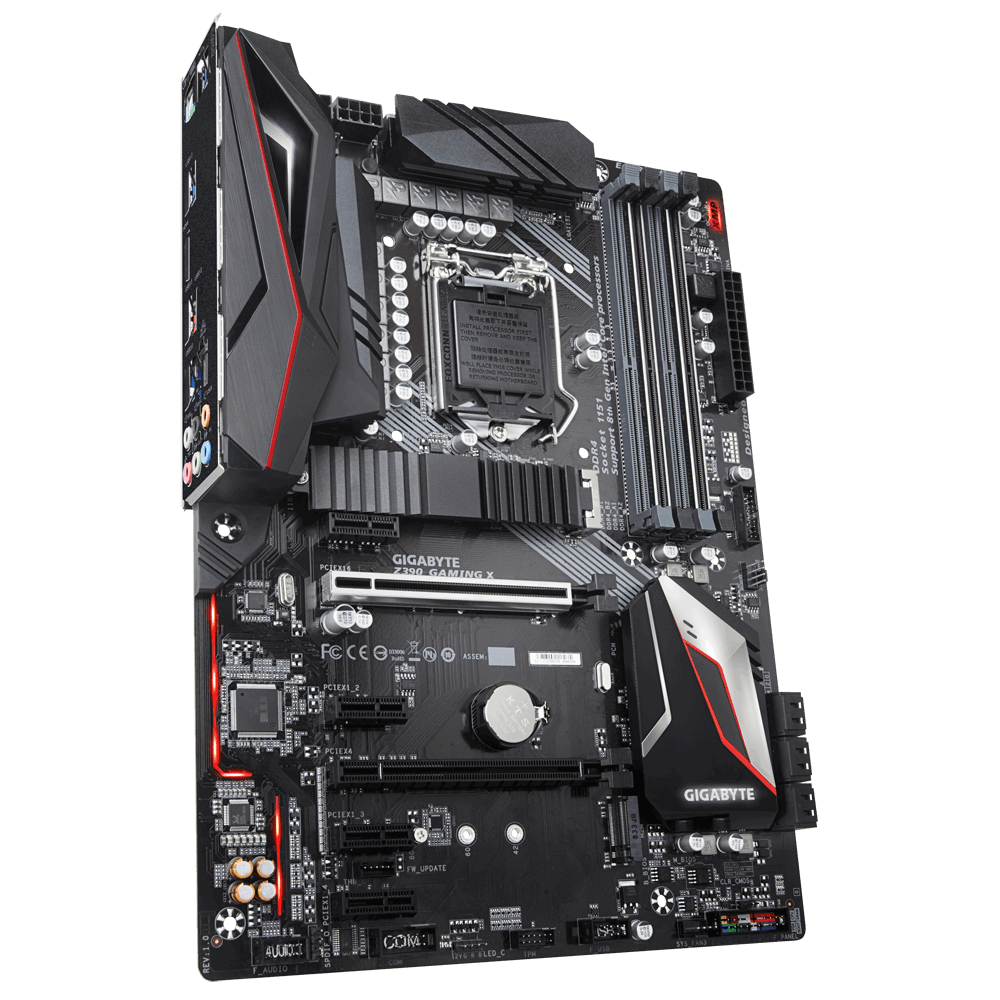

Gigabyte Z390 Gaming X Intel Z390 Ultra Durable Motherboard

Buy Gigabyte Z390 Gaming X Intel Z390 Ultra Durable Motherboard online at Low Price. Buy complete range of Printers on Vmart.pk, We Offer home delivery all over Pakistan.

• Supports 9th and 8th Gen Intel® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4
• New 10+2 Phases Digital PWM Design
• Dual Ultra-Fast M.2 with PCIe Gen3 X4 (1 with Thermal Guard) & SATA interface
• 2-Way CrossFire™ Multi-Graphics Support with PCIe Armor and Ultra Durable™ Design
• Intel® Native USB 3.1 Gen2 Type-A
• Intel® GbE LAN with cFosSpeed Internet Accelerator Software
• Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
• Support RGB Lighting Effect in Full Colors
• CEC 2019 Ready, Save Power With a Simple Click
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
• Intel® Optane™ Memory Ready

10*+2 Phases Digital VRM Design with Low RDS(on) MOSFET

Optimized for 8-Core Intel® Core™ CPU

GIGABYTE GAMING series motherboards use a 10*+2 phase PWM + Lower RDS(on) MOSFETs design to support the latest 8-Core Intel® Core™ CPUs by offering incredible precision in delivering power to the motherboard's most power- hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

With an integrated I/O shield, building an GIGABYTE Ultra Durable PC is even easier.

Support for DDR4 to 4266MHz and Beyond

GIGABYTE is offering a tested and proven platform that ensures proper compatibility to 4266MHz and beyond.

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

• VR requires more performance than Full HD graphics for a steady 90FPS or greater.
• Only Gaming PCs can provide the best VR experience.
• Recommended configuration for VR Gaming PC*
• Graphics Card: NVIDIA GTX 1060 / AMD RX 480 or greater, Compatible HDMI 1.4 video output
• CPU: Intel 8th Gen. Core i3 equivalent or greater
• Motherboard: AORUS/GIGABYTE Z390 motherboards
• Memory: 8GB RAM or greater
• USB Ports: 3x USB 3.0 ports plus 1x USB 2.0 port or greater
• OS: Windows 10 64-bit or newer

Intel® GbE LAN with cFosSpeed Internet Accelerator Networking

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

The Industry's Leading LAN Static-Electricity & Surge Protection

GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

GIGABYTE Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Support both PCIe NVMe + SATA SSDs

GIGABYTE Motherboards are built with dual M.2 slots. With a PCIe NVMe + SATA dual-mode design on both M.2 slots. This configuration is designed for flexibility and adaptation to fit most users' and gamers' requests.

The Z390 Platform supports Intel's latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.

Intel's native USB 3.1 host controller provides USB 3.1 ports with speeds up to 10Gbps. Available over the USB Type-A connector, the USB 3.1 is much improved with twice the bandwidth compared to its previous generation as well as backwards compatibility with USB2.0 and 3.0.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

• 4 Fan / Water Pump Connectors
• 6 Temperature Sensors
• All Fan Pin Headers Upgraded to Hybrid Fan Headers
• Interoperable Fans and Sensors
• Intuitive UI for Fan Control
• Intelligent Fan Control Design

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.

Industry Leading Ultra Durable™ PCIe Armor

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

GIGABYTE exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.

• Z390 motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors for offering stable power supply while CPU overloading.
• Solid Pin Power connector advantages
• Larger contact area for electricity
• More metal quantity to sustain higher power and generated heat
• Ultra durable and longer lifespan
• Diagnostic LEDs
• Hardware Troubleshooting at a Glance

Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to quickly diagnose which major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

DualBIOS™ Design

GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

CEC 2019 Ready

Save power with a simple click

CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.

• CPU
• Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
• L3 cache varies with CPU
• (Please refer "CPU Support List" for more information.)
• Chipset
• Intel® Z390 Express Chipset
• Memory
• 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
• Dual channel memory architecture
• Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• (Please refer "Memory Support List" for more information.)
• Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
• * Support for HDMI 1.4 version and HDCP 2.2.
• Maximum shared memory of 1 GB
• Audio
• Realtek® ALC892 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out
• LAN
• Intel® GbE LAN chip (10/100/1000 Mbit)
• Expansion Slots
• 1 x PCI Express x16 slot, running at x16 (PCIEX16)
• * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• 1 x PCI Express x16 slot, running at x4 (PCIEX4)
• 4 x PCI Express x1 slots
• (All of the PCI Express slots conform to PCI Express 3.0 standard.)
• Storage Interface Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M)
• 6 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, RAID 5, and RAID 10
• * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
• Intel® Optane™ Memory Ready
• Multi-Graphics Technology
• Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
• USB Chipset:
• 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
• 7 x USB 3.1 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header)
• 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 1 x RGB LED strip header
• 6 x SATA 6Gb/s connectors
• 2 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB 3.1 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x Thunderbolt™ add-in card connector
• 1 x serial port header
• 1 x Clear CMOS jumper

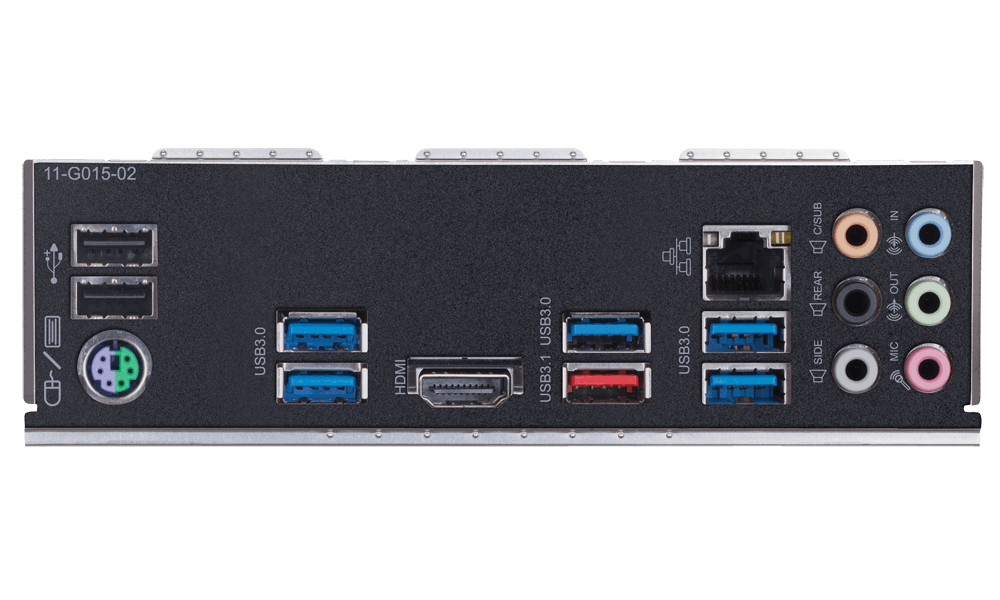

• Back Panel Connectors
• 1 x PS/2 keyboard/mouse port
• 1 x HDMI port
• 1 x USB 3.1 Gen 2 Type-A port (red)
• 5 x USB 3.1 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 6 x audio jacks
• I/O Controller
• iTE® I/O Controller Chip
• H/W Monitoring
• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
• * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
• 2 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• Support for DualBIOS™
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
• Support for APP Center
• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• 3D OSD
• @BIOS
• Ambient LED
• AutoGreen
• Cloud Station
• EasyTune
• Easy RAID
• Fast Boot
• Game Boost
• ON/OFF Charge
• Platform Power Management
• Smart Backup
• Smart Keyboard
• Smart TimeLock
• Smart HUD
• Smart Survey
• System Information Viewer
• USB Blocker
• V-Tuner
• Support for Q-Flash
• Support for Xpress Install
• Bundle Software
• Norton® Internet Security (OEM version)
• cFosSpeed
• Operating System
• Support for Windows 10 64-bit
• Form Factor
• ATX Form Factor; 30.5cm x 22.5cm
• Remark
• Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
• Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
