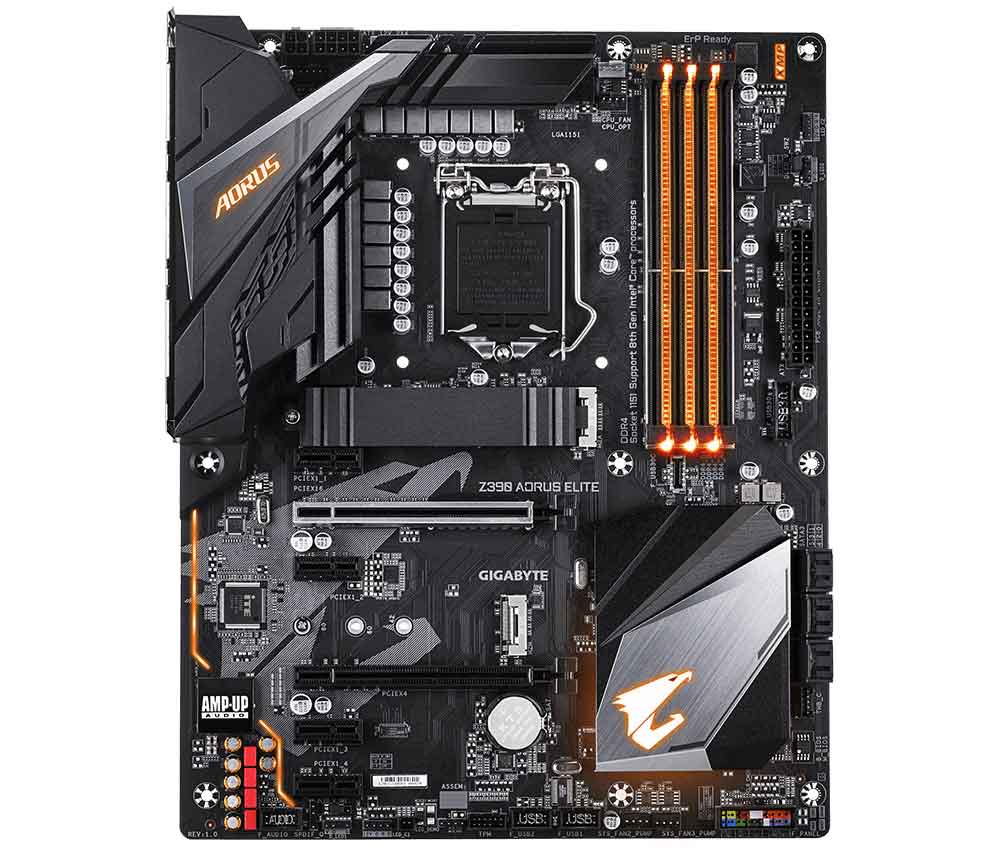

Gigabyte Z390 Aorus Elite Intel Z390 Ultra Durable Motherboard

Buy Gigabyte Z390 Aorus Elite Intel Z390 Ultra Durable Motherboard online at Low Price. Buy complete range of Motherboards on Vmart.pk, We Offer home delivery all over Pakistan.

• Supports 9th and 8th Gen Intel® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Intel® Optane™ Memory Ready
• 12+1 Phases Digital VRM Solution with DrMOS
• Advanced Thermal Design with Screw Mounted Heatsinks
• ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
• Intel® Gigabit LAN with cFosSpeed
• RGB FUSION with Multi-Zone LED Light Show Design, Supports Addressable LED & RGB LED Strips
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Front USB 3.1 Gen 1 Type-C™ Header
• Dual Ultra-Fast M.2 with PCIe Gen3 x4 interface
• CEC 2019 Ready, Save Power With a Simple Click

The AORUS Core is inspired by the falcon’s aggressive nature and hunting prowess. The falcon uses its razor sharp talons to swiftly strike down its prey with exceptional efficiency and precision, qualities that are exemplified in the fine details of AORUS design.

12*+1 Phases Digital Power Design

Z390 AORUS ELITE motherboard uses an 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 8-core 9th Gen Intel® Core™ processors.

AORUS is offering a tested and proven platform that ensures proper compatibility to 4266MHz and beyond.

Z390 AORUS ELITE uses high performance thermal design with screwed mounted heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.

With an integrated I/O shield, building an GIGABYTE Ultra Durable PC is even easier.

AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

GIGABYTE Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

• ALC1220-VB Immersive Gaming ViBes
• All New Realtek High-End HD Audio Codec
• ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.
• With the new VB series audio controller stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

Microphone input with higher front dynamic range allows gamers to hear more clearly. No more misunderstandings, no more confusing GO! GO! GO! as NO! NO! NO!

The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AOURS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

The Z390 AORUS Platform supports Intel's latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Equipped with next generation connectivity AORUS Gaming Motherboards already support the chassis of the future. The onboard USB Type-C™ header for USB 3.1 Gen1 makes access convenient when connecting a USB 3.1 Gen1 drive or charging your new mobile device.

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

• 5 Fan Pin Headers
• 6 Temperature Sensors
• All Hybrid Fan Headers
• Interoperable Fans and Sensors
• Supports High Current Fans up to 24W(2AX12V) with Over-Current Protection
• Intuitive UI for Fan Control

• Solid Pin Power Connectors
• Z390 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading.
• Solid Pin Power connector advantages
• Larger contact area for electricity
• More metal quantity to sustain higher power and generated heat
• Ultra durable and longer lifespan
• Ultra Durable™ PCIe Armor
• Industry Leading Ultra Durable™ PCIe Armor
• The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference

CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.

• CPU
• Chipset
• Memory
• Onboard Graphics
• Audio
• LAN
• Expansion Slots
• Storage Interface
• Multi-Graphics Technology
• USB
• Internal I/O Connectors
• Back Panel Connectors
• I/O Controller
• H/W Monitoring
• BIOS
• Unique Features
• Bundle Software
• Operating System
• Form Factor
• Remark
• Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
• L3 cache varies with CPU
• (Please refer "CPU Support List" for more information.)
• Intel® Z390 Express Chipset
• 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
• Dual channel memory architecture
• Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• (Please refer "Memory Support List" for more information.)
• Integrated Graphics Processor-Intel® HD Graphics support:
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
• * Support for HDMI 1.4 version and HDCP 2.2.
• Maximum shared memory of 1 GB
• Realtek® ALC1220-VB codec
• * The back panel line out jack supports DSD audio.
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out
• Intel® GbE LAN chip (10/100/1000 Mbit)
• 1 x PCI Express x16 slot, running at x16 (PCIEX16)
• * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• 1 x PCI Express x16 slot, running at x4 (PCIEX4)
• 4 x PCI Express x1 slots
• * The PCIEX4 slot shares bandwidth with the PCIEX1_3 slot. When the PCIEX1_3 slot is populated, the PCIEX4 slot operates at up to x2 mode.
• (All of the PCI Express slots conform to PCI Express 3.0 standard.)
• Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M)
• 6 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, RAID 5, and RAID 10
• * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
• Intel® Optane™ Memory Ready
• Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
• Chipset:
• 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
• 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header
• 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Chipset+2 USB 2.0 Hubs:
• 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 2 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 3 x system fan/water cooling pump headers
• 2 x digital LED strip headers
• 2 x digital LED strip power select jumpers
• 2 x RGB LED strip headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
• 1 x USB 3.1 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x S/PDIF Out header
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x Thunderbolt™ add-in card connector
• 1 x Clear CMOS jumper
• 4 x USB 2.0/1.1 ports
• 1 x HDMI port
• 4 x USB 3.1 Gen 1 ports
• 2 x USB 3.1 Gen 2 Type-A ports (red)
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 5 x audio jacks
• iTE® I/O Controller Chip
• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Overheating warning
• Fan fail warning
• Fan speed control
• * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• 2 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• Support for DualBIOS™
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Support for APP Center
• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• 3D OSD
• @BIOS
• AutoGreen
• Cloud Station
• EasyTune
• Easy RAID
• Fast Boot
• Game Boost
• ON/OFF Charge
• Platform Power Management
• RGB Fusion
• Smart Backup
• Smart Keyboard
• Smart TimeLock
• Smart HUD
• Smart Survey
• System Information Viewer
• USB Blocker
• V-Tuner
• Support for Q-Flash
• Support for Xpress Install
• Norton® Internet Security (OEM version)
• cFosSpeed
• Support for Windows 10 64-bit
• ATX Form Factor; 30.5cm x 24.4cm
• Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
• Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
