Gigabyte Z370 Aorus Gaming 5 Intel Z370 Ultra Durable Motherboard

Buy Gigabyte Z370 Aorus Gaming 5 Intel Z370 Ultra Durable Motherboard online at Low Price. Buy complete range of Motherboards on Vmart.pk, We Offer home delivery all over Pakistan.

• Supports 8th Gen Intel® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Intel® Optane™ Memory Ready
• ASMedia 3142 USB 3.1 Gen 2 with USB Type-C™ and Type-A
• Front USB 3.1 Gen 1 Type-C™ Header
• Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design
• ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitors
• Sound BlasterX 720°, the top-of-the-line audio engine solution for 4K gaming and entertainment
• Intel GbE LAN Gaming Network with cFosSpeed Internet Accelerator Software
• Intel® 1x1 802.11ac Wireless – AC 3165
• RGB FUSION with Multi-Zone Digital LED Light Show design, support digital LED & RGB LED strips
• Swappable Overlay for Accent LED
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Triple Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
• USB DAC-UP 2 with Adjustable Voltage
• Anti-Sulfur Resistors Design
• Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
• Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
• APP Center Including EasyTune™ and Cloud Station™ Utilities

The AORUS Z370 enthusiast motherboards are faster and more powerful than any other motherboards the world has seen. With aggressively redesigned armor and thermal heatsinks, its performance capabilities and durability are second to none. Performance is no stranger to AORUS, with exotic cooling and an ability to be tuned to peak performance, AORUS motherboards will exceed expectations.

• Next Gen 8 th Gen Intel ® Core ™ Platform
• Exceptional Performance & Responsiveness
• Excellent multi-thread performance‒Up to 6 Processor Cores
• Enhanced core & memory overclocking
• Intel ® Turbo Boost Technology 2.0
• Impressive Media & Display
• Rec.2020 & HDR Support
• HEVC 10-bit HW decode/encode and HDCP2.2
• VP9 10-bit HW decode
• Premium UHD/4K content support
• Compelling Platform Integration
• Support for next generation Intel ® Optane™ memory

With AORUS Z370 Motherboards, RGB Fusion is even better with Digital LEDs.* RGB Fusion offers users the option to control onboard RGB and external RGBW/ Digital LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion on Z370 Series AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Gaming Motherboards will support either 5v or 12v digital LED lighting strips and up to 300 LED lights. RGB Fusion with Digital LEDs comes with 9 new patterns and various speed settings with more to come.

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.

Multi-light zones are equipped with high brightness RGB LEDs, namely the CPU, Memory, Armor, Audio, PCI-Express and Swappable Overlay for Accent LED. When it’s all set and done, your system will shine like never before.

AORUS brings even more color and life to your system with an Accent LED Overlay. This overlay complements the RGB Fusion technology in AORUS Motherboards adding more flare and style to your gaming machine. With the swappable overlay users can utilize different patterns and designs to make their system their own.

Design your very own Accent LED Overlay with a 3D printer. Click here to download dimensions and 3D files for the Accent LED Overlay.

ALC1220 120dB SNR HD Audio with Smart Headphone Amp

ALC1220 120dB SNR HD Audio

The ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.

Smart Headphone AMP

Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamics—preventing issues such as low volume and distortion.

USB DAC-UP 2 Adjustable Voltage USB Port with Dedicated Power Design

AORUS improves upon USB DAC-UP technologies with USB DAC-UP 2.

USB DAC-UP 2 continues to provide clean, isolated and low-noise power while adding the ability to compensate for voltage drop.

Virtual reality pioneers and gamers alike can rest assured that their expensive accessories and peripherals will not encounter connectivity or power deficiency issues with the AORUS USB DAC-UP 2. With Gaming Gear drawing large amounts of power and having firm specification requirements USB DAC-UP 2 is up for the challenge.

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

• 9 Temperature Sensors
• 8 Fan/Water Pump Connectors
• All Fan Pin Headers Upgraded to Hybrid Fan Headers
• Interoperable Fans and Sensors
• Intuitive UI for Fan Control
• Hybrid Fan Pin Headers & Temperature Sensors

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.

All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

Includes support for one High-Current Pump up to 3 Amps with built-in overcurrent protection—a must for high-end high current fans.

Built-in Advanced Performance Tuning IC

Turbo B-Clock Tuning IC in the AORUS Z370 series motherboards enables overclockers to have the ability to change their BCLK frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.

*Turbo B-Clock overclocking range may vary according to CPU, chipset and used devices capabilities.

Support for DDR4 XMP Up to 4133MHz and Beyond*

AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4133MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.

Broad DDR4 Compatibility with Support List of 1000+ DDR4 Validated！

AORUS partners very closely with memory vendors from around the world to ensure that modules offered by popular memory brands are compatible with AORUS Motherboards. AORUS has verified over 1000+ different modules to ensure performance in a AORUS built system.

AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

Triple NVMe M.2 PCIe SSDs in RAID 0 Support

Extreme Performance with Gen3 x4 NVMe PCIe SSDs

AORUS' Z370 motherboards offer the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design which can be configured in RAID for record speeds of up to 3551 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.

The AORUS Z370 Platform is the first enthusiast platform that supports Intel’s latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.

Intel ® GbE LAN with cFosSpeed Internet Accelerator + Intel 802.11ac WiFi

Intel ® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Designed and engineered in co-operation with EK Water Blocks, this monoblock uses the award winning EK-Supremacy EVO cooling engine to ensure the best possible CPU cooling. It directly cools the CPU and power regulation (MOSFET) module as water flows directly over all critical areas. It is a very high flow water block that can be easily used with a system using weaker water pumps.

Saving energy, Environmental Friendly

The Z370 Motherboards are now ready for CEC 2019! The California Energy Commission(CEC) regulation measures PC systems’ level power consumption. The Z370 Motherboards with selected key components fulfill CEC 2019 power saving requirements.

• CPU
• Chipset
• Memory
• Onboard Graphics
• Audio
• LAN
• Wireless Communication module
• Expansion Slots
• Storage Interface
• Multi-Graphics Technology
• USB
• Internal I/O Connectors

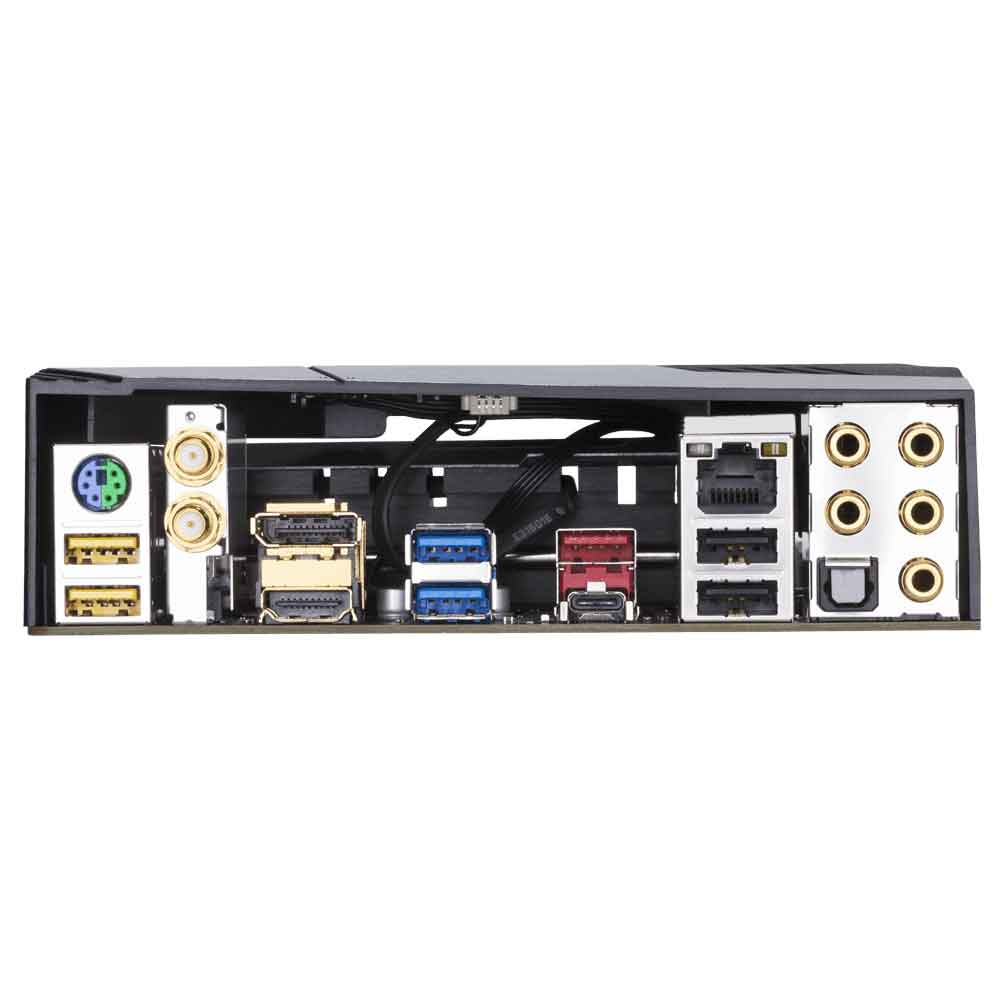

• Back Panel Connectors
• I/O Controller
• H/W Monitoring
• BIOS
• Unique Features
• Bundle Software
• Operating System
• Form Factor
• Remark
• Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors in the LGA1151 package
• L3 cache varies with CPU
• (Please refer "CPU Support List" for more information.)
• Intel® Z370 Express Chipset
• 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
• Dual channel memory architecture
• Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• (Please refer "Memory Support List" for more information.)
• Integrated Graphics Processor-Intel® HD Graphics support:
• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
• * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
• * Support for HDMI 1.4 version and HDCP 2.2.
• Maximum shared memory of 1 GB
• Realtek® ALC1220 codec
• Support for Sound BlasterX 720°
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out
• Intel® GbE LAN chip (10/100/1000 Mbit)
• Intel® Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
• BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
• Support for 11ac wireless standard and up to 433 Mbps data rate
• * Actual data rate may vary depending on environment and equipment.
• 1 x PCI Express x16 slot, running at x16 (PCIEX16)
• * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• 1 x PCI Express x16 slot, running at x8 (PCIEX8)
• * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
• 1 x PCI Express x16 slot, running at x4 (PCIEX4)
• * The PCIEX4 slot shares bandwidth with the M2P_32G connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_32G connector.
• 3 x PCI Express x1 slots
• * The PCIEX1_3 slot shares bandwidth with the SATA3 1 connector. When the PCIEX1_3 slot is populated, the SATA 3 1 connector becomes unavailable.
• (All of the PCI Express slots conform to PCI Express 3.0 standard.)
• Chipset:
• 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G, M2A_32G)
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P_32G)
• 6 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, RAID 5, and RAID 10
• * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
• Intel® Optane™ Memory Ready
• Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
• Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies
• Chipset+ASMedia® USB 3.1 Gen 2 Controller:
• 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
• 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
• Chipset:
• 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header
• 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 4 x system fan headers
• 1 x 3 Amp fan/water cooling pump header
• 1 x system fan/water cooling pump header
• 2 x digital LED strip headers
• 2 x digital LED strip power select jumpers
• 2 x RGB (RGBW) LED strip headers
• 3 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
• 1 x USB 3.1 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x Thunderbolt™ add-in card connector
• 1 x Clear CMOS jumper
• 2 x temperature sensor headers
• 1 x PS/2 keyboard/mouse port
• 2 x SMA antenna connectors (2T2R)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
• 1 x USB 3.1 Gen 2 Type-A port (red)
• 4 x USB 3.1 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
• iTE® I/O Controller Chip
• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Overheating warning
• Fan fail warning
• Fan speed control
• * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• 2 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• Support for DualBIOS™
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Support for APP Center
• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• 3D OSD
• @BIOS
• AutoGreen
• BIOS Setup
• Color Temperature
• Cloud Station
• EasyTune
• Easy RAID
• Fast Boot
• Game Boost
• ON/OFF Charge
• Platform Power Management
• RGB Fusion
• Smart Backup
• Smart Keyboard
• Smart TimeLock
• Smart HUD
• System Information Viewer
• USB Blocker
• USB DAC-UP 2
• V-Tuner
• Support for Q-Flash
• Support for Xpress Install
• Norton® Internet Security (OEM version)
• XSplit Gamecaster + Broadcaster (12 months license)
• cFosSpeed
• Support for Windows 10 64-bit
• ATX Form Factor; 30.5cm x 24.4cm
• Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
• Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
