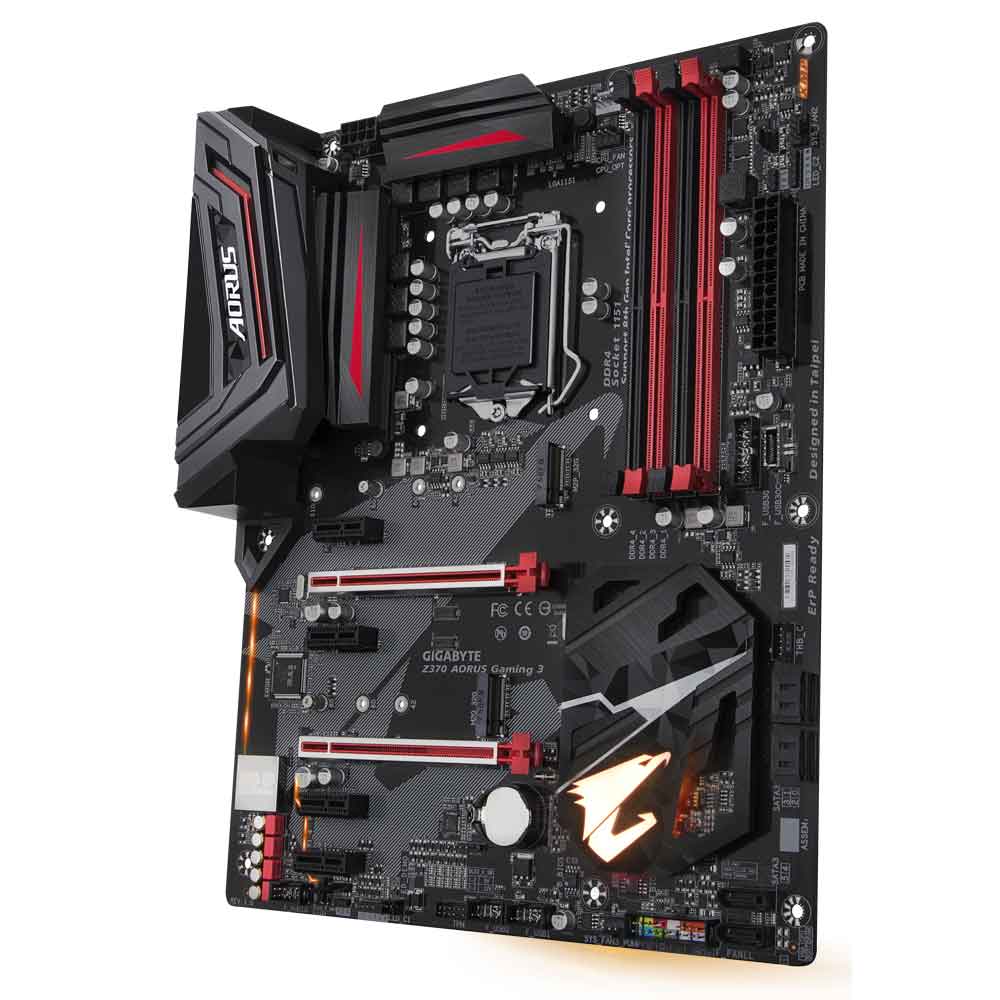

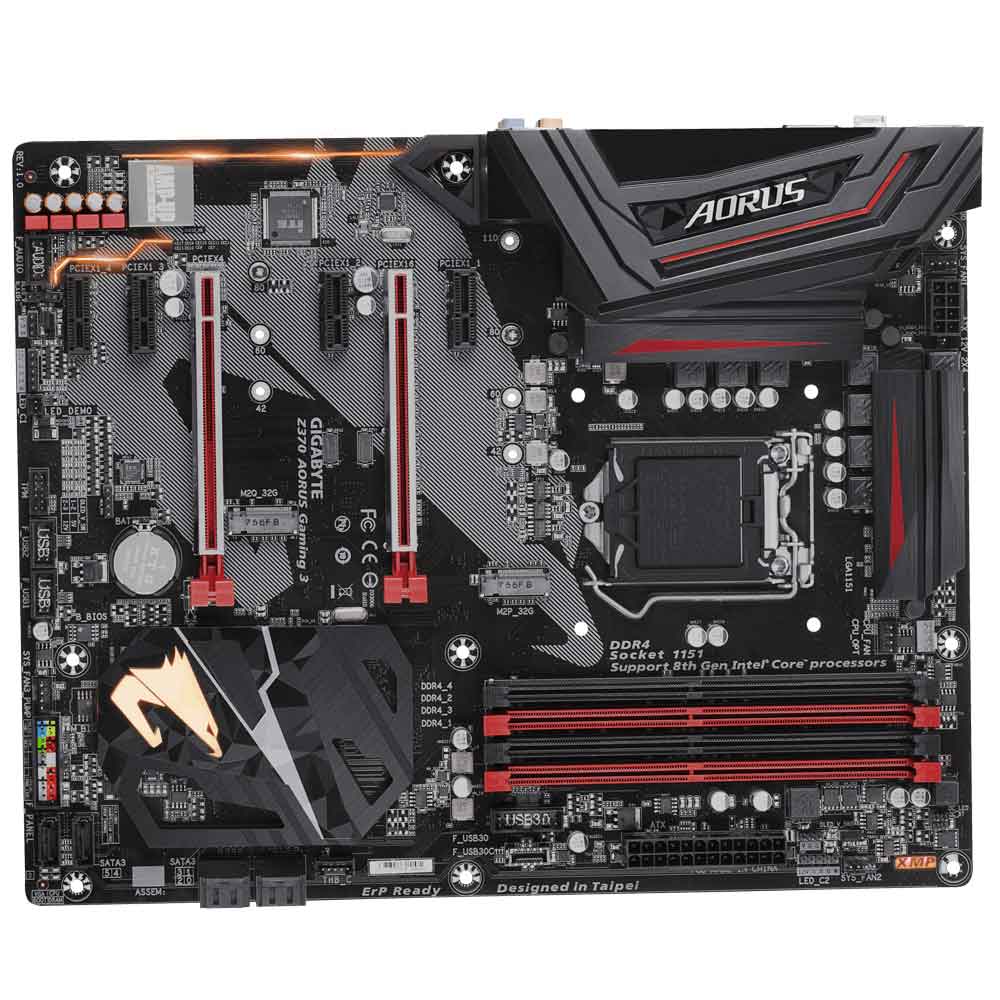

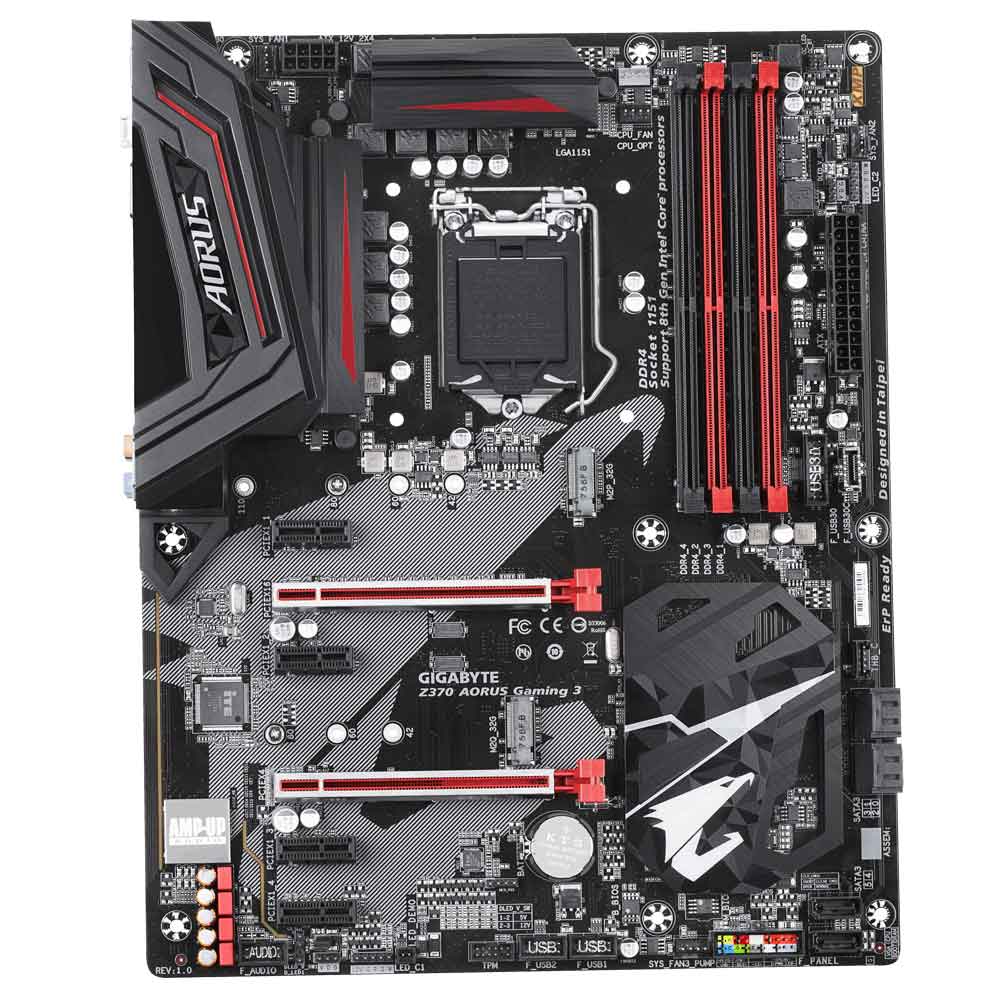

Gigabyte Z370 Aorus Gaming 3 Intel Z370 Ultra Durable Motherboard

Buy Gigabyte Z370 Aorus Gaming 3 Intel Z370 Ultra Durable Motherboard online at Low Price. Buy complete range of Motherboards on Vmart.pk, We Offer home delivery all over Pakistan.

• Supports 8th Gen Intel® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Intel® Optane™ Memory Ready
• ASMedia 3142 USB 3.1 Gen 2 with USB Type-C™ and Type-A
• Front USB 3.1 Gen 1 Type-C™ Header
• Multi-Way Graphics Support with PCIe Armor and Ultra Durable™ Design
• ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitors
• Killer™ E2500 Gaming Network
• RGB FUSION with Multi-Zone Digital LED Light Show design, support digital LED RGB LED strips
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Dual Ultra-Fast M.2 with PCIe Gen3 x4 SATA interface
• Anti-Sulfur Resistors Design
• Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
• Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
• APP Center Including EasyTune™ and Cloud Station™ Utilities

The AORUS Z370 enthusiast motherboards are faster and more powerful than any other motherboards the world has seen. With aggressively redesigned armor and thermal heatsinks, its performance capabilities and durability are second to none. Performance is no stranger to AORUS, with exotic cooling and an ability to be tuned to peak performance, AORUS motherboards will exceed expectations.

• Next Gen 8th Gen Intel® Core™ Platform
• Exceptional Performance Responsiveness
• Excellent multi-thread performance‒Up to 6 Processor Cores
• Enhanced core memory overclocking
• Intel® Turbo Boost Technology 2.0
• Impressive Media Display
• Rec.2020 HDR Support
• HEVC 10-bit HW decode/encode and HDCP2.2
• VP9 10-bit HW decode
• Premium UHD/4K content support
• Compelling Platform Integration
• Support for next generation Intel® Optane™ memory

RGB Fusion with Digital LEDs

With AORUS Z370 Motherboards, RGB Fusion is even better with Digital LEDs.* RGB Fusion offers users the option to control onboard RGB and external RGBW/ Digital LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion on Z370 Series AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations. AORUS Gaming Motherboards will support either 5v or 12v digital LED lighting strips and up to 300 LED lights. RGB Fusion with Digital LEDs comes with 9 new patterns and various speed settings with more to come.

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.

Creative® Sound Core3D™ Quad-Core Audio Processor

Combining the world's first Quad-Core Audio Processor, Creative Sound Core3D, Plus Advanced Creative SBX Pro Studio™ Audio Suite.

+ Harnessing the power of a Dedicated Audio Processor to offload workload from CPU.

+ Total solution from Creative (Hardware + Software).

+ Richer overall audio experience.

SBX Pro Studio™ suite of audio playback technologies deliver a new level of audio immersion. Realistic surround sound, the ability to clearly hear specific sounds in a gaming environment are just a few elements of SBX Pro Studio that enhances the overall experience, be it movies, games or music.

The AORUS Z370 motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and audio grade Fine Gold capacitors. While the Fine Gold capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

• 6 Temperature Sensors
• 5 Fan/Water Pump Connectors
• All Fan Pin Headers Upgraded to Hybrid Fan Headers
• Interoperable Fans and Sensors
• Intuitive UI for Fan Control

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.

All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.

• VR requires more performance than Full HD graphics for a steady 90FPS or greater.
• Only Gaming PCs can provide the best VR experience.
• Recommended configuration for VR Gaming PC*
• Graphics Card: NVIDIA GTX 1060 / AMD RX 480 or greater, Compatible HDMI 1.4 video output.
• CPU: Intel i5 equivalent or greater
• Motherboard: GIGABYTE Z370 motherboards
• Memory: 8GB RAM or greater
• USB Ports: 3x USB 3.0 ports plus 1x USB 2.0 port or greater
• OS: Windows 10 64-bit or newer

Dual PCIe Gen3 x4 M.2

AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

The AORUS Z370 Platform is the first enthusiast platform that supports Intel’s latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.

Intel® GbE LAN with cFosSpeed Internet Accelerator + Intel 802.11ac WiFi

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

The Industry's Leading Static-Electricity Surge Protection

AORUS Extreme USB 3.1 Motherboards

The ASMEDIA 3142 USB 3.1 controller utilizes 2 PCIe Gen3 lanes, offering a total of up to 16 Gb/s, which means you have extra bandwidth to take full control of the 10 Gb/s USB 3.1 ports. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Saving energy, Environmental Friendly

The Z370 Motherboards are now ready for CEC 2019! The California Energy Commission (CEC) regulation measures PC systems’ level power consumption. The Z370 Motherboards with selected key components fulfill CEC 2019 power saving requirements.

• CPU
• Chipset
• Memory
• Onboard Graphics
• Audio
• LAN
• Expansion Slots
• Storage Interface
• Multi-Graphics Technology
• USB
• Internal I/O Connectors
• Back Panel Connectors
• I/O Controller
• H/W Monitoring
• BIOS
• Unique Features
• Bundle Software
• Operating System
• Form Factor
• Remark
• Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors in the LGA1151 package
• L3 cache varies with CPU
• (Please refer "CPU Support List" for more information.)
• Intel® Z370 Express Chipset
• 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
• Dual channel memory architecture
• Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• (Please refer "Memory Support List" for more information.)
• Integrated Graphics Processor-Intel® HD Graphics support:
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
• * Support for HDMI 1.4 version and HDCP 2.2.
• Maximum shared memory of 1 GB
• Realtek® ALC1220 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out
• Rivet Networks Killer™ E2500 LAN chip (10/100/1000 Mbit)
• 1 x PCI Express x16 slot, running at x16 (PCIEX16)
• * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• 1 x PCI Express x16 slot, running at x4 (PCIEX4)
• 4 x PCI Express x1 slots
• * The PCIEX4 slot shares bandwidth with the PCIEX1_2, 3, 4 slots. The PCIEX4 slot operates at up to x1 mode when the PCIEX1_2, 3, or 4 slot is populated.
• (All of the PCI Express slots conform to PCI Express 3.0 standard.)
• Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2Q_32G)
• 6 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, RAID 5, and RAID 10
• *Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
• Intel® Optane™ Memory Ready
• Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
• Chipset+ASMedia® USB 3.1 Gen 2 Controller:
• 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
• 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
• Chipset:
• 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header
• 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 2 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 2 x system fan headers
• 1 x system fan/water cooling pump header
• 2 x digital LED strip headers
• 2 x digital LED strip power select jumpers
• 2 x RGB (RGBW) LED strip headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C™ header, with USB 3.1 Gen 1 support
• 1 x USB 3.1 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x S/PDIF Out header
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x Thunderbolt™ add-in card connector
• 1 x chassis OC LED header
• 1 x chassis OC button header
• 1 x Clear CMOS jumper

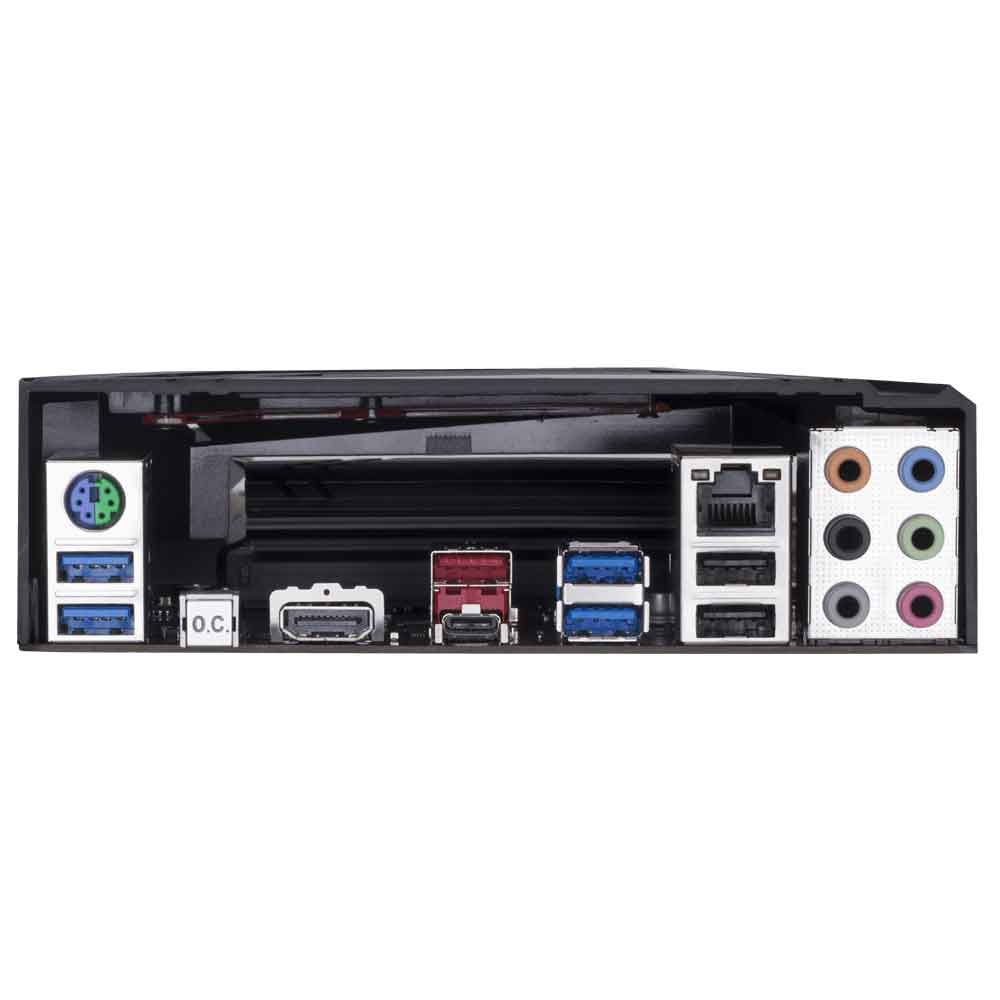

• 1 x PS/2 keyboard/mouse port
• 1 x OCSW button
• 1 x HDMI port
• 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
• 1 x USB 3.1 Gen 2 Type-A port (red)
• 4 x USB 3.1 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
• iTE® I/O Controller Chip
• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Overheating warning
• Fan fail warning
• Fan speed control
• * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• 2 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• Support for DualBIOS™
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Support for APP Center
• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• 3D OSD
• @BIOS
• AutoGreen
• BIOS Setup
• Color Temperature
• Cloud Station
• EasyTune
• Easy RAID
• Fast Boot
• Game Boost
• ON/OFF Charge
• Platform Power Management
• RGB Fusion
• Smart Backup
• Smart Keyboard
• Smart TimeLock
• Smart HUD
• System Information Viewer
• USB Blocker
• V-Tuner
• Support for Q-Flash
• Support for Xpress Install
• Norton® Internet Security (OEM version)
• Support for Windows 10 64-bit
• ATX Form Factor; 30.5cm x 24.4cm
• Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
• Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
