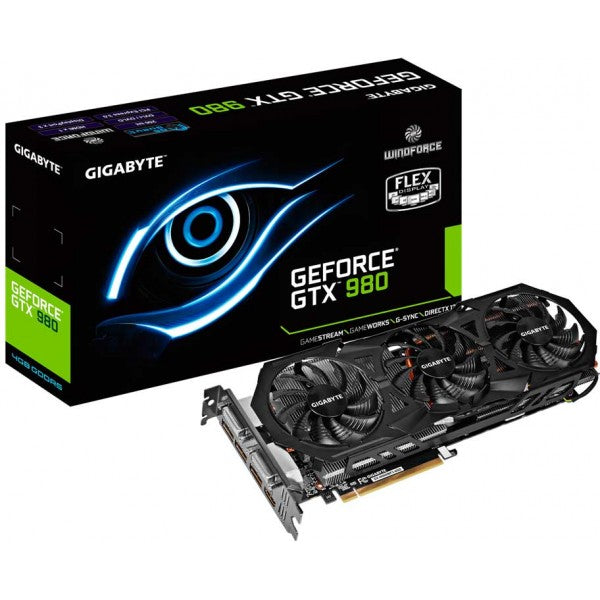

Gigabyte Nvidia GV-N980WF3-4GD GTX 980WF3 4GB GDDR5

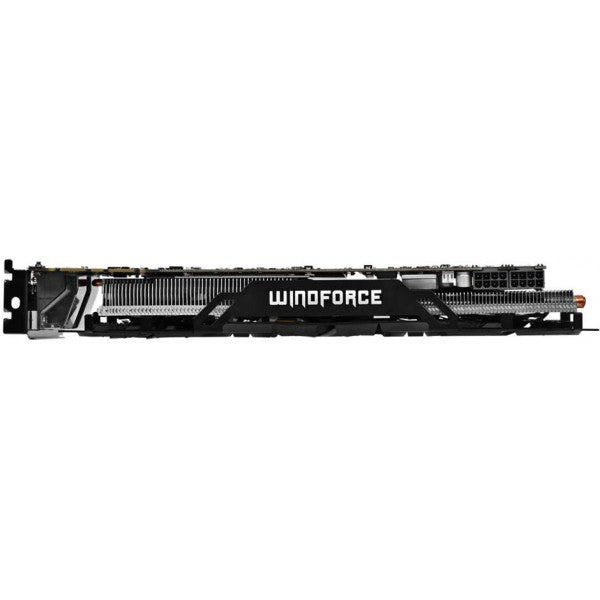

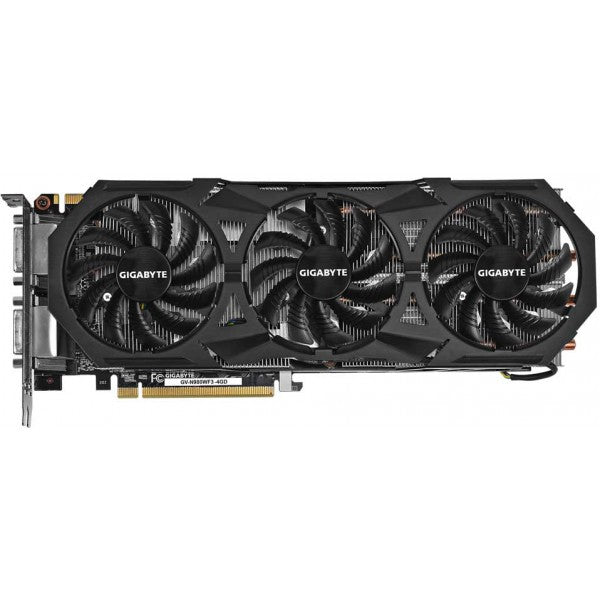

WINDFORCE 3X cooling system

WINDFORCE 3X cooling system is equipped with high performance pure copper heat-pipes which direct touch the GPU can strengthen the speed of heat dissipation. Besides, the air flow is effectively enhanced by the unique blade fan design, this not only increase the cooling capacity while reducing air turbulence but also results a lower noise level.

WINDFORCE 3X With Unique Blade Fan

WINDFORCE 3X cooling system is equipped with high performance pure cooper heat-pipes which direct touch the GPU can strengthen the speed of heat dissipation. Besides, the air flow is effectively enhanced by the unique blade fan design, this not only increase the cooling capacity while reducing air turbulence but also results a lower noise level.

Heat Pipe Direct Touch

Equipped with pure copper heat pipe direct touch (HDT) technology, delivering superior cooling capacity and heat transfer efficiency at an extremely low noise level.

Flex Display technology

GIGABYTE Flex display technology(patent-pending) can automatically detect any connected monitors and achieve multi-display gaming up to 4 monitors at the same time by using various output groups. Users could enjoy the best gaming experience in ultra HD resolution with extended flexibility in arranging monitor configurations and making future system upgrade extremely easy.

Ultra Durable VGA™

Lower GPU Temperature

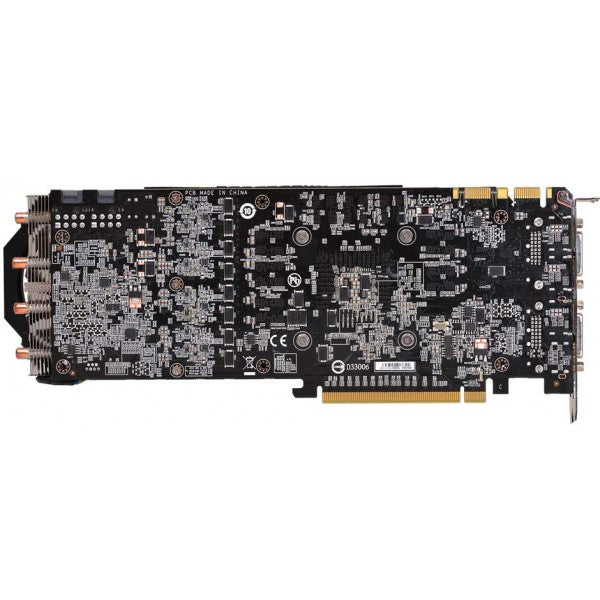

Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU and memory temperature by doubling the copper inner layer of PCB.

Better Overclocking Capability

Ultra Durable VGA board reduces voltage ripples in normal and transient state, thus effectively lowers noises and ensures higher overclocking capability.

Decrease Power Switching Loss

Ultra Durable VGA board allows more bandwidth for electron passage and reduces circuit impedance. The less circuit impedance, the more stable flow of current and can effectively im

OC GURU ll

Brand-new intuitive user interface helps you easily modify important settings and directly update driver and BIOS. Clock speeds, voltage, fan performance, and OSD setting can be monitored and tuned in real-time according to your own preference.

Key Features

• WINDFORCE 3X cooling system
• Flex Display Technology(patent-pending)
• Powered by NVIDIA GeForce GTX 980 GPU
• Integrated with industry's best 4GB GDDR5 memory 256-bit memory interface
• Features Dual-link DVI-I / Dual-link DVI-D / HDMI / DisplayPort*3
• BASE: 1127 MHz / BOOST: 1216 MHz
• System power supply requirement: 600W(with two 8-pin external power connectors)

Specifications

Chipset

GeForce GTX 980

Core Clock

Base / Boost clock?1127 / 1216 MHz

Memory Clock

7Gbps

Process Technology

28 nm

Memory Size

4 GB

Memory Bus

256 bit

Card Bus

PCI-E 3.0

Memory Type

GDDR5

DirectX

12

OpenGL

4.4

PCB Form

ATX

Digital max resolution

4096 X 2160

Analog max resolution

2048 x 1536

Multi-view

4

I/O Dual-link

Dual-link DVI-I / Dual-link DVI-D / HDMI / DisplayPort*3

Card size

H=36 L=299 W=114 mm

Power requirement

600W(with two 8-pin external power connectors)
