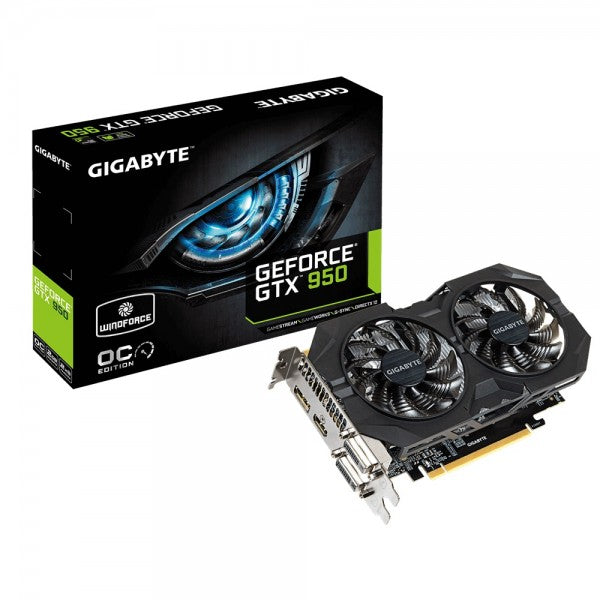

Gigabyte Nvidia GV-N950WF2OC-2GD - 2GB

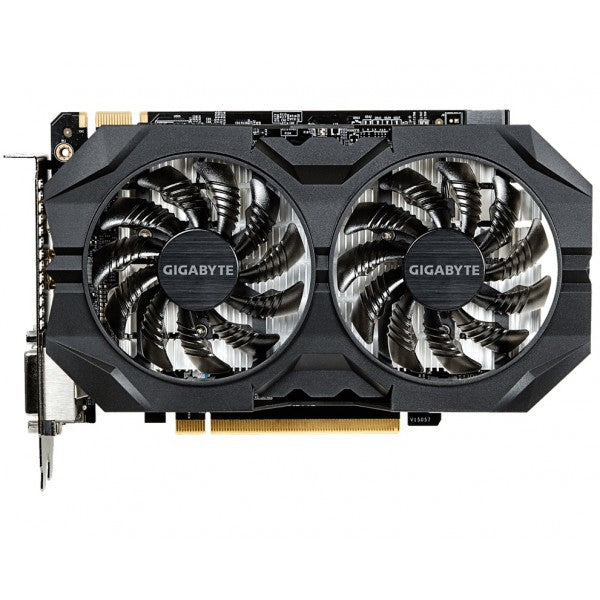

WINDFORCE 2X cooling system

GIGABYTE introduces WINDFORCE, the latest cooling technology that differentiates the brand’s graphics cards from the rest. GIGABYTE understands that a fan is crucial to the graphics card, so only the fan with the most efficiency is selected for WINDFORCE.

Unique Blade Fan Design

The airflow is spilt through the triangle design at the fan edge, and is guided smoothly through the fan by special 3D stripe curve design. At the same time, it effectively enhanced the cooling capacity while reducing air turbulence.

Ultra Durable 2

Ultra Cooling

Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

Low Power Loss

Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

Longer Life

Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

OC GURU ll

Brand-new intuitive user interface helps you easily modify important settings and directly update driver and BIOS. Clock speeds, voltage, fan performance, and OSD setting can be monitored and tuned in real-time according to your own preference.

Key Features

Specifications

Chipset

GeForce GTX 950

Core Clock

Base/Boost clock: 1102 / 1279 MHz (standard:1026/1190)

Memory Clock

6610 MHz

Process Technology

28 nm

Memory Size

2 GB

Memory Bus

128 bit

Card Bus

PCI-E 3.0

Memory Type

GDDR5

DirectX

12

OpenGL

4.5

PCB Form

ATX

Digital max resolution

4096 X 2160

Analog max resolution

2048 x 1536

Multi-view

4

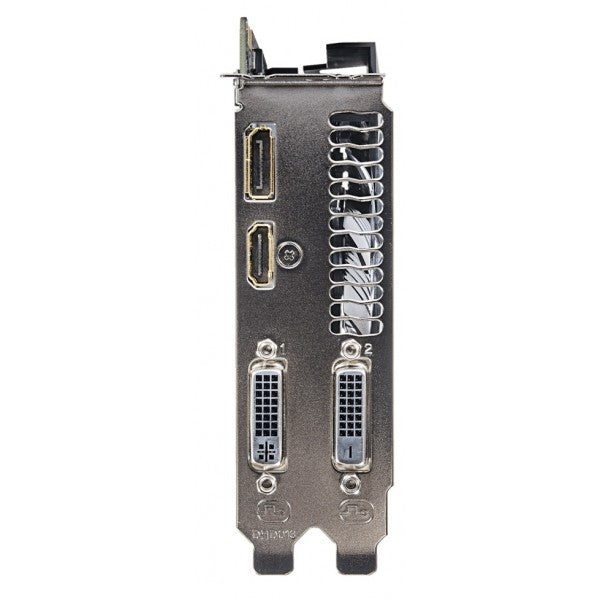

I/O Dual-link

Dual-link DVI-I / Dual-link DVI-D / HDMI / DisplayPort

Card size

H=36 L=195 W=121 mm

Power requirement

350W (with one 6-pin external power connector)
