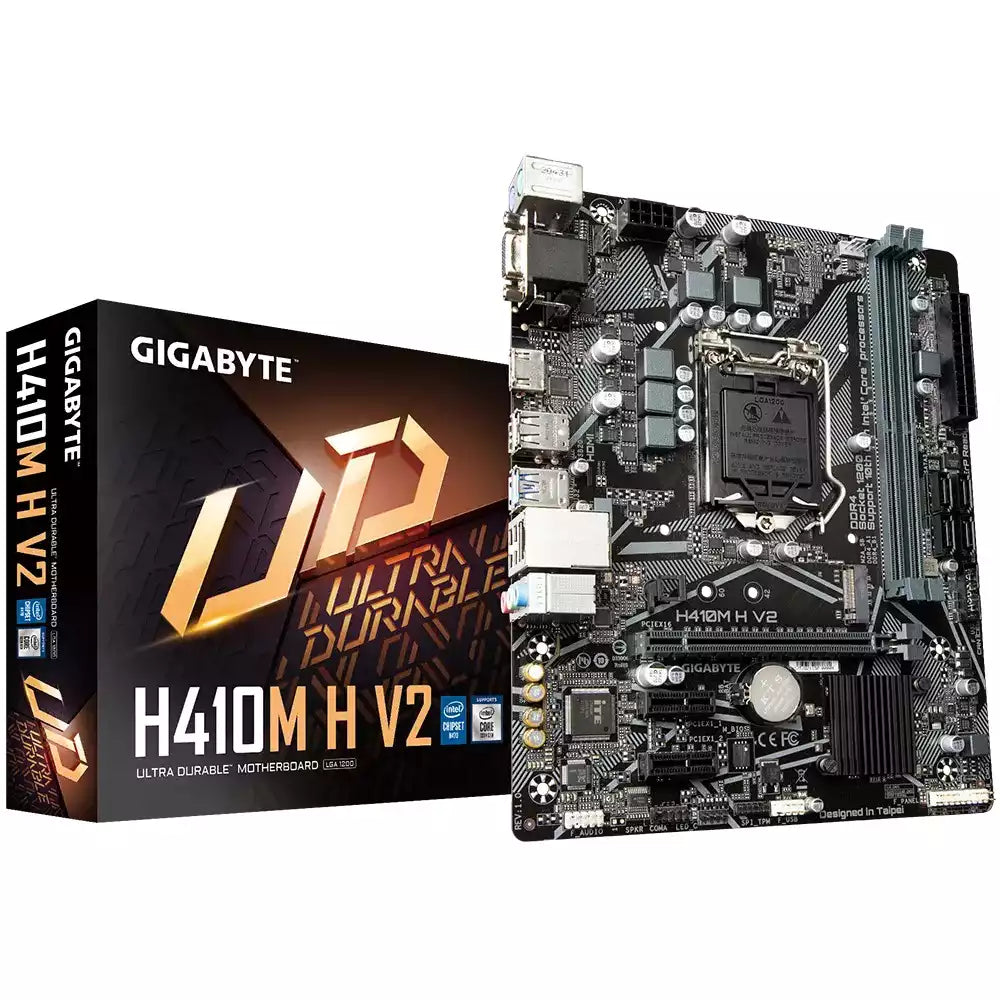

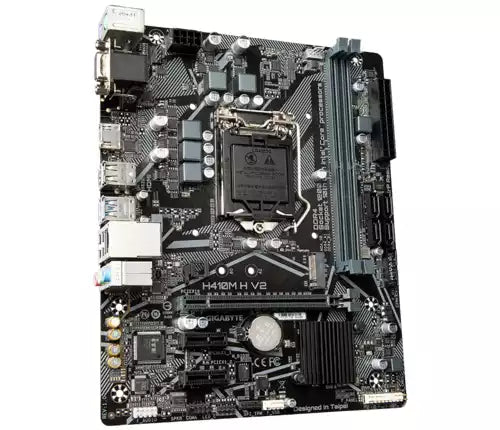

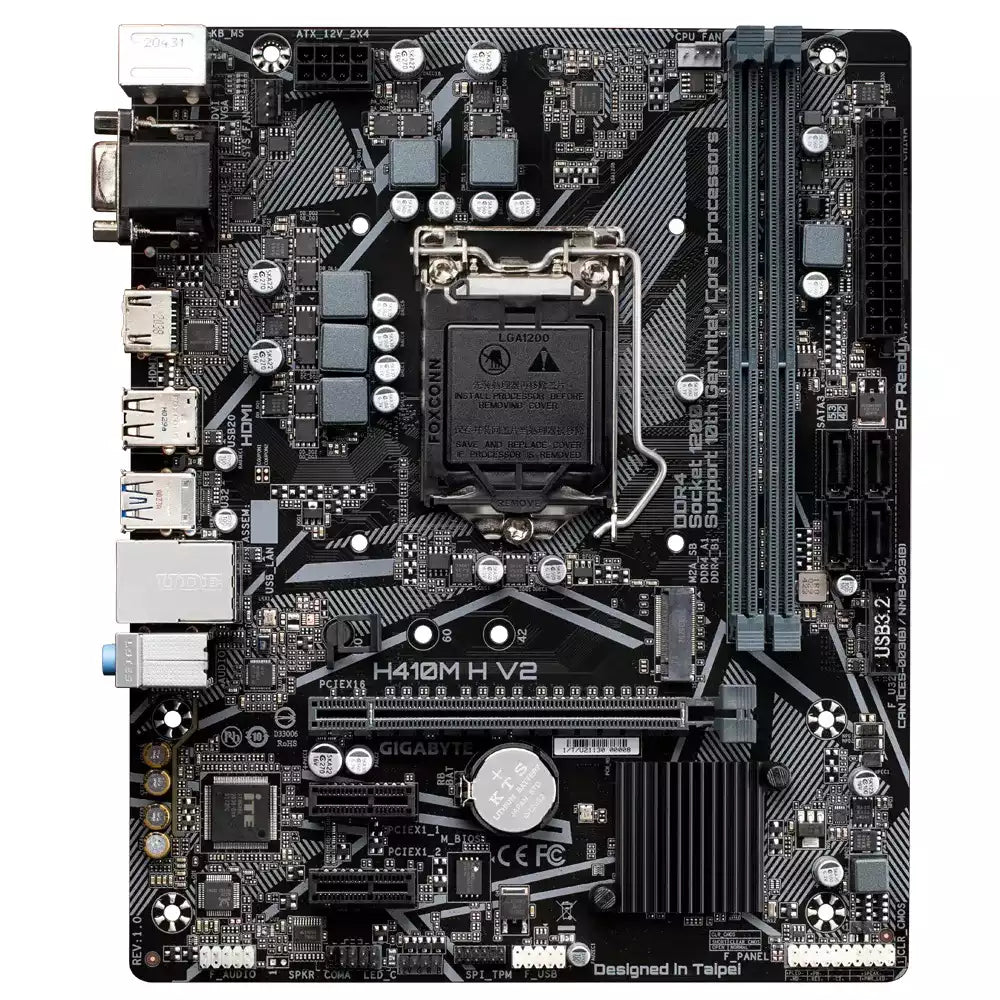

Gigabyte H410M H V2 Ultra Durable Motherboard

Buy Gigabyte H410M H V2 Ultra Durable Motherboard online at Rs. 26490. Buy complete range of Motherboards on Vmart.pk, We Offer home delivery all over Pakistan.

Supports 10th Gen Intel®Core™ Processors

Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

8-Channel HD Audio with High Quality Audio Capacitors

NVMe PCIe Gen3 x4 2280 M.2 Connector

Intel® GbE LAN with cFosSpeed Internet Accelerator Software

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

GIGABYTE APP Center, Simple and Easy Use

Anti-Sulfur Resistors Design

Model H410M H V2 (rev. 1.0)

CPU Support Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package

L3 cache varies with CPU

Socket 1200

Chipset Intel H470

Memory Support Intel® Core™ i9/i7 processors:

– Support for DDR4 2933/2666/2400/2133 MHz memory modules

Intel® Core™ i5/i3/Pentium®/Celeron® processors:

– Support for DDR4 2666/2400/2133 MHz memory modules2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Graphics Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

1 x HDMI ports, supporting a maximum resolution of 4096×2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.3.

Maximum shared memory of 512 MB

Multi Graphic Support None

Audio Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.

Expansion Slots 1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slots

(The PCI Express slots conform to PCI Express 3.0 standard.)

Supports up to ASPM L1.2 power management protocols.

Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel® Optane™ Memory Ready

M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

USB 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x RGB LED strip header

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

Back Panel Connectors 1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x HDMI port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

LAN Intel® GbE LAN chip (1 Gbit/100 Mbit)

Wireless Data Network None

Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm

H/W MONITORING Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Special Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

Ambient LED

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

Smart Backup

System Information Viewer

Support for Q-Flash

Support for Xpress Install

Software Features Norton® Internet Security (OEM version)

cFosSpeed

Operating System Support Support for Windows 10 64-bit

Dimension (W x D x H) : 18.50 x 22.60 x 4.00 cm

Net Weight 0.41 KG

Package Dimension (W x D x H) : 23.50 x 26.50 x 5.30 cm

Gross Weight 0.66 KG

Volume 3,300.58 cm3
