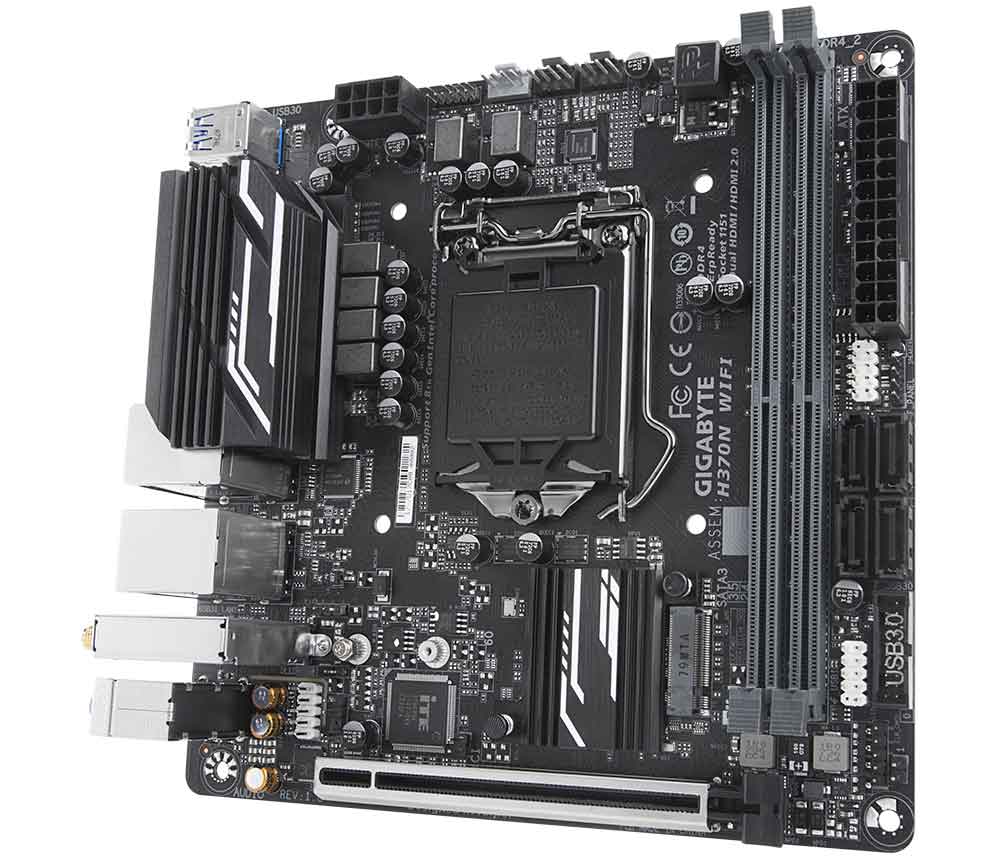

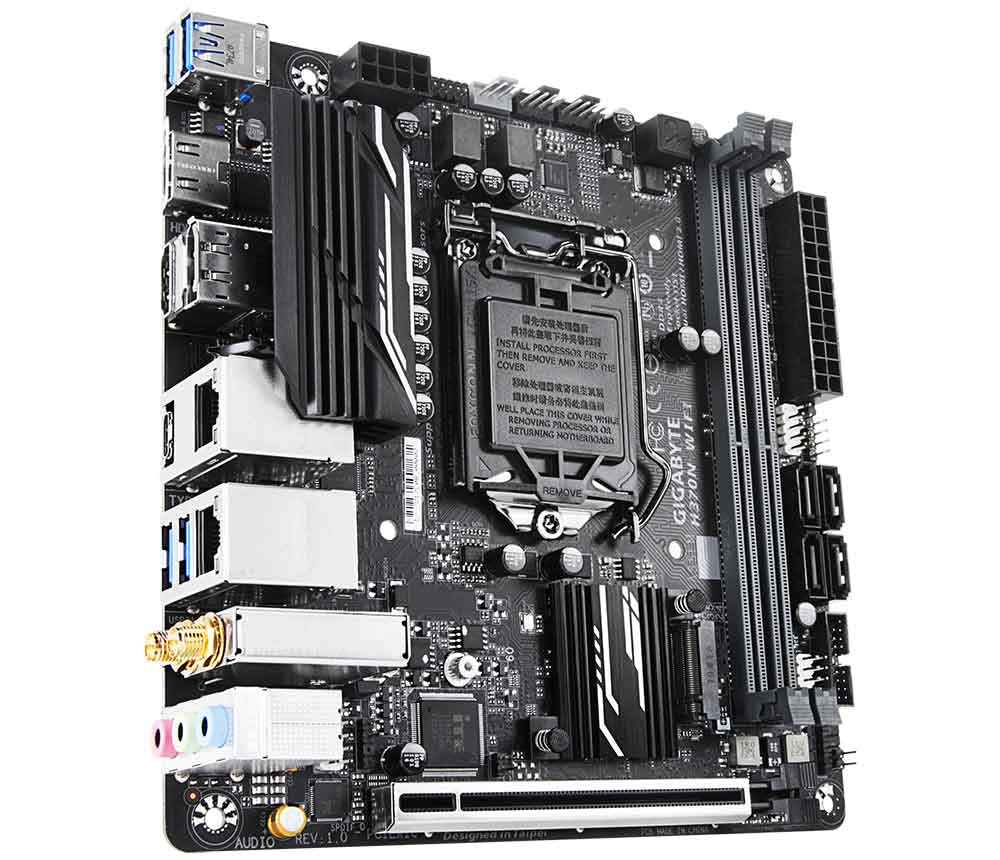

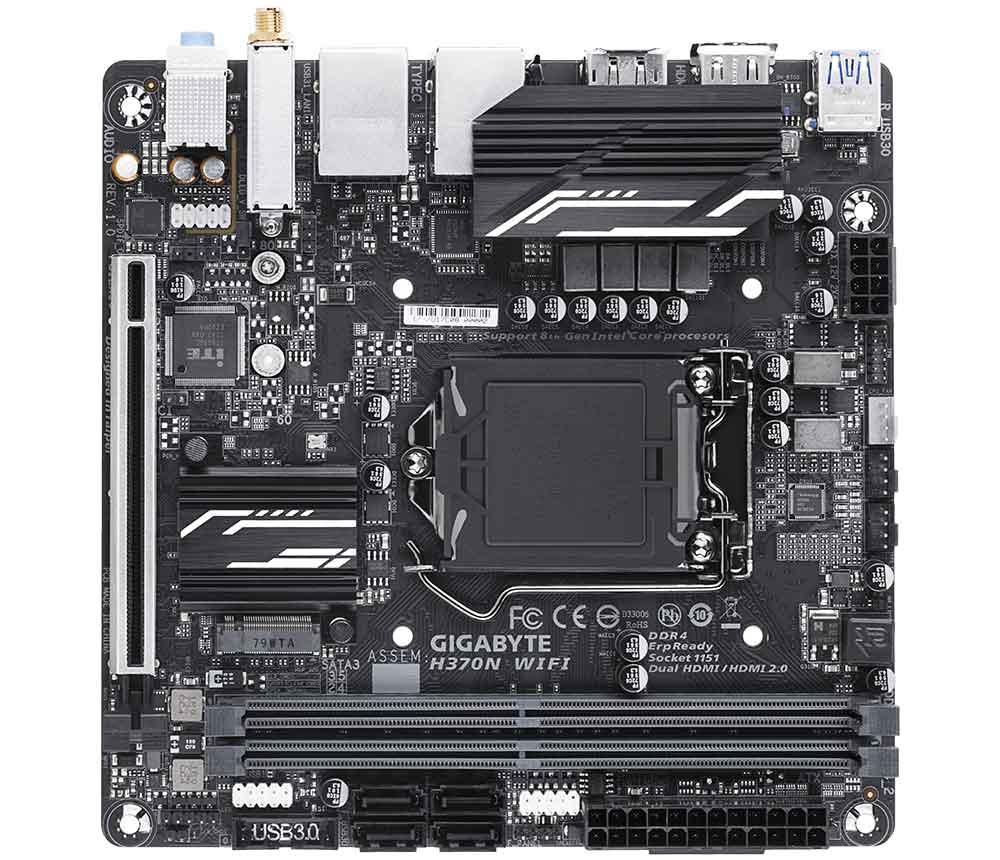

Gigabyte H370N WIFI Intel H370 Ultra Durable Motherboard

Buy Gigabyte H370 HD3 Intel H370 Ultra Durable Motherboard online at Low Price. Buy complete range of Motherboards on Vmart.pk, We Offer home delivery all over Pakistan.

• Supports 8th Gen Intel® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4
• New Hybrid Digital PWM Design
• Intel® CNVi 802.11ac Wave2 2T2R WIFI
• Immersive Gaming ViBes with ALC1220-VB and High Quality Audio Capacitors
• Dual Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
• RGB FUSION with Digital LED & RGB LED strips Support
• Intel® USB 3.1 Gen1 USB Type-C™
• Dual Intel® GbE LAN with cFosSpeed Internet Accelerator Software
• CEC 2019 Ready, Save the Power as Easy as One Click
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Dual HDMI (2.0a+1.4) and DisplayPort
• Ultra Durable PCIe Armor Design
• Anti-Sulfur Resistors Design
• Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
• Intel® Optane™ Memory Ready

Integrated Intel® 802.11ac Wave2 CNVi WIFI

Intel Next-Gen Wireless solution supports 802.11ac Wave 2 function, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 1.73Gbps. Double the speed compared to the previous generation.

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

The H370/B360 Platform supports Intel’s latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.

HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly twice that of the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.

Dual Intel® Gigabit LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

The World's Next Universal Connector

The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 Gen1 support and faster charging capabilities. Powered by the Intel® controller, this little port is the better USB Type-C™.

ALC1220-VB Immersive Gaming ViBes

All New Realtek High-End HD Audio Codec

ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp, it automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.

New VB series audio controller stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

Microphone input with higher front dynamic range allows gamers to hear more clearly. No more misunderstandings, no more confusing GO! GO! GO! as NO! NO! NO!

ALC1220-VB 120dB SNR Rear HD Audio with Smart Headphone AMP

Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamics—preventing issues such as low volume and distortion.

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

GIGABYTE Patented Double Locking Bracket

Long Lifespan Durable Black™ Solid Caps

GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.

GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Save the power as easy as one click

CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.

• CPU
• Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors//Intel® Celeron® processors in the LGA1151 package
• L3 cache varies with CPU
• (Please refer "CPU Support List" for more information.)
• Chipset
• Intel® H370 Express Chipset
• Memory
• 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
• Dual channel memory architecture
• Support for DDR4 2666/2400/2133 MHz memory modules
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
• (Please refer "Memory Support List" for more information.)
• Onboard Graphics Integrated Graphics Processor+MegaChips MCDP2800 chip:
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
• (Requires the latest Intel® graphics driver from the GIGABYTE website.)
• Integrated Graphics Processor-Intel® HD Graphics support:
• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
• * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
• * Support for HDMI 1.4 version and HDCP 2.2.
• Support for up to 3 displays at the same time
• Maximum shared memory of 1 GB
• Audio
• Realtek® ALC1220-VB codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• Support for S/PDIF Out
• LAN
• 2 x Intel® GbE LAN chips (10/100/1000 Mbit)
• Wireless Communication module
• Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
• BLUETOOTH 5
• Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate
• * Actual data rate may vary depending on environment and equipment.
• Expansion Slots
• 1 x PCI Express x16 slot, running at x16
• (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
• Storage Interface Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)
• 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe x4/x2 SSD support) (M.2)*
• * The connector is on the back of the motherboard.
• 4 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, RAID 5, and RAID 10
• Intel® Optane™ Memory Ready
• USB Chipset:
• 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
• 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• 2 x USB 2.0/1.1 ports available through the internal USB header
• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 2 x system fan headers
• 1 x digital LED strip header
• 1 x digital LED strip power select jumper
• 1 x RGB (RGBW) LED strip header
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.1 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x S/PDIF Out header
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x speaker header
• 1 x Clear CMOS jumper
• 1 x chassis intrusion header

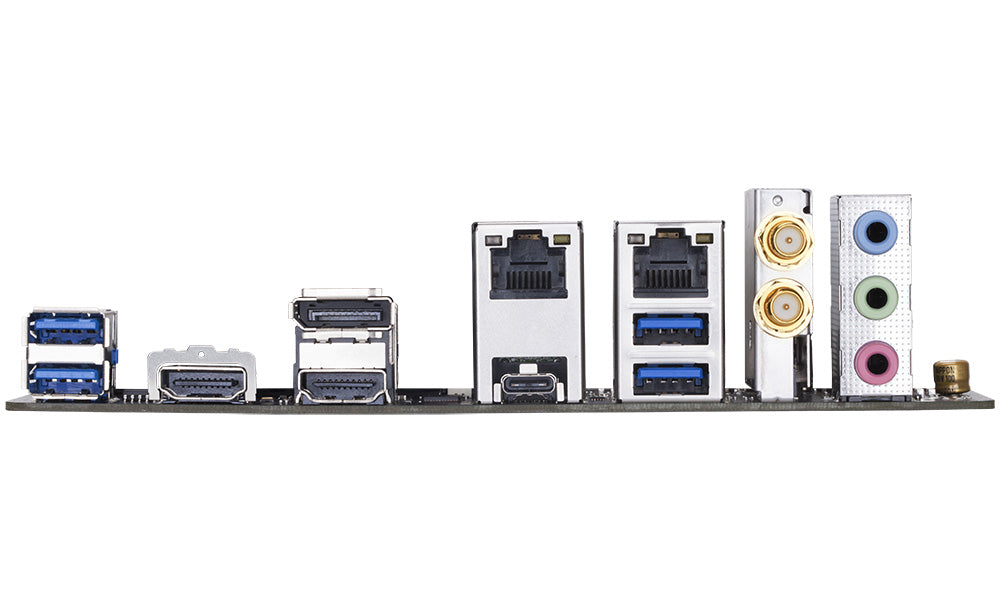

• Back Panel Connectors
• 1 x DisplayPort
• 2 x HDMI ports
• 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
• 4 x USB 3.1 Gen 1 ports
• 2 x RJ-45 ports
• 2 x SMA antenna connectors (2T2R)
• 3 x audio jacks
• I/O Controller
• iTE® I/O Controller Chip
• H/W Monitoring
• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
• * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
• 2 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• Support for DualBIOS™
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
• Support for APP Center
• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• 3D OSD
• @BIOS
• AutoGreen
• Cloud Station
• EasyTune
• Easy RAID
• Fast Boot
• Game Boost
• ON/OFF Charge
• Platform Power Management
• RGB Fusion
• Smart Backup
• Smart Keyboard
• Smart TimeLock
• Smart HUD
• System Information Viewer
• USB Blocker
• V-Tuner
• Support for Q-Flash
• Support for Xpress Install
• Bundle Software
• Norton® Internet Security (OEM version)
• cFosSpeed
• Operating System
• Support for Windows 10 64-bit
• Form Factor
• Mini-ITX Form Factor; 17.0cm x 17.0cm
• Remark
• Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
• Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
