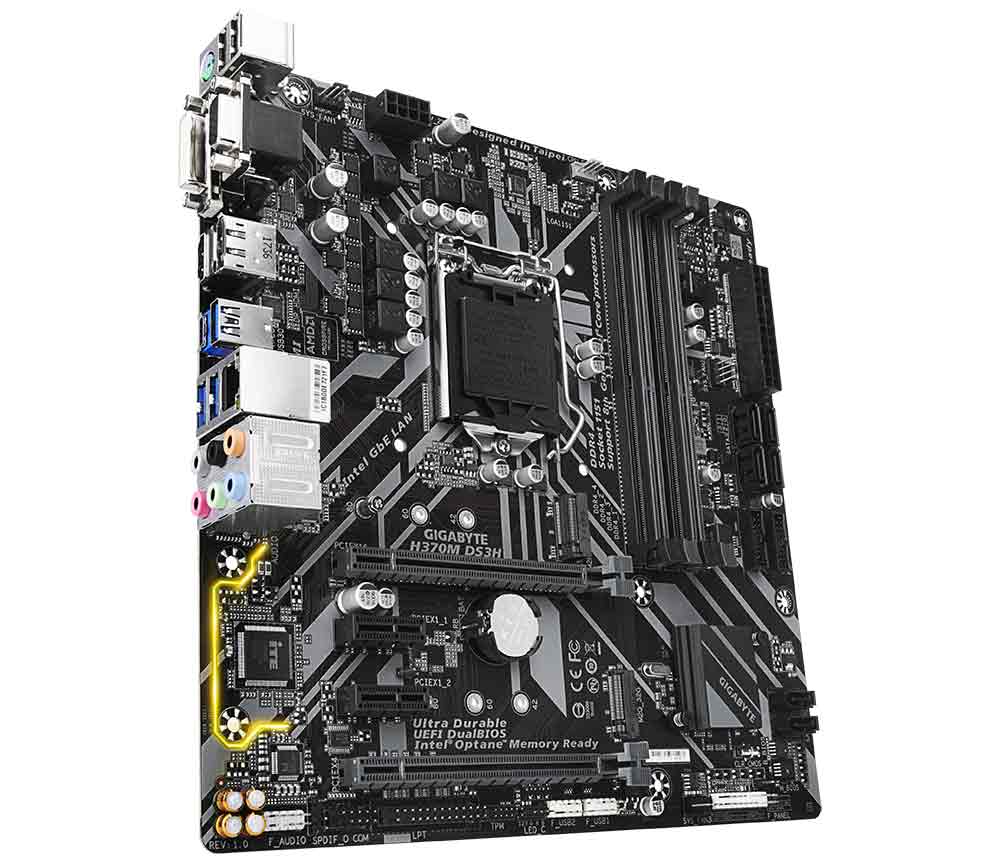

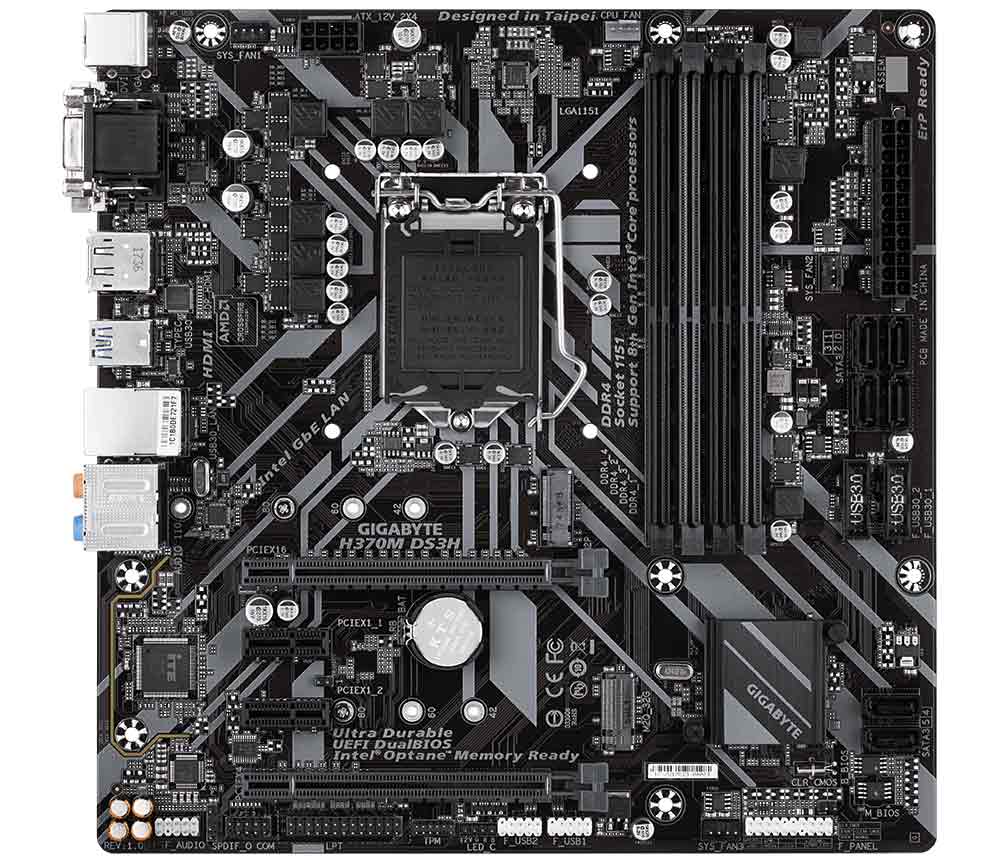

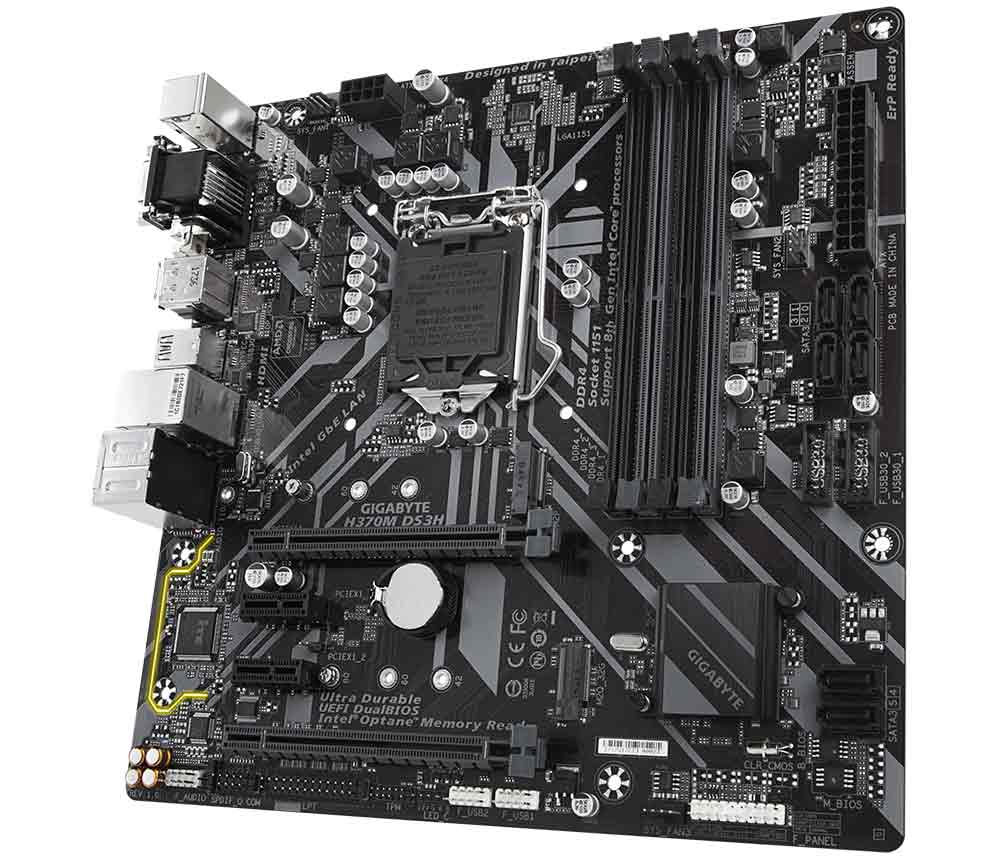

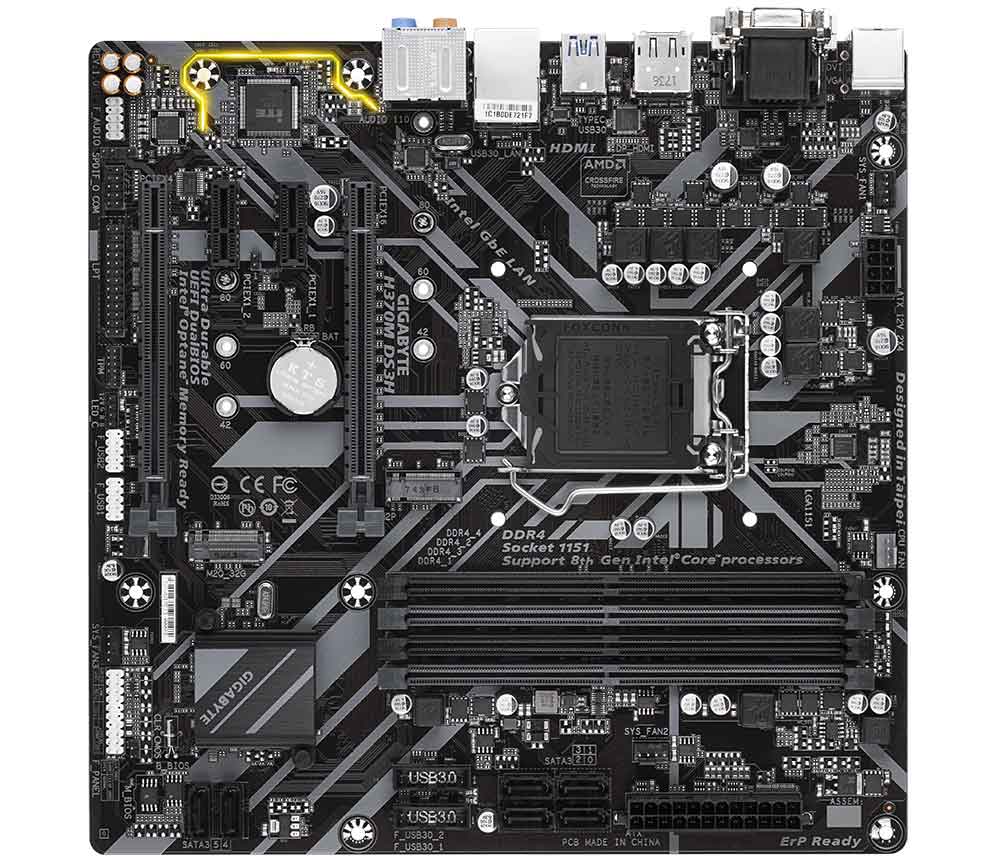

Gigabyte H370M DS3H Intel H370 Ultra Durable Motherboard

BuyGigabyte H370M DS3H Intel H370 Ultra Durable Motherboard Online at Low Price. Buy complete range of Motherboards on Vmart.pk, We Offer home delivery all over Pakistan.

Dual NVMe PCIe Gen3 M.2 Slots (x4,x2)

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

The H370/B360 Platform supports Intel’s latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 Gen1 support and faster charging capabilities. Powered by the Intel® controller, this little port is the better USB Type-C™.

Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

• 6 Temperature Sensors
• 4 Fan Pin Headers
• All Fan Pin Headers Upgraded to Hybrid Fan Headers
• Interoperable Fans and Sensors
• Intuitive UI for Fan Control
• Intelligent Fan Control Design

Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.

All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

Choose from different modes, Quiet to Full Speed, to match your system usage scenario.

For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

• Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).Fan Curve
• Customize fan curves based on specific temperatures with the intuitive graphical UI.
• Choose from different modes, Quiet to Full Speed, to match your system usage scenario.
• For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior; these are the possibilities of the System Information Viewer.

Immersive VR

• VR requires more performance than Full HD graphics for a steady 90FPS or greater.
• Only Gaming PCs can provide the best VR experience.
• Recommended configuration for VR Gaming PC*
• Graphics Card: NVIDIA GTX 1060 / AMD RX 480 or greater, Compatible HDMI 1.4 video output
• CPU: Intel i5 equivalent or greater
• Motherboard: GIGABYTE H370 / B360 / H310 motherboards
• Memory: 8GB RAM or greater
• USB Ports: 3x USB 3.0 ports plus 1x USB 2.0 port or greater
• OS: Windows 10 64-bit or newer
• *Please check VR vendor website for full system requirements.

To create a seamless VR experience GIGABYTE Motherboards offer the best features to make your virtual reality feel like your actual reality. With technologies such as NVMe support via M.2 or U.2 it's obvious that GIGABYTE has the tools you need to start your journey in VR.

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.

Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. A total of 7 colors are available to make your system appearance unique!

* LED strips not included.

* Lighting effects may vary by model.

Different light strips sometimes have different RGB pin definitions, RGB Fusion software can relocate each pin location for the best compatibility. Lighting Profile

Save, export and import profiles to quickly change effects based on you preference and to share with others.

Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.

GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Save the power as easy as one click

CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.

HDMI™ - The Next Generation Multimedia Interface

• Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors//Intel® Celeron® processors in the LGA1151 package
• L3 cache varies with CPU
• (Please refer "CPU Support List" for more information.)

• Intel® H370 Express Chipset

• 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
• Dual channel memory architecture
• Support for DDR4 2666/2400/2133 MHz memory modules
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
• (Please refer "Memory Support List" for more information.)

• Integrated Graphics Processor-Intel® HD Graphics support:
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
• * The DVI-D port does not support D-Sub connection by adapter.
• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
• * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
• * Support for HDMI 1.4 version and HDCP 2.2.
• Support for up to 3 displays at the same time
• Maximum shared memory of 1 GB

• Realtek® ALC887 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

• Intel® GbE LAN chip (10/100/1000 Mbit)

• 1 x PCI Express x16 slot, running at x16 (PCIEX16)
• * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• 1 x PCI Express x16 slot, running at x4 (PCIEX4)
• 2 x PCI Express x1 slots
• (All of the PCI Express slots conform to PCI Express 3.0 standard.)

• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x2 SSD support) (M2P_16G)
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2Q_32G)
• 6 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, RAID 5, and RAID 10
• * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
• Intel® Optane™ Memory Ready

• 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
• 7 x USB 3.1 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
• 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 2 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 3 x system fan headers
• 1 x RGB LED strip header
• 1 x front panel header
• 1 x front panel audio header
• 2 x USB 3.1 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x S/PDIF Out header
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x parallel port header
• 1 x serial port header
• 1 x Clear CMOS jumper

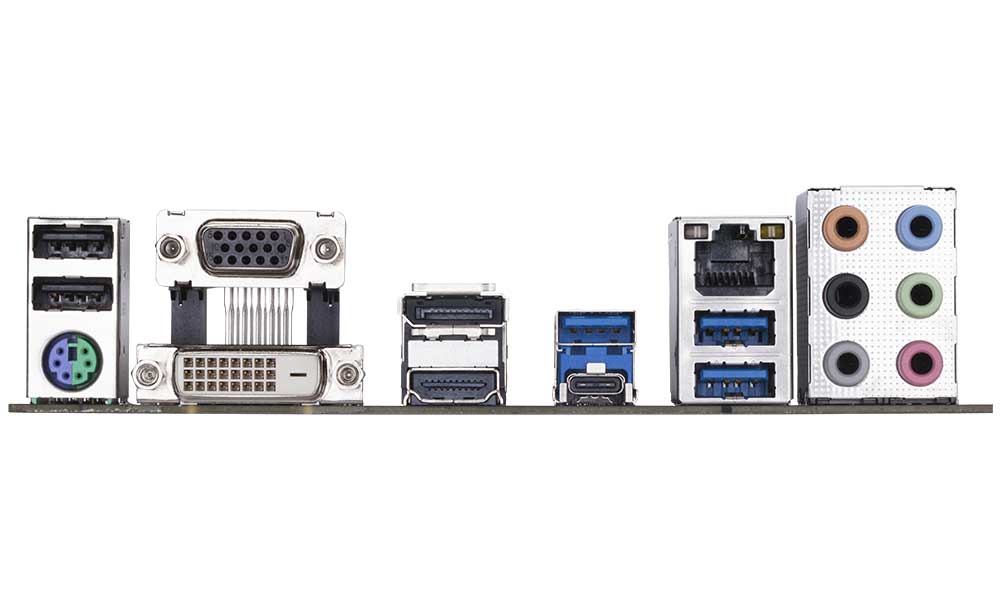

• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x DVI-D port
• 1 x HDMI port
• 1 x DisplayPort
• 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
• 3 x USB 3.1 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 6 x audio jacks

• iTE® I/O Controller Chip

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
• * Whether the fan speed control function is supported will depend on the cooler you install.

• 2 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• Support for DualBIOS™
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for APP Center
• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• 3D OSD
• @BIOS
• AutoGreen
• Cloud Station
• EasyTune
• Easy RAID
• Fast Boot
• Game Boost
• ON/OFF Charge
• Platform Power Management
• RGB Fusion
• Smart Backup
• Smart Keyboard
• Smart TimeLock
• Smart HUD
• System Information Viewer
• USB Blocker
• V-Tuner
• Support for Q-Flash
• Support for Xpress Install
• Bundle Software
• Norton® Internet Security (OEM version)
• cFosSpeed

• Support for Windows 10 64-bit

• Micro ATX Form Factor; 24.4cm x 24.4cm

• Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
• Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
