Gigabyte GTX 980TI 6GB GDDR5 (GV-N98TG1 GAMING-6GD)

Features

• WINDFORCE 3X 600W cooling system
• Flex Display Technology
• Powered by NVIDIA GeForce GTX 980 TI GPU
• Integrated with industry's best 6GB GDDR5 memory 384-bit memory interface

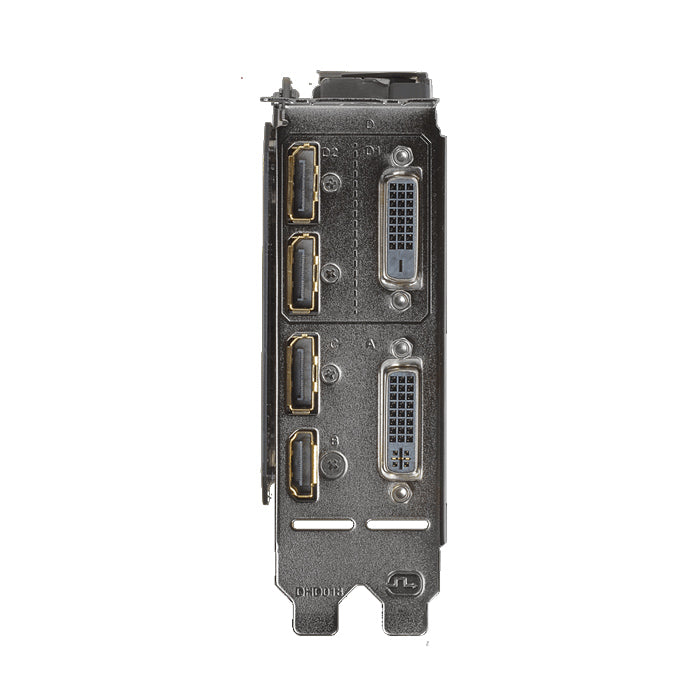

• Features Dual-link DVI-I / Dual-link DVI-D / HDMI / DisplayPort*3
• Boost:1279 / Base: 1190 MHz in OC Mode
• Boost:1241 / Base: 1152 MHz in Gaming Mode
• System power supply requirement: 600W(with two 8-pin external power connectors)

GIGABYTE WINDFORCE 3X 600W cooling system

GIGABYTE WINDFORCE 3X 600W cooling system once again break the record and bring the air cooling capacity up to 600W by only using 2 slots heights. The WINDFORCE 3X 600W cooling system is equipped with five 8mm and one 6mm composite cooper heat-pipes , special fin architecture, unique blade fan design, and GIGABYTE “Triangle Cool” technology. This not only provides an effective heat dissipation capacity but also enables higher performance due to a lower temperature.

WINDFORCE 3X With Unique Blade Fan

WINDFORCE 3X cooling system is equipped with high performance pure cooper heat-pipes which direct touch the GPU can strengthen the speed of heat dissipation. Besides, the air flow is effectively enhanced by the unique blade fan design, this not only increase the cooling capacity while reducing air turbulence but also results a lower noise level.

0dB semi-passive fans with intuitive fan indicators

The fans will remain off when the GPU is under a set loading or temperature for low power gaming. Besides, LED fan indicators on the top of the graphics card provide an instant display of whether the fans are spinning or not.

Multi-color Illuminated LED

With extra color options and numerous lighting effects, gamers can now choose the right scheme for their gaming rigs through GIGABYTE OC GURU II utility software.

"Triangle Cool" Technology

By the combination of fins and clip module, GIGABYTE innovatively designs the WINDFORCE thermal into a special triangle shape! The patented “Triangle Cool” Technology enhances the efficiency of heat dissipation dramatically by minimizing the turbulences between fans.

Special Fin Architecutre

The special design of unequal fins height does not only enhances the turbulence between the fins but also results in a lower noise level and better cooling capacity.

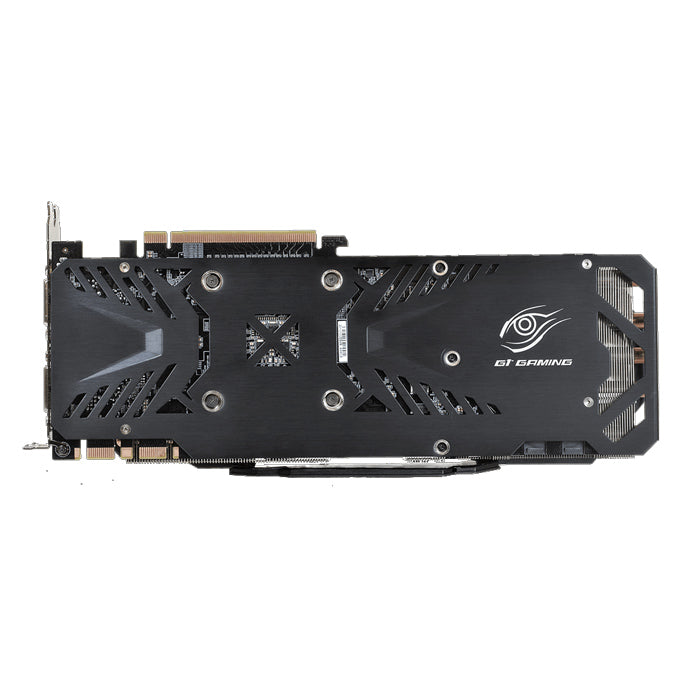

Stylish Metal Back Plate

Glorious black metal back plate engraved with G1 GAMING logo inspires passion for gaming.

SOC ? GPU Gauntlet™ Sorting

With GPU Gauntlet™ Sorting, the Gigabyte SOC graphics card guarantees the higher overclocking capability in terms of excellent power switching.

Flex Display technology

GIGABYTE Flex display technology(patent-pending) can automatically detect any connected monitors and achieve multi-display gaming up to 4 monitors at the same time by using various output groups. Users could enjoy the best gaming experience in ultra HD resolution with extended flexibility in arranging monitor configurations and making future system upgrade extremely easy.

Ultra Durable VGA

Lower GPU Temperature

Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU and memory temperature by doubling the copper inner layer of PCB.

Better Overclocking Capability

Ultra Durable VGA board reduces voltage ripples in normal and transient state, thus effectively lowers noises and ensures higher overclocking capability.

Decrease Power Switching Loss

Ultra Durable VGA board allows more bandwidth for electron passage and reduces circuit impedance. The less circuit impedance, the more stable flow of

OC GURU ll

Brand-new intuitive user interface helps you easily modify important settings and directly update driver and BIOS. Clock speeds, voltage, fan performance, and OSD setting can be monitored and tuned in real-time according to your own preference.

Specifications

Chipset GeForce

GTX 980 Ti

Core Clock Boost:

1279 / Base: 1190 MHz in OC Mode

Boost:1241 / Base:

1152 MHz in Gaming Mode

Memory Clock

7010 MHz

Process Technology

28 nm

Memory Size

6 GB

Memory Bus

384 bit

Card Bus

PCI-E 3.0

Memory Type

GDDR5

DirectX

12

OpenGL

4.4

PCB Form

ATX

Digital max resolution

4096 X 2160

Analog max resolution

2048 x 1536

Multi-view

4

I/O

Dual-link DVI-I / Dual-link DVI-D / HDMI / DisplayPort*3

Card size

H=39 L=296 W=120 mm

Power requirement

600W(with two 8-pin external power connectors)
