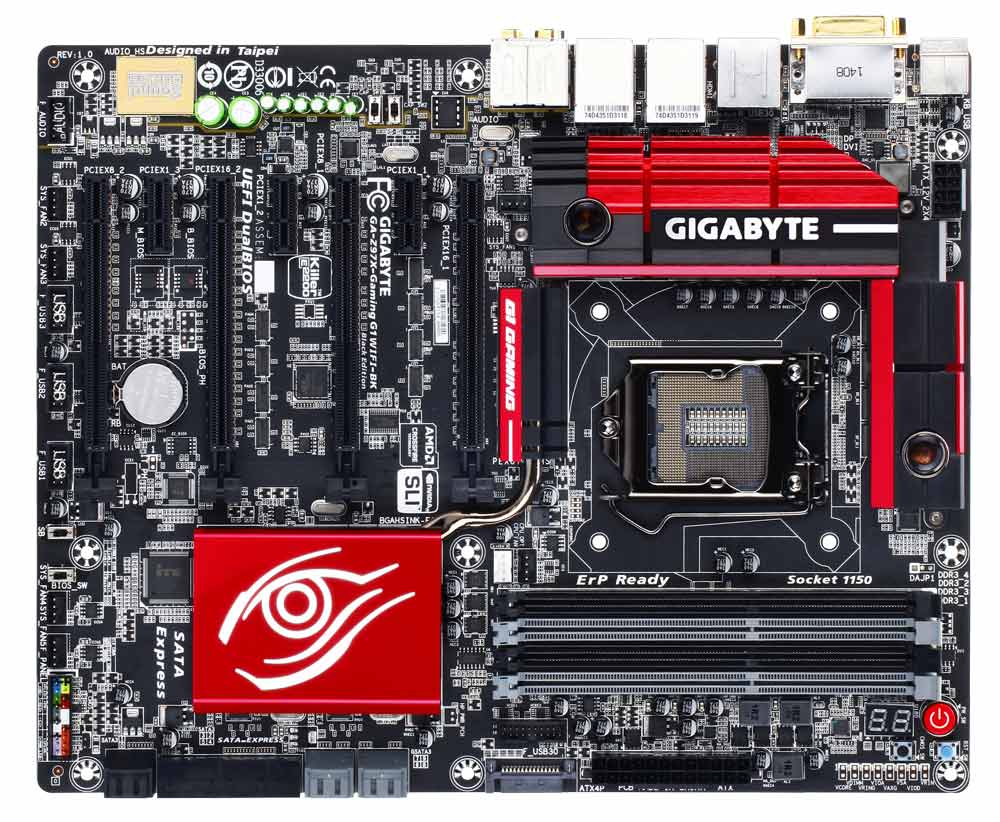

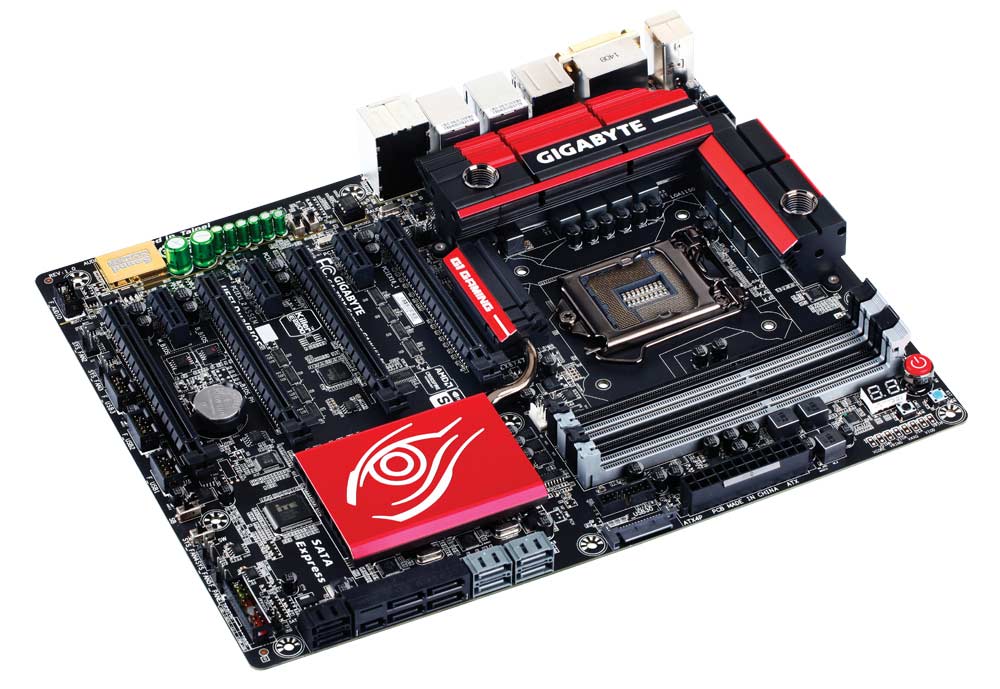

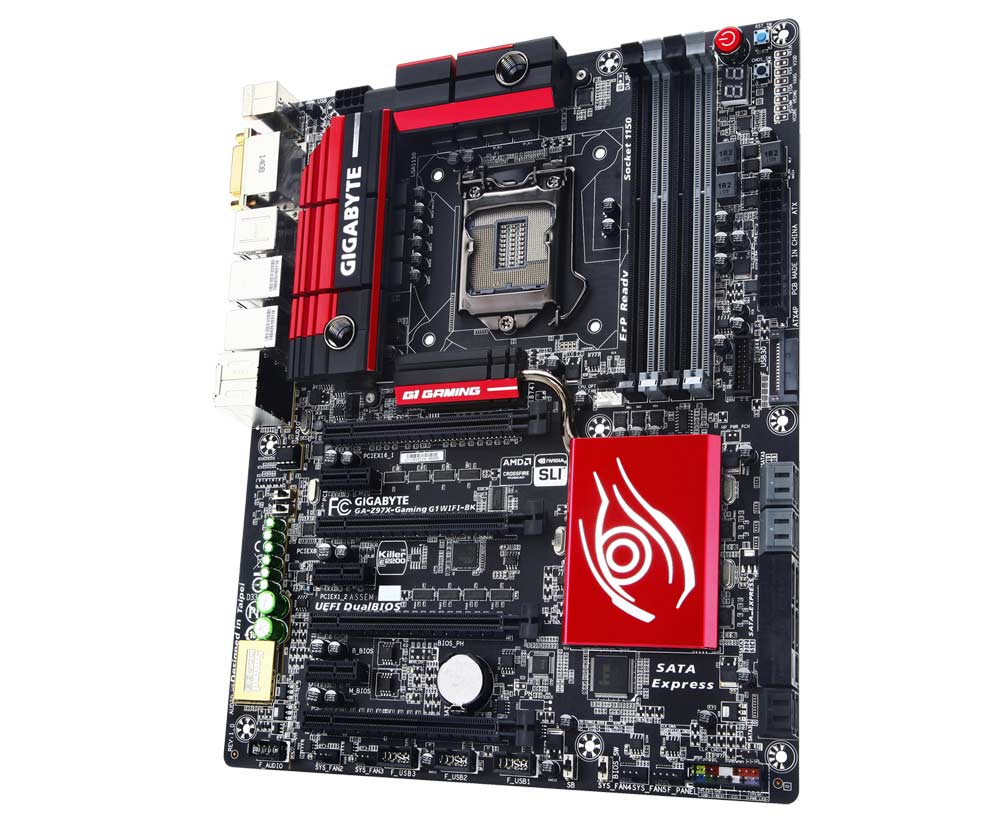

Gigabyte GA-Z97X-Gaming G1 WIFI-BK Motherboard

Buy Gigabyte GA-Z97X-Gaming G1 WIFI-BK Motherboard online on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Gigabyte products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Ultra Durable BLACK EDITION

Extended server level 168 hour Durability Test

GIGABYTE Black Edition motherboards undergo an extra 168 hours (7 days) of stress testing before shipment to ensure premium quality for our customers.

During the 168 hour test, each motherboard needs to pass rigorous, full system validation testing for 1 full week. GIGABYTE has built a custom testing facility at our Taiwan (Nanping) factory.

A Certificate of Validation is included with every board, issued by the GIGABYTE factory and signed by the manufacturing VP & GM to indicate that each board has passed our highest test standards.

G1™ Gaming Motherboards

GIGABYTE AMP-UP Audio™ Technology

GIGABYTE G1™ Gaming motherboards are equipped with the GIGABYTE exclusive AMP-UP Audio Technology, which provides the industry’s highest level of onboard audio features and technologies. With GIGABYTE AMP-UP Audio, gamers and audiophiles are able to experience crisp, ultra realistic sound effects while gaming, and the richest possible sound experience when listening to their favorite music and movies.

GIGABYTE Direct Audio Route Design

•  Shortest route, no wasted trace.
• Less crosstalk & less EMI.
• AMP positioned close to audio jack for lowest noise.
• Better signal quality and better audio quality.

The shortest route is always the best for audio signals.

The GIGABYTE 9 Series G1™ Gaming motherboards feature the shortest audio communication paths between each critical component, from chipset to audio jack. This reduces the crosstalk along the way, and the very close proximity of the AMP to the audio jack directly results in lower noise disturbance.
With this high quality audio design, GIGABYTE G1™ Gaming motherboards are able to bring users better signal quality for the absolute best audio experience.

GIGABYTE Exclusive : Upgradable OP-AMP

Customizable

Users can choose audio quality based on individual listening preferences.
Wide availability of additional OP-AMPs.

Low Cost way to dramatically improve audio quality

Improve audio dynamics and overall sound-quality with little cost.
No need for expensive speakers or high-end audio equipment.

Exclusive onboard 'Gain Boost' selector switches

Select either standard 2.5x or high-amplification 6x mode.
6x mode is ideal for high impedance speakers and headphones

Creative® Sound Core3D™ Quad-Core Audio Processor

Combining world’s first Quad-Core Creative Sound Core3D Audio Processor Plus Advanced Creative SBX PROSTUDIO Audio Suite.

Harnessing the power of a Dedicated Audio Processor to offload workload from CPU
Total solution from Creative (Hardware +Software)
Richer overall audio experience

Creative SBX Pro Studio Audio Suite

SBX Pro Studio™ suite of audio playback technologies deliver a new level of audio immersion. Realistic surround sound, the ability to clearly hear specific sounds in a gaming environment are just a few elements of SBX Pro Studio that enhances the overall experience, be it movies, games or music.

High End Audio Capacitors

GIGABYTE G1™ Gaming motherboards use high end, Japanese branded Nichicon audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

Gold Plated Audio Hardware

GIGABYTE G1™ Gaming motherboards pack top quality gold plated audio and HDMI connectors for improved connectivity and long lasting durability. Gold has superb signal conductivity and will not tarnish over extended periods of use. The Creative Sound Core3D™ processor is also shielded by a gold plated cover which eliminates electrostatic interference.

Dual DAC-UP USB Ports

Featuring dual USB 2.0 ports, GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible.

Dedicated Audio Hardware Zone

Separation on the PCB layer protects the board's sensitive analog audio components.
Separate analog and digital ground to protect against Electromagnetic Interference (EMI).
LED trace path lighting illuminates to show the separation of the PCB layers.

Killer™ E2200 Gaming Network

NO LAG, JUST FRAG!

GIGABYTE G1™ Gaming motherboards feature the Killer™ E2200 from Qualcomm Atheros, a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and online media performance compared to standard solutions.

Intel® Gigabit LAN

Intel Gigabit LAN networking, a popular choice with gamers, delivers several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.

Integrated 2T2R Dual Band IEEE802.11ac WiFi + BT 4.0

This motherboard comes with an exclusive IEEE802.11ac WiFi module that supports up to 867Mbps wireless networks and Bluetooth 4.0. IEEE802.11ac WiFi runs at up to 867Mbit/s and the bundled 2.4GHz/5GHz dual-band, 2T2R antenna gives you wide coverage.

Extreme Multi-GPU Support

Flexible graphics capabilities supported for either 4-Way CrossFire™ or 4-Way SLI™ action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

SATA Express Connector

GIGABYTE motherboards feature an onboard SATA Express connector which provides performance far superior to that of current SATA technologies. SATA Express features data transfer rates of up to 10Gb/s, considerably higher than SATA Revision 3 (6Gb/s), which won’t bottleneck faster NAND flash technologies in cutting edge SSDs. SATA Express combines the benefits of PCI-Express and SATA to provide much higher bandwidth, allowing SATA Express based drives to perform at similar speeds as PCI-Express based drives.

GIGABYTE App Center Including EasyTune™ and Cloud Station™ Utilities

GIGABYTE APP Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE apps installed on your system.

GIGABYTE EasyTune ™ App

GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.
With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

GIGABYTE Cloud Station™ APP

GIGABYTE Cloud Station™ is composed of several GIGABYTE's unique apps that allow your smart phones/tablet device to communicate, share resources, and control desktop PCs via wireless connection.

Features

• Extended server level 168 hour durability Test
• Supports 4th and 5th Generation Intel® Core™ processors
• Onboard Creative Sound Core3D™ quad-core audio processor
• AMP-UP Audio technology with exclusive Upgradable OP-AMP
• Audio Noise Guard with LED path lighting
• Dual DAC-UP USB ports
• Gold plated display and audio ports
• High end Nichicon audio capacitors
• Killer™ E2200 and Intel gaming networking
• Bluetooth 4.0+867Mbps 11AC dual band WIFI card
• Extreme gaming 4-way graphics support
• SATA Express support for 10 Gb/s data transfer
• Water block thermal design with G1/4 threaded fittings
• Long lifespan Durable Black Solid caps
• APP Center including EasyTune™ and Cloud Station™ utilities
• GIGABYTE UEFI DualBIOS™

Specifications

CPU

1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

Intel® Z97 Express Chipset

Memory

1. 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
   * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for 3200(O.C.) / 3100(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules

   (Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor - Intel® HD Graphics support:

1. 1 x DVI-I port, supporting a maximum resolution of 1920x1200@60Hz
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz or 2560x1600@60Hz
   * Support for HDMI 1.4a version.
3. 1 x DisplayPort, supporting a maximum resolution of 4096x2160@24Hz or 3840x2160@60Hz
   * Support for DisplayPort 1.2 version.
4. Support for up to 3 displays at the same time
5. Maximum shared memory of 512MB

Audio

Creative® Sound Core 3D chip
TI Burr Brown® OPA2134 operational amplifier
Support for Sound Blaster Recon3Di
High Definition Audio
2/5.1-channel
Support for S/PDIF Out

LAN

1 x Qualcomm® Atheros Killer E2201 chip (10/100/1000 Mbit) (LAN1)
1 x Intel® GbE LAN phy (10/100/1000 Mbit) (LAN2)

Teaming is not supported.

Wireless Communication module

Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Bluetooth 4.0, 3.0+HS, 2.1+EDR
Support for 11ac wireless standard and up to 867 Mbps data rate

Actual data rate may vary depending on environment and equipment.

Expansion Slots

1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1~2)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1~2)
   * The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_2 slot with PCIEX16_2. The PCIEX16_1/PCIEX16_2 slot will operate at up to x8 mode when the PCIEX8_1/PCIEX8_2 is populated.
   (All PCI Express x16 slots conform to PCI Express 3.0 standard.)
3. 3 x PCI Express x1 slots
   (The PCI Express x1 slots conform to PCI Express 2.0 standard.)Multi-Graphics Technology
   Support for 4-Way/3-Way/2-Way AMD CrossFire™/NVIDIA® SLI™ technology

Storage Interface

Chipset:

1 x SATA Express connector
6 x SATA 6Gb/s connectors (SATA3 0~5)
Support for RAID 0, RAID 1, RAID 5, and RAID 10

(SATA Express and SATA3 4/5 connectors can only be used one at a time.)

2 x Marvell® 88SE9172 chips:

4 x SATA 6Gb/s connectors (GSATA3 6~9)
Support for RAID 0 and RAID 1

* Due to system limitation, Intel RAID and Marvell RAID can only use either one.

USB

Chipset:

4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)

Chipset + Renesas® uPD720210 USB 3.0 Hub:

4 x USB 3.0/2.0 ports on the back panel

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x PCIe power connector
1 x SATA Express connector
10 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling fan header (CPU_OPT)
5 x system fan headers
1 x front panel header
1 x front panel audio header
1 x USB 3.0/2.0 header
3 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
1 x power button
1 x reset button
1 x Clear CMOS button
2 x audio gain control switches
8 x onboard voltage measurement points
2 x BIOS switches

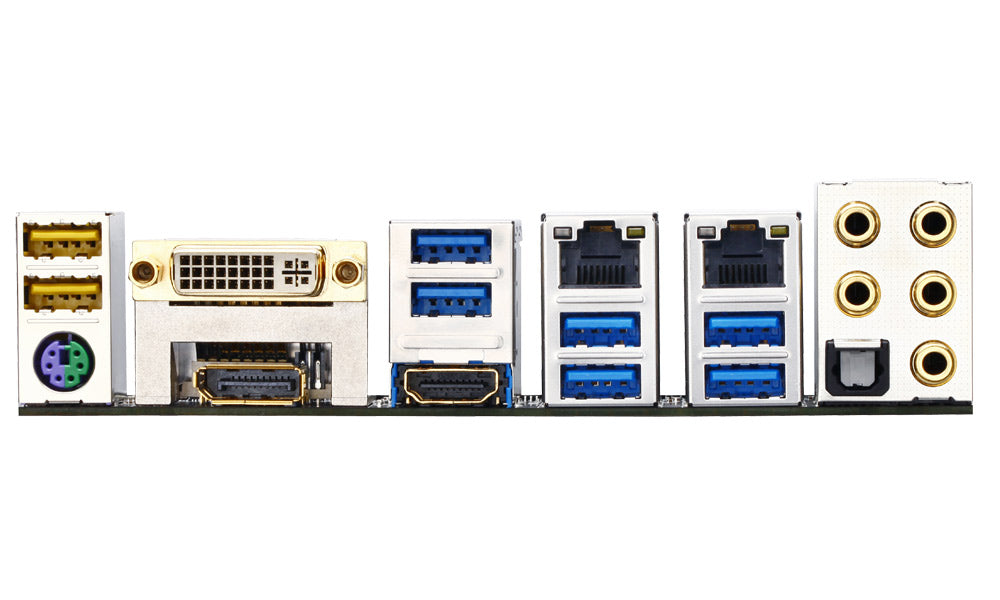

Back Panel Connectors

1 x PS/2 keyboard/mouse port
1 x optical S/PDIF Out connector
1 x DVI-I port
1 x DisplayPort
1 x HDMI port
2 x USB 2.0/1.1 ports
6 x USB 3.0/2.0 ports
2 x RJ-45 ports
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

System voltage detection
CPU/System/Chipset temperature detection
CPU/CPU OPT/System fan speed detection
CPU/System overheating warning
CPU/CPU OPT/System fan fail warning
CPU/CPU OPT/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for APP Center
   * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
   @BIOS
   EasyTune
   EZ Setup
   Fast Boot
   Game Controller
   Cloud Station
   ON/OFF Charge
   Smart TimeLock
   Smart Recovery 2
   System Information Viewer
   USB Blocker
2. Support for Q-Flash
3. Support for Smart Switch
4. Support for Xpress Install

Bundle Software

Norton® Internet Security (OEM version)
Intel® Rapid Start Technology
Intel® Smart Connect Technology
Intel® Smart Response Technology

Operating System

Support for Windows 8.1/8/7

Form Factor

ATX Form Factor; 30.5cm x 24.4cm
