Gigabyte GA-Z97X-Gaming 3

Buy Gigabyte GA-Z97X-Gaming 3 online on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Gigabyte products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

GIGABYTE AMP-UP Audio™ Technology

GIGABYTE G1™ Gaming motherboards are equipped with the GIGABYTE exclusive AMP-UP Audio Technology, which provides the industry’s highest level of onboard audio features and technologies. With GIGABYTE AMP-UP Audio, gamers and audiophiles are able to experience crisp, ultra realistic sound effects while gaming, and the richest possible sound experience when listening to their favorite music and movies.

Realtek ALC1150 115dB SNR HD Audio

The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.

Built-in Rear Audio Amplifier

Specially designed for gamers, GIGABYTE motherboards utilize a high-capacity amplifier which is able to drive 600Ω loads, giving gamers a fuller range of dynamic sound with crisper details and less distortion when using high quality professional headphones.

Additional Sound Blaster X-Fi MB3

GIGABYTE G1™ Gaming motherboards also include Sound Blaster X-Fi MB3 software suite. Sound Blaster X-Fi MB3 software suite is a powerful audio platform offering premium audio quality, effects and features for gamers. It features SBX Pro Studio™ suite of technologies, which is designed to give you the fullest audio experience.

 Dedicated Audio Hardware Zone

Separation on the PCB layer protects the board's sensitive analog audio components.
Separate analog and digital ground to protect against Electromagnetic Interference (EMI).
LED trace path lighting illuminates to show the separation of the PCB layers.

Killer™ E2200 Gaming Network

NO LAG, JUST FRAG!

GIGABYTE G1™ Gaming motherboards feature the Killer™ E2200 from Qualcomm Atheros, a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and online media performance compared to standard solutions.

Extreme Multi-GPU Support

Flexible graphics capabilities supported for either 3-Way CrossFire™ or 2-Way SLI™ action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

SATA Express Connector

GIGABYTE motherboards feature an onboard SATA Express connector which provides performance far superior to that of current SATA technologies. SATA Express features data transfer rates of up to 10Gb/s, considerably higher than SATA Revision 3 (6Gb/s), which won’t bottleneck faster NAND flash technologies in cutting edge SSDs. SATA Express combines the benefits of PCI-Express and SATA to provide much higher bandwidth, allowing SATA Express based drives to perform at similar speeds as PCI-Express based drives.

M.2 Onboard Connector

GIGABYTE G1™ Gaming motherboards come equipped with an onboard M.2 slot, providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 (6Gb/s) storage devices.

GIGABYTE App Center Including EasyTune™ and Cloud Station™ Utilities

GIGABYTE APP Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE apps installed on your system.

Features

• Supports 4th and 5th Generation Intel® Core™ processors
• Creative SoundBlaster X-Fi MB3 gaming audio suite
• Audio Noise Guard with LED path lighting
• Realtek ALC1150 115dB SNR HD Audio with Built-in rear audio amplifier
• Killer™ E2200 gaming networking platform
• Extreme multi graphics support
• SATA Express support for 10 Gb/s data transfer
• M.2 for SSDs drives with up to 10 Gb/s data transfer
• Long lifespan Durable Solid caps
• APP Center including EasyTune™ and Cloud Station™ utilities
• GIGABYTE UEFI DualBIOS™

Specifications

CPU

1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

Intel® Z97 Express Chipset

Memory

1. 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
   * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR3 3200(O.C.) / 3100(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules

   (Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor - Intel® HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
   * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz or 2560x1600@60Hz
   * Support for HDMI 1.4a version.
4. Support for up to 3 displays at the same time
5. Maximum shared memory of 512MB

Audio

1. Realtek® ALC1150 codec
2. Support for Sound Blaster X-Fi MB3
3. High Definition Audio
4. 2/4/5.1/7.1-channel
5. Support for S/PDIF Out

LAN

Qualcomm® Atheros Killer E2201 LAN chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
   * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode. (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)

3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
   * The PCIEX4 slot shares bandwidth with all PCI Express x1 slots. All PCI Express x1 slots will become unavailable when a PCIe x4 expansion card is installed.
   * When installing a x8 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration (PCH) in BIOS Setup to x4. (Refer to Chapter 2, "BIOS Setup," "Peripherals," for more information.)

4. 3 x PCI Express x1 slots
   (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

5. 1 x PCI slot

Multi-Graphics Technology

Support for 3-Way/2-Way AMD CrossFire™and 2-Way NVIDIA® SLI™ Technology

Storage Interface

Chipset:

1. 1 x M.2 PCIe connector
   (Socket 3, M key, type 2242/2260/2280 SATA & PCIe SSD support)
2. 1 x SATA Express connector
3. 6 x SATA 6Gb/s connectors (SATA3 0~5)
   (M.2, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed.)
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10

USB

Chipset:

6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 PCIe connector
1 x SATA Express connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling fan header (CPU_OPT)
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
1 x Trusted Platform Module (TPM) header

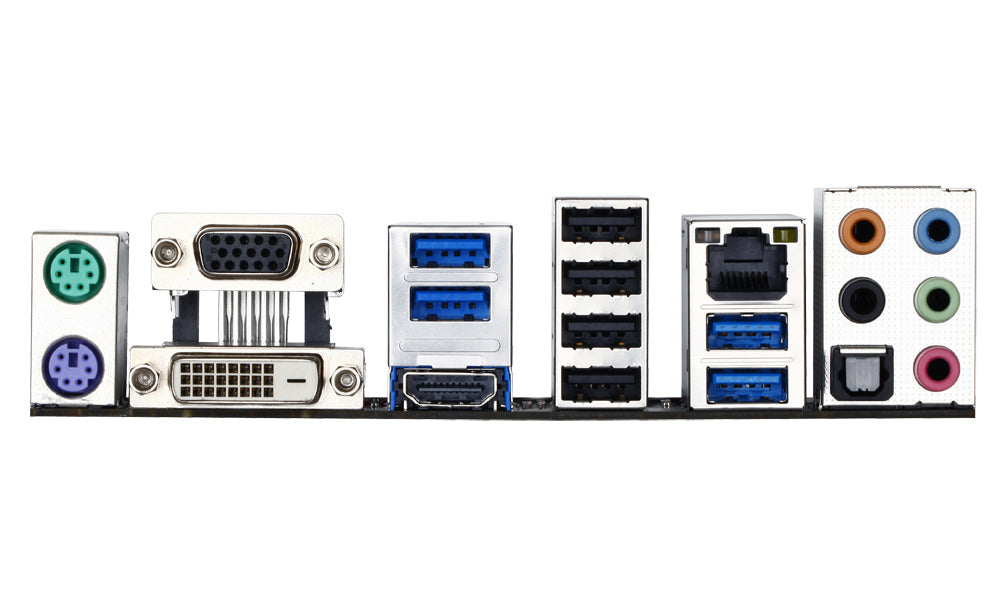

Back Panel Connectors

1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x optical S/PDIF Out connector
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

System voltage detection
CPU/System/Chipset temperature detection
CPU/CPU OPT/System fan speed detection
CPU/System overheating warning
CPU/CPU OPT/System fan fail warning
CPU/CPU OPT/System fan speed control

Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for APP Center
   * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
   @BIOS
   EasyTune
   EZ Setup
   Fast Boot
   Game Controller
   Cloud Station
   ON/OFF Charge
   Smart TimeLock
   Smart Recovery 2
   System Information Viewer
   USB Blocker
2. Support for Q-Flash
3. Support for Smart Switch
4. Support for Xpress Install

Bundle Software

Norton® Internet Security (OEM version)
Intel® Rapid Start Technology
Intel® Smart Connect Technology
Intel® Smart Response Technology

Operating System

Support for Windows 8.1/8/7

Form Factor

ATX Form Factor; 30.5cm x 22.5cm
