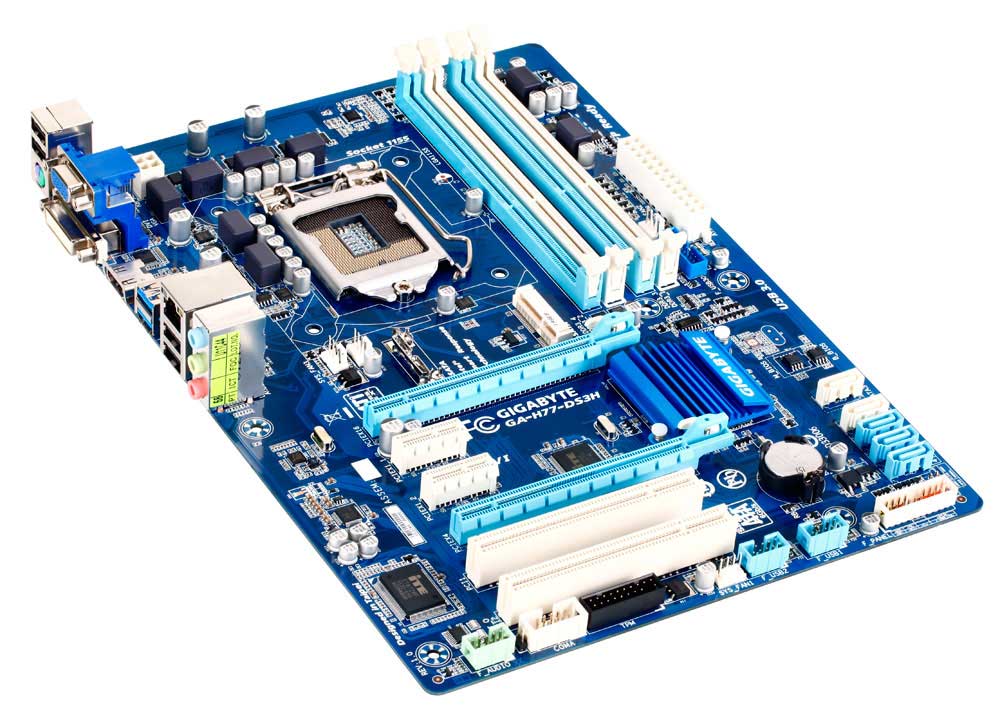

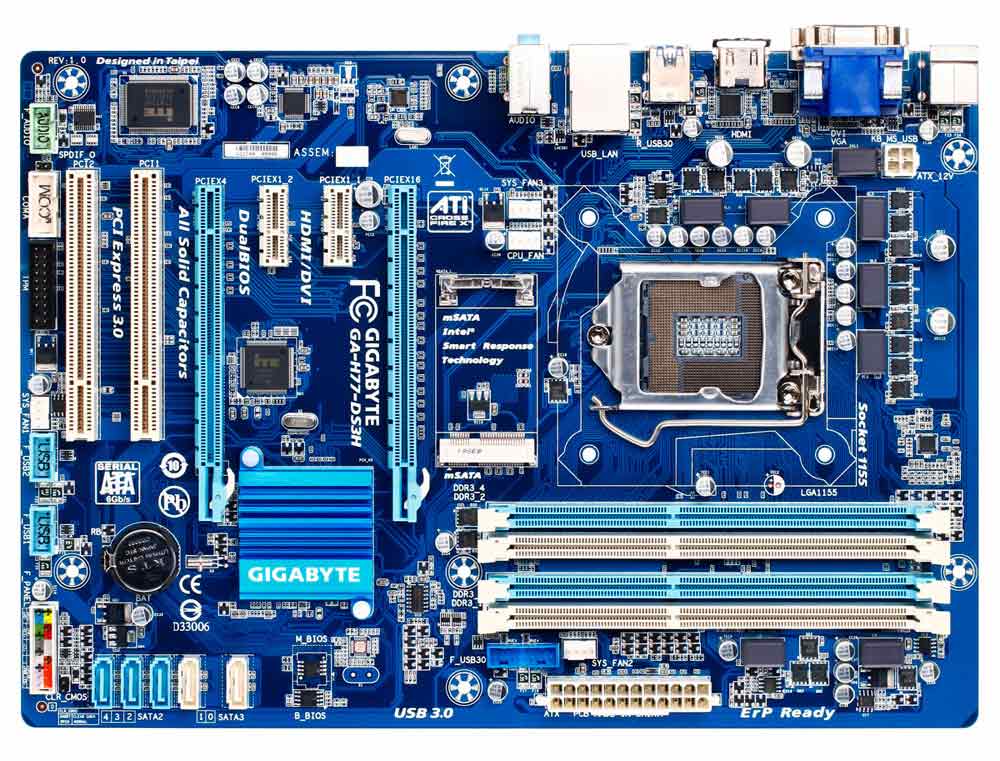

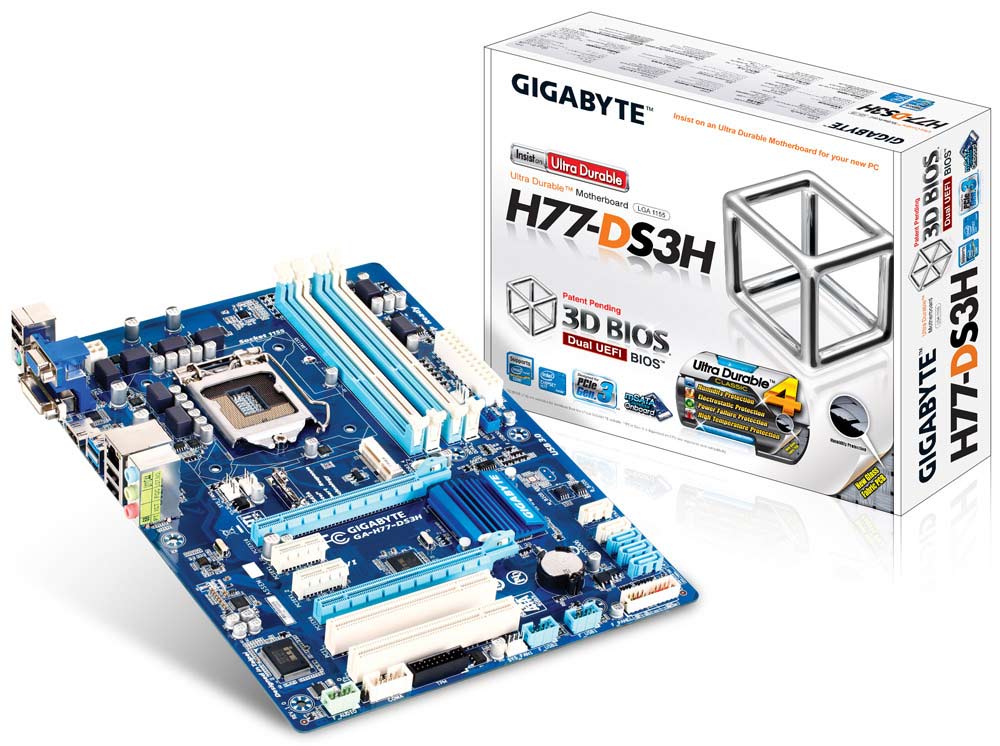

Gigabyte GA-H77-DS3H

Buy Gigabyte GA-H77-DS3H online on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Gigabyte products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

GIGABYTE 3D BIOS (patent pending)

The revolutionary GIGABYTE 3D BIOS application is based on GIGABYTE UEFI DualBIOS™ technology and is available to consumers in two exclusive modes of interaction, providing enthusiast and mainstream users with a choice of unique and powerful graphical interfaces.

UEFI DualBIOS™ Technology

At the heart of this exciting 3D BIOS technology is a pair of physical BIOS ROMs containing GIGABYTE's exclusive in-house designed UEFI BIOS technology. With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS™ makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems.

3D Mode

Designed to provide an extremely streamlined and user-friendly BIOS environment, GIGABYTE's exclusive 3D mode offers a fully interactive and illustrative GUI that allows users to easily and intuitively make key adjustments to the UEFI BIOS settings for optimum performance. 3D Mode allows novice or casual users to more clearly understand the areas of the motherboard that are being affected through the BIOS settings, gaining a clearer understanding of the BIOS functionality.

Advanced Mode

Advanced mode provides a more comprehensive UEFI BIOS environment that is designed specifically for overclockers and power users who want maximum control over their PC's hardware. GIGABTYE's signature M.I.T. tuning technology can be found alongside fully configurable parameters for GIGABTE's all new digital 3D Power engine. In short, advanced mode combines the signature GIGABYTE BIOS expertise you've come to expect, wrapped a slick, new and optimized graphical UEFI interface.

3rd Generation Intel® Core™ processors

New 3rd generation Intel® Core™ processors are based on the new 3rd generation Intel® Core™ processor architecture, manufactured using the latest 22nm process to create a visually optimized processor platform. Based on the mature LGA 1155 socket, 3rd generation Intel® Core™ processors feature up to four high-performance 64-bit processor cores and 8MB of L3 cache Smart Cache, and overall performance when you need it most.

Designed for PCI Express Gen.3 Support

GIGABYTE 7 series motherboards take advantage of the latest connectivity and expansion bus technologies available on the Intel platform. The 3rd generation Intel® Core™ processor platform debuts the new PCI Express gen. 3.0 expansion bus, allowing users to take advantage of the next generation, high-bandwidth discrete graphics card solutions.
* PCIE Gen.3 is dependent on CPU and expansion card compatibility.

GIGABYTE Ultra Durable™ 4 Classic

Humidity Protection

Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.

Electrostatic Protection

GIGABYTE Ultra Durable 4 Classic motherboards feature High ESD Resistance ICs which help protect the motherboard against electrostatic discharge.

Power Failure Protection

Permanent damage from power surge or failure during BIOS update, can be avoided with GIGABYTE DualBIOS, which automatically enables a secondary, back up BIOS.
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.

High Temperature Protection

GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures, providing up to 50,000* hour component lifespan.

Intel® Rapid Start Technology

Intel® Rapid Start Technology™ gets your device up and running faster from even the deepest sleep. This means users will be able to experience almost zero power draw from their PC, but be able to resume Windows® 7 is a few seconds without having the PC go through a full system boot. With Intel® Rapid Start Technology the previous session resumes to the exact as it was, so that applications are still in the same state and no application data is lost.

Intel® Smart Connect Technology

Intel® Smart Connect Technology means that your email, favorite apps, and social networks are continually and automatically updated even when the system is asleep. No more waiting for the latest world news or friends' updates to be delivered—just press the 'on' button and you're up-to-date and ready to go.

Auto Sync with Cloud

No manual interaction required to synchronize with cloud services.

Data Ready

Email, social media, and cloud apps always updated and available at power on.

Onboard mSATA Support

GIGABYTE 7 series motherboards feature an onboard mSATA slot allowing users to easily take advantage of advanced SSD-based technologies like Intel® Smart Response and Intel® Rapid Start. Mounting an affordable, low capacity mSATA SSD directly onto your motherboard can enhance your PC's performance with better overall desktop responsiveness, faster boot times and faster system resume from 'Suspend to Disk' and 'Standby' modes.

GIGABYTE EZ Smart Response

The GIGABYTE EZ Smart Response utility is a simple application that allows users to quickly and easily configure their system for Intel® Smart Response Technology. In the past, enabling Intel® Smart Response meant users needed to enter the BIOS in order to configure their system for RAID mode, which then required a complete reinstall of the operating system. Once that processes was complete, users then needed to install the Intel® Rapid Storage Utility as well as configure Intel's Smart Response Technology. GIGABYTE EZ Smart Response does all of this automatically, without users having to perform a complicated install process. This allows them to quickly and effortlessly enjoy a significant boost in system performance.

GIGABYTE EZ Setup

GIGABYTE EZ Setup is an exclusive application that allows GIGABYTE 7 series users to more easily configure and setup three important Intel Technologies on their new system; Intel® Smart Response, Intel® Rapid Start and Intel® Smart Connect. GIGABYTE EZ Setup makes it far easier to enjoy these technologies by greatly reducing the number of steps involved to install setup and configure your system.

* EZ Setup utility is available for download from the official GIGABYTE website.

Enhanced Built-in Visuals

With updated and improved processor graphics and multimedia, 3rd generation Intel® Core™ processors offer you the best possible media and entertainment experience. Native support for multiple digital displays, plus DirectX 11 capable graphics, Intel® Quick Sync Video 2.0 and Intel® HD Graphics 4000/2500 ensure you can enjoy new levels of 3D gaming and HD content manipulation.

Intel® Quick Sync 2.0

Faster media encoding performance
Saves your valuable time when create and edit video, synchronize it with other devices, and share it–at home and on the internet. Intel Quick Sync Video uses hardware on the processor, instead of software, to accelerate video encoding.

DirectX 11 Support

Better Visual Experience

Microsoft DirectX 11 provides eye-popping 3D visuals found for today's latest PC games and is designed to be more efficient, leverage the power of today's multi-core processors, and provide support for sophisticated shading and texturing techniques such as tessellation.

50,000 Hours Solid Capacitors

GIGABYTE Ultra Durable motherboards are equipped with solid capacitors. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.

Features

• GIGABYTE 3D BIOS (Dual UEFI)
• All new design of Ultra Durable 4 classic
• Supports 3rd Gen. Intel® 22nm CPUs and 2nd Gen. Intel® Core™ CPUs (LGA1155 socket)
• PCI Express Gen 3.0 support
• Industry's Leading All Solid Capacitor Design
• GIGABYTE 333™ Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power)
• Onboard mSATA slot for mSATA SSDs
• 2-way CrossFireX™ multi-GPU support
• HDMI/ DVI interface for smoother HD video playback
• Enhanced Intel HD Graphics 4000/2500 integrated with the processor
• GIGABYTE On/Off Charge™ for USB devices

Specifications

CPU

1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
2. L3 cache varies with CPU

   (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)

Chipset

Intel® H77 Express Chipset

Memory

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
   * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
2. Dual channel memory architecture
3. Support for DDR3 2200(OC)/1600/1333/1066 MHz memory modules
   * To support DDR3 1600 MHz, you must install an Intel 22nm CPU.
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules
   * To support XMP memory, you must install an Intel 22nm CPU.

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor:

1. 1 x D-Sub port
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
   * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 1920x1200

Audio

1. Realtek ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out

LAN

Atheros GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
   * The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 2 x PCI Express x1 slots
   (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
4. 2 x PCI slots

Multi-Graphics Technology

Support for AMD CrossFireX™ technology

Storage Interface

Chipset:

1. 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
2. 3 x SATA 3Gb/s connectors (SATA2 2/3/4) supporting up to 3 SATA 3Gb/s devices
3. 1 x mSATA connector
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.

USB

Chipset:

1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
   * In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
2. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
3 x SATA 3Gb/s connectors
1 x mSATA connector
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x USB 3.0/2.0 header
1 x Clear CMOS jumper
1 x serial port header
1 x Trusted Platform Module (TPM) header

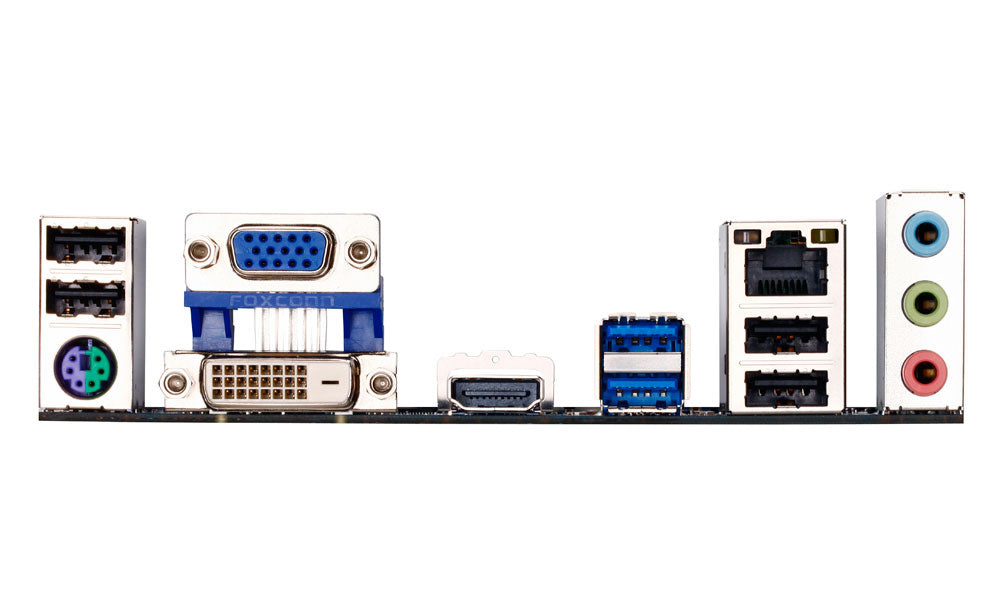

Back Panel Connectors

1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

BIOS

2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for Xpress Recovery2
Support for eXtreme Hard Drive (X.H.D)
Support for Auto Green
Support for ON/OFF Charge
Support for Q-Share
Support for LAN Optimizer (Intelligent optimization network management tool)

Bundle Software

Norton Internet Security (OEM version)
Intel® Smart Response Technology
Intel® Rapid Start Technology
Intel® Smart Connect Technology

Operating System

Support for Microsoft Windows 8/7/XP

Form Factor

ATX Form Factor; 30.5cm x 21.5cm
