Gigabyte GA-H61M-DS2

Buy Gigabyte GA-H61M-DS2 online on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Gigabyte products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

GIGABYTE Ultra Durable™ 4 Classic

Humidity Protection

Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.

Electrostatic Protection

GIGABYTE Ultra Durable 4 Classic motherboards feature High ESD Resistance ICs which help protect the motherboard against electrostatic discharge.

Power Failure Protection

Permanent damage from power surge or failure during BIOS update, can be avoided with GIGABYTE DualBIOS, which automatically enables a secondary, back up BIOS.
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.

High Temperature Protection

GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures, providing up to 50,000* hour component lifespan.

Support Intel 22nm processors

GIGABYTE motherboards support Intel 22nm processors.

Designed for PCI Express Gen.3 Support


The GIGABYTE motherboard is fully configured to provide gamers with the latest Gen.3 PCI Express technology, delivering maximum data bandwidth for forthcoming discrete graphics cards.
* PCIe Gen. 3 is dependent on CPU and expansion card compatibility.

GIGABYTE Touch BIOS™ (Patent Pending)

An Innovative New Way to Modify BIOS Settings

Navigating through the BIOS to change system settings can be a daunting task for users not familiar with control “F”functions and mouse-less navigation. While some EFI BIOS try to address this with a mouse friendly environment, many implementations still lack a certain ease-of-use necessary for most people. With GIGABYTE Touch BIOS™, GIGABYTE engineers have completely re-imagined how users can interact with their BIOS, allowing for a more intuitive user experience. In fact, with a touch screen monitor, GIGABYTE Touch BIOS™ is as easy to use as most apps on your iPhone.

New 100% Hardware VRD 12 Compliant CPU Power Design

GIGABYTE 6 series motherboards incorporate an Intel® approved Intersil PWM controller that is VRD 12 (Voltage Regulator Down) compliant. This means that it offers new features that include SerialVID (SVID) which transfers power management information between the processor and voltage regulator controller, allowing more robust and efficient signaling control between the CPU and PWM controller – hence, delivering a more energy efficient platform.

Intel® HD Graphics Core 2000/3000 Enhanced Visual Features

Intel® Quick Sync Video

Intel® Quick Sync Video provides breakthrough media processing for incredibly fast editing and sharing.

Intel® InTru™ 3D

2nd Generation Intel® Core™ Processors offer an outstanding Blu-Ray Stereo 3D experience in full high definition resolution (1080p) with HDMI 1.4.

Intel® Advanced Vector Extensions (AVX)

Increases the performance of Accelerated Floating Point and Vector Computing Intensive Applications with minimal power gains.

Features

• All new design of Ultra Durable 4 classic
• Supports 3rd Gen. Intel® 22nm CPUs and 2nd Gen. Intel® Core™ CPUs (LGA1155 socket)
• Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch
• Supports 3rd generation PCI-Express interface
• Industry's Leading All Solid Capacitor Design
• Touch BIOS™ delivers No Need for Reboot to more easily modify BIOS settings
• Enhanced Intel HD Graphics 2000/3000 integrated with the processor
• Innovative Smart 6 technology for smarter PC management
• DualBIOS™ protection with 3TB+ HDD boot up capability

Specifications

CPU

1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
2. L3 cache varies with CPU

(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)

Chipset

Intel® H61 Express Chipset

Memory

1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
   * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
2. Dual channel memory architecture
3. Support for DDR3 1333/1066/800 MHz memory modules
4. Support for non-ECC memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor:

1. 1 x D-Sub port

Audio

1. Realtek ALC887 audio codec
2. High Definition Audio
   2/4/5.1/7.1-channel

To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

1 x Atheros GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16
   (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
   * PCIE Gen.3 is dependent on CPU and expansion card compatibility.
2. 2 x PCI Express x1 slots
   (The PCI Express x1 slots conform to PCI Express 2.0 standard.)


Multi-Graphics Technology

Support for AMD CrossFireX™ technology

Storage Interface

Chipset:

1. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

USB

Chipset:

1. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x parallel port header
1 x serial port header
1 x clearing CMOS jumper

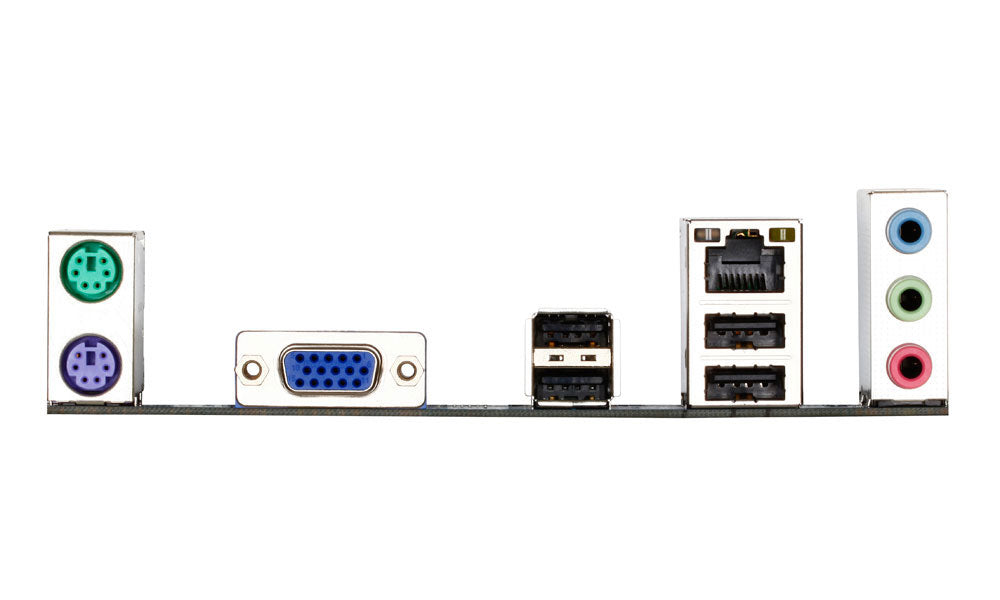

Back Panel Connectors

1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller

iTE IT8728 chip

H/W Monitoring

System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU fan speed control

* Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.

BIOS

2 x 32 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Smart 6™
Support for Auto Green
Support for ON/OFF Charge
Support for Cloud OC
Support for 3TB+ Unlock
Support for Q-Share

Bundle Software

Norton Internet Security (OEM version)

Operating System

Support for Microsoft Windows 8/7/XP

Form Factor

Micro ATX Form Factor; 22.6cm x 17.4cm
