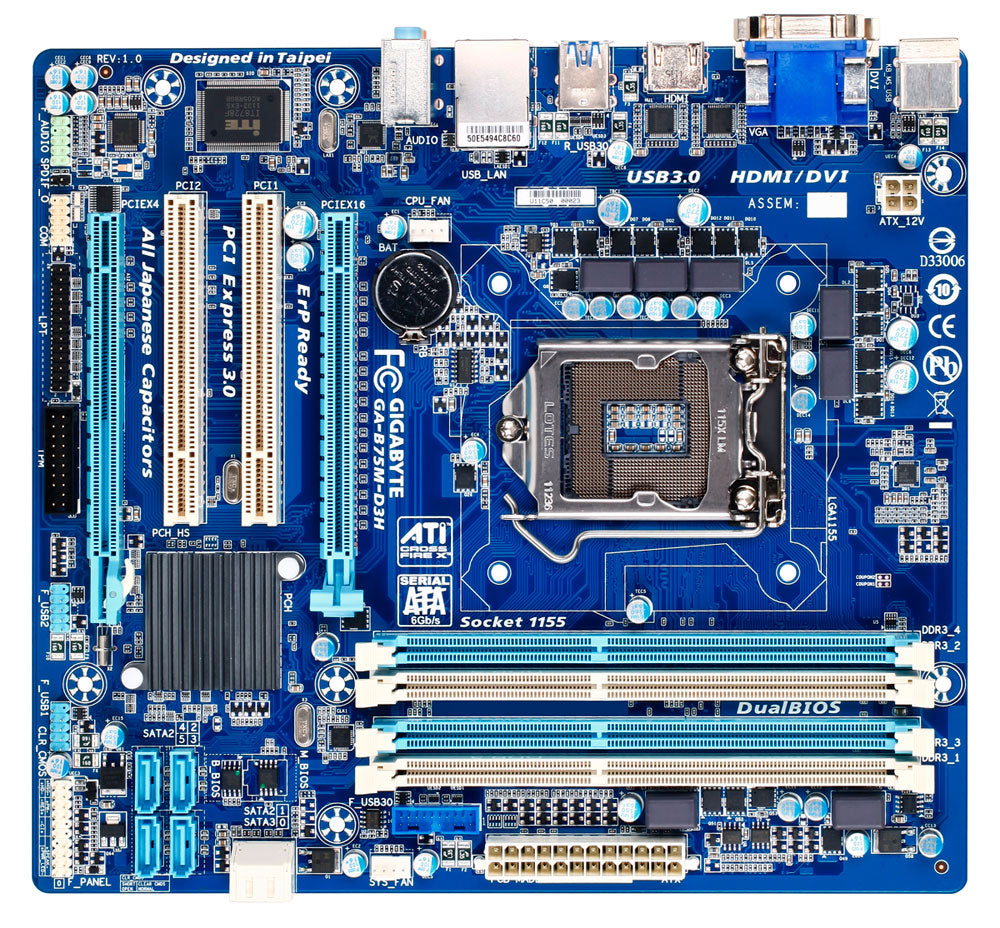

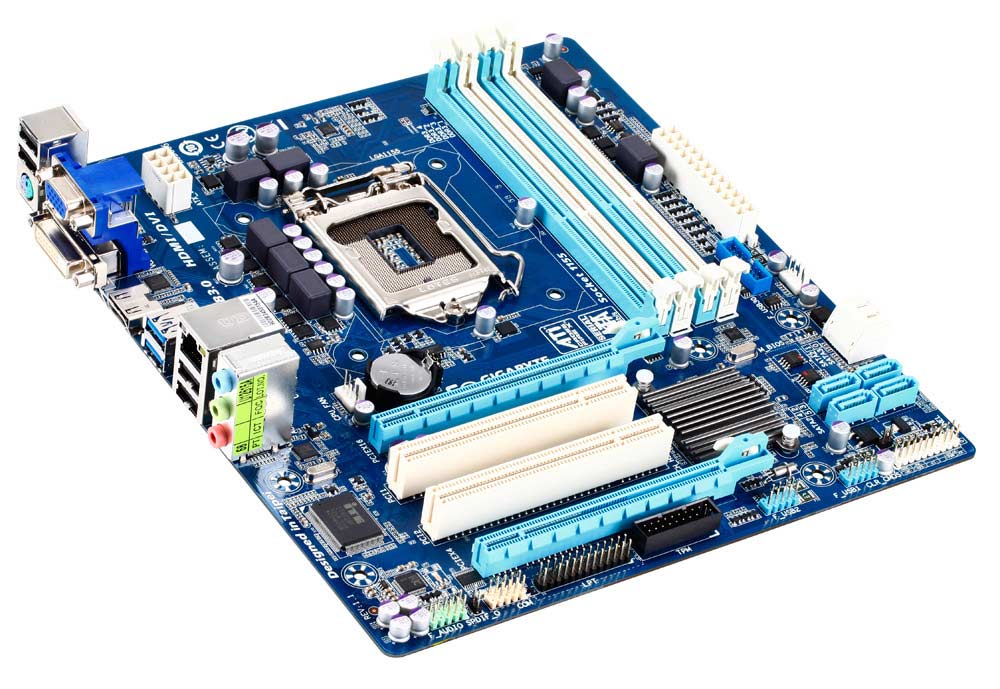

Gigabyte GA-B75M-D3H

Buy Gigabyte GA-B75M-D3H online on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Gigabyte products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Intel® Small Business Advantage

GIGABYTE B75 series motherboards possess a range of features that are designed to offer vastly improved and simplified control over unmanaged IT infrastructure, with specific focus on security, data backup and raising productivity levels overall

GIGABYTE Ultra Durable™ 4 Classic

Humidity Protection

Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.

Electrostatic Protection

GIGABYTE Ultra Durable 4 Classic motherboards feature High ESD Resistance ICs which help protect the motherboard against electrostatic discharge.

 Power Failure Protection

Permanent damage from power surge or failure during BIOS update, can be avoided with GIGABYTE DualBIOS, which automatically enables a secondary, back up BIOS.
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.

High Temperature Protection

GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures, providing up to 50,000* hour component lifespan.

3rd Generation Intel® Core™ processors

New 3rd generation Intel® Core™ processors are based on the new 3rd generation Intel® Core™ processor architecture, manufactured using the latest 22nm process to create a visually optimized processor platform. Based on the mature LGA 1155 socket, 3rd generation Intel® Core™ processors feature up to four high-performance 64-bit processor cores and 8MB of L3 cache Smart Cache, and overall performance when you need it most.

Designed for PCI Express Gen.3 Support

GIGABYTE 7 series motherboards take advantage of the latest connectivity and expansion bus technologies available on the Intel platform. The 3rd generation Intel® Core™ processor platform debuts the new PCI Express gen. 3.0 expansion bus, allowing users to take advantage of the next generation, high-bandwidth discrete graphics card solutions.
* PCIE Gen.3 is dependent on CPU and expansion card compatibility.

Intel® Rapid Start Technology

Intel® Rapid Start Technology™ gets your device up and running faster from even the deepest sleep. This means users will be able to experience almost zero power draw from their PC, but be able to resume Windows® 7 is a few seconds without having the PC go through a full system boot. With Intel® Rapid Start Technology the previous session resumes to the exact as it was, so that applications are still in the same state and no application data is lost.

Intel® Smart Connect Technology

Intel® Smart Connect Technology means that your email, favorite apps, and social networks are continually and automatically updated even when the system is asleep. No more waiting for the latest world news or friends' updates to be delivered—just press the 'on' button and you're up-to-date and ready to go.

Auto Sync with Cloud

No manual interaction required to synchronize with cloud services.

Data Ready

Email, social media, and cloud apps always updated and available at power on.

Intel® Quick Sync 2.0

Faster media encoding performance

Saves your valuable time when create and edit video, synchronize it with other devices, and share it–at home and on the internet. Intel Quick Sync Video uses hardware on the processor, instead of software, to accelerate video encoding.

DirectX 11 Support

Better Visual Experience

Microsoft DirectX 11 provides eye-popping 3D visuals found for today's latest PC games and is designed to be more efficient, leverage the power of today's multi-core processors, and provide support for sophisticated shading and texturing techniques such as tessellation.

Features

• All new design of Ultra Durable 4 classic
• Supports 3rd Gen. Intel® 22nm CPUs and 2nd Gen. Intel® Core™ CPUs (LGA1155 socket)
• Dual UEFI BIOS protection with 3TB+ HDD boot up capability
• PCI Express Gen 3.0 support
• Industry's Leading All Japanese Solid Capacitor Design
• GIGABYTE 333™ Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power)
• 2-way CrossFireX™ multi-GPU support
• HDMI/ DVI interface for smoother HD video playback
• GIGABYTE On/Off Charge™ for USB devices

Specifications

CPU

1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
2. L3 cache varies with CPU

(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)

Chipset

Intel® B75 Express Chipset

Memory

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
   * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR3 2200(OC)/1600/1333/1066 MHz memory modules
   * To support DDR3 1600 MHz, you must install an Intel® 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz.
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules
   * To support XMP memory, you must install an Intel® 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz.

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor:

1. 1 x D-Sub port
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
   * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 1920x1200

Audio

1. Realtek ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out

LAN

Realtek GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
   * Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
   (The PCIEX4 slot conforms to PCI Express 2.0 standard.)
3. 2 x PCI slots

Multi-Graphics Technology

Support for AMD CrossFireX™ technology

Storage Interface
1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device
5 x SATA 3Gb/s connectors (SATA2 1~5) supporting up to 5 SATA 3Gb/s devices

USB

Chipset:

Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x SATA 6Gb/s connector
5 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper

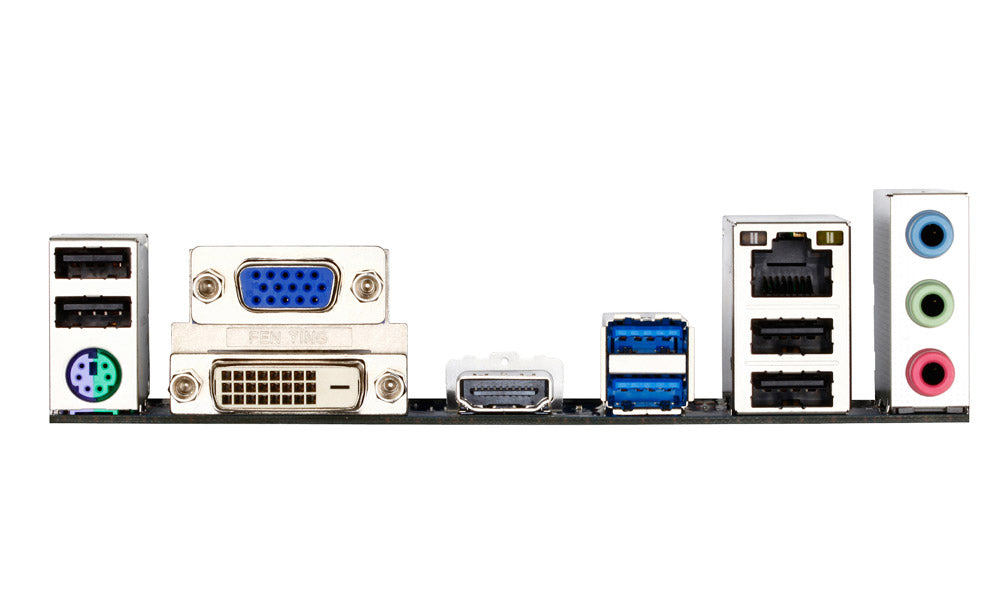

Back Panel Connectors

1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control

Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

BIOS

2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Auto Green
Support for ON/OFF Charge
Support for Q-Share
Support for EZ Setup

Bundle Software

Norton Internet Security (OEM version)
Intel® Rapid Start Technology
Intel® Smart Connect Technology
Intel® Small Business Advantage

Operating System

Support for Microsoft® Windows 8/7/XP

Form Factor

Micro ATX Form Factor; 24.4cm x 22.0cm
