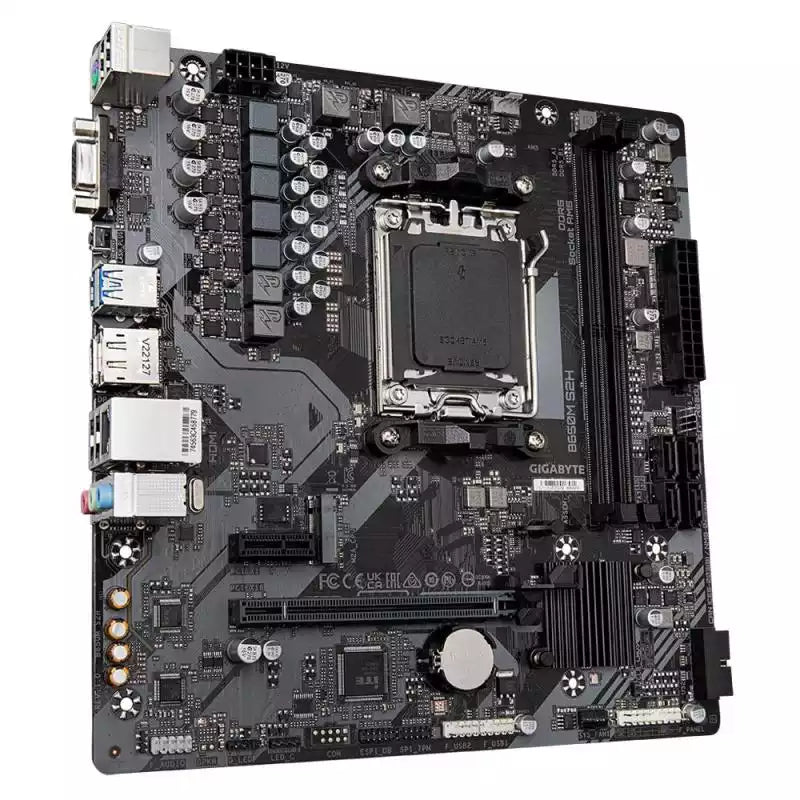

Gigabyte B650M S2H AMD Motherboard

Buy Gigabyte B650M S2H AMD Motherboard online at Rs. 44990. Buy complete range of Motherboards on Vmart.pk, We Offer home delivery all over Pakistan.

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs

GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD's new generation CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.

Secure Mode

MB provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.

- GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control

- Transforms Native DDR5 memory module to Overclocked DDR5 memory

- Increases DDR5 memory overclocking performance and capability

- Supports all PMIC vendors for maximum compatibility

Programmable Mode

GIGABYTE’s exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and control Native DDR5 voltage with wide range.

All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.

GIGABYTE AM5 MB supports both AMD EXPO™ and Intel® XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.

Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.

- SPD Re-defined or retrieve from database

- Performance Simulation

- Save/Load Profile

- Overclocked Performance

- Profile Clearance

Define and create your own SPD profile into Native, AMD EXPO™ and Intel® XMP 3.0 memory modules. One user-defined profile can be saved, loaded either locally or from/to an external storage device.

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

- STEP 1: Plug 24pin & 8pin power supply cable on motherboard

- STEP 2: Download motherboard BIOS file and rename to ""gigabyte.bin"", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port

- STEP 3: Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

- High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

- Precision Control: Multiple temperature/fan speed control points for precise fan curve

- Dual Curve Mode: Slope/Stair dual mode for different user scenario

- Fan Stop: Fan can stop completely below users' specified temperature point

- Improve fan curve UI: We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.

- Slope/Stair dual graph mode: Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.

- Manual Input: For advanced users, we provide fan speed manual input for more precise control.

- EZ Tuning: Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.

- Fan curve profile: Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.

- Unified software platform for all Gigabyte supported products

- Intuitive user interface for an eased experience

- Modularized control components only for installed hardware

- Auto update function to keep system up to date and support future products

Gigabyte B650M S2H. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 5 7th gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Component for

PC

Wi-Fi

N

Processor socket

Socket AM5

Processor manufacturer

AMD

USB 2.0 ports quantity

4

Maximum internal memory

96 GB

HDMI ports quantity

1

Supported memory types

DDR5-SDRAM

USB 2.0 connectors

2

Motherboard form factor

micro ATX

Motherboard chipset

AMD B650

BIOS type

UEFI AMI

Parallel processing technology support

Not supported

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

VGA (D-Sub) ports quantity

1

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Number of memory slots

2

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III
