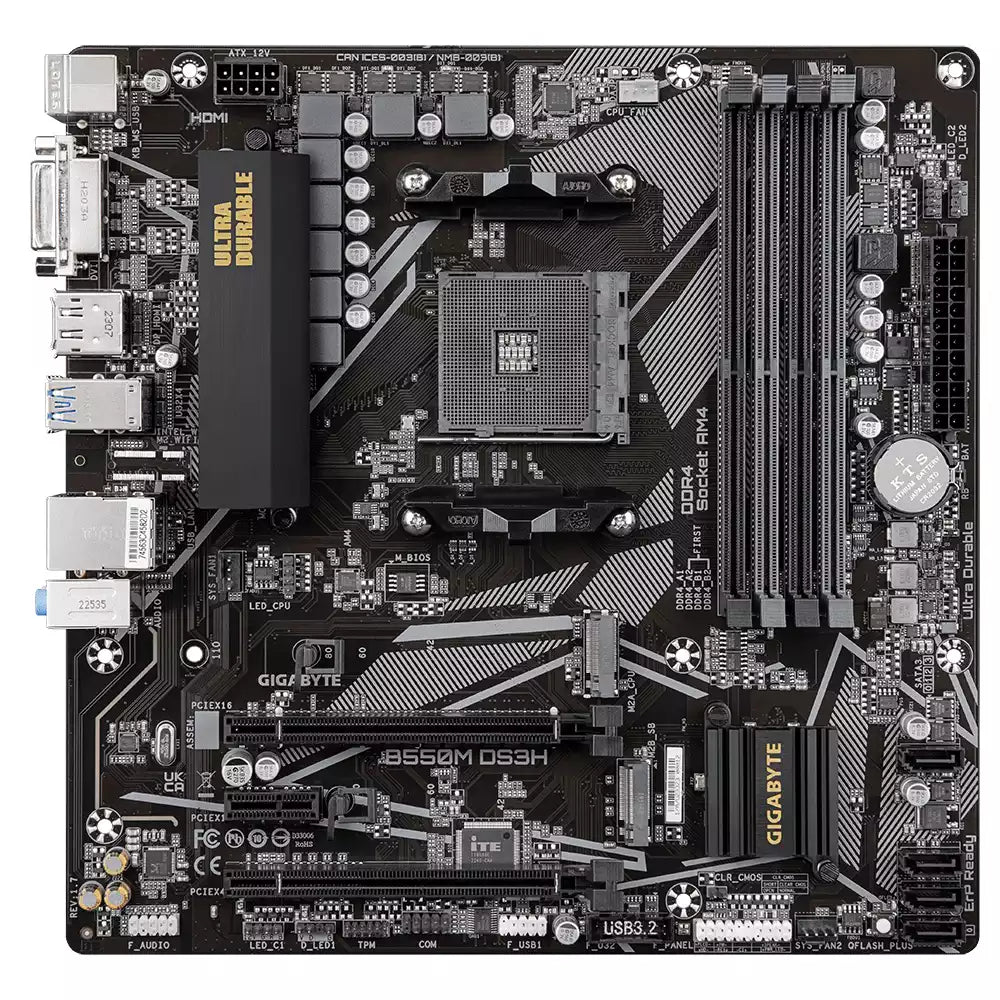

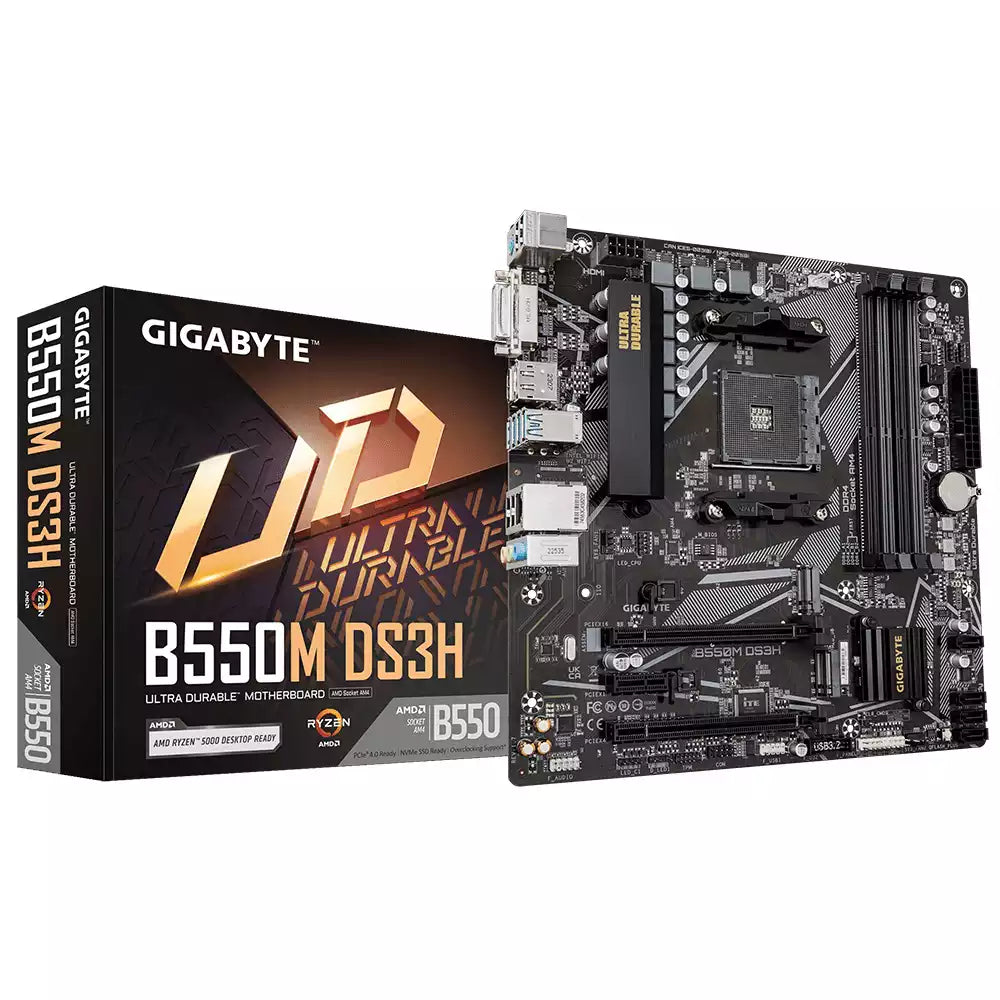

Gigabyte B550M DS3H (REV. 1.4) Motherboard

Buy Gigabyte B550M DS3H (REV. 1.4) Motherboard online at Rs. 39990. Buy complete range of Motherboards on Vmart.pk, We Offer home delivery all over Pakistan.

AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, Realtek GbE LAN, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs

5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs

Ultra Durable™ PCIe 4.0 Ready x16 Slot

Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors

High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality

Realtek GbE LAN with Bandwidth Management

Rear HDMI & DVI Support

RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips

Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Anti-Sulfur Resistors Design

CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

(Please refer “CPU Support List” for more information.)

Chipset AMD B550

Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics Integrated Graphics processors:

1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz

*Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode

AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset

Supporting PCIe 3.0 x1 mode

1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:

Supporting PCIe 3.0 x1 mode

Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs

3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:

Supporting SATA and PCIe 3.0 x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

Support for RAID 0, RAID 1, and RAID 10

USB CPU:

4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

2 x USB 3.2 Gen 1 ports available through the internal USB header

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)

1 x serial port header

1 x Clear CMOS jumper

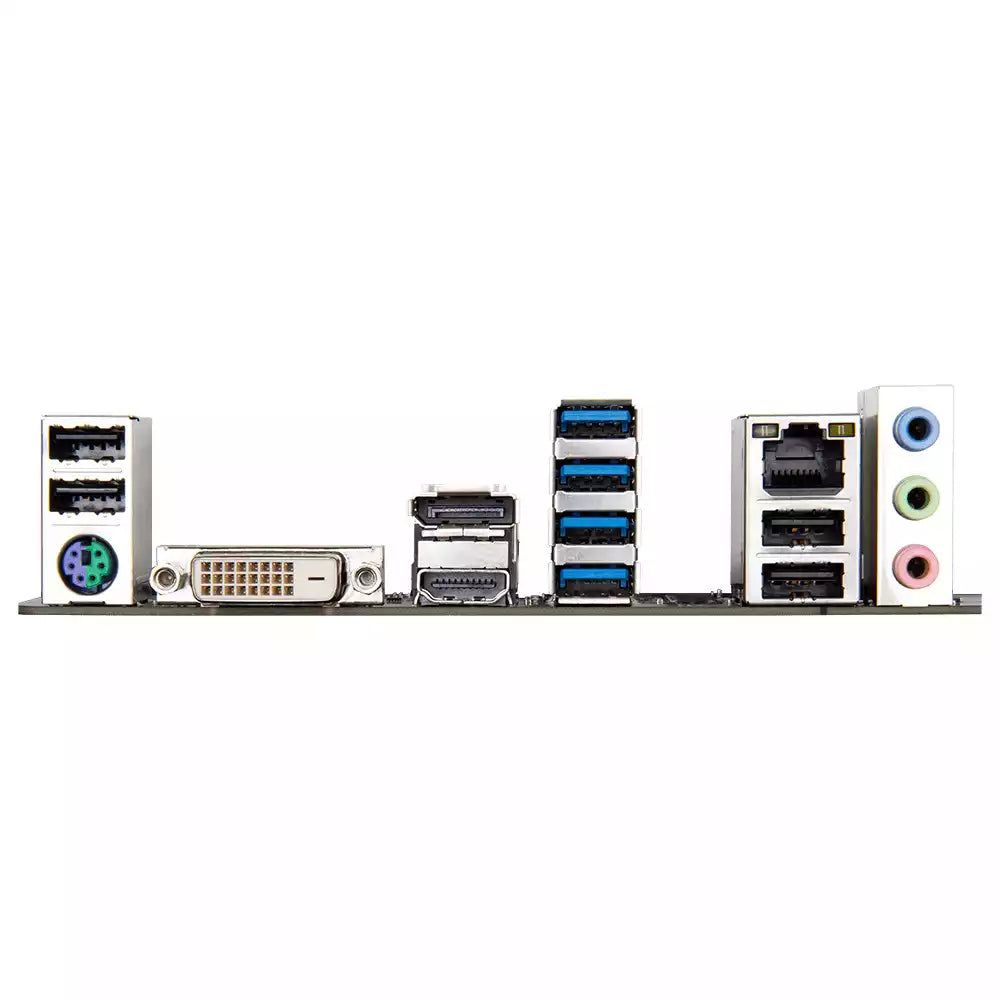

Back Panel Connectors

1 x PS/2 keyboard/mouse port

1 x DVI-D port

1 x DisplayPort

1 x HDMI port

4 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

EasyTune

Smart Backup

System Information Viewer

Support for Q-Flash

Support for Xpress Install

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Bundled Software

Norton® Internet Security (OEM version)

LAN bandwidth management software

Operating System Support for Windows 11 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm
