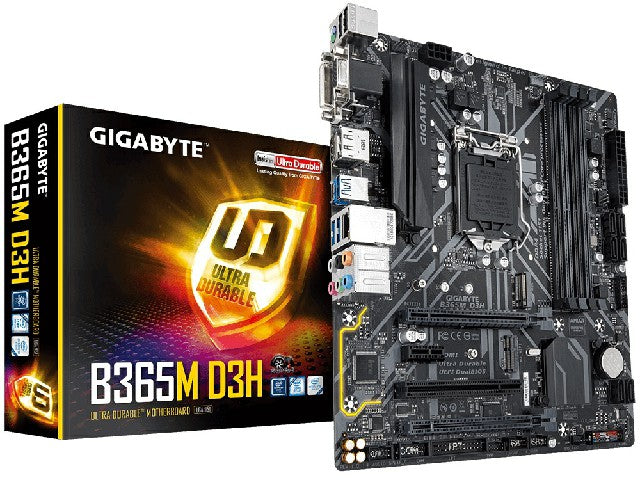

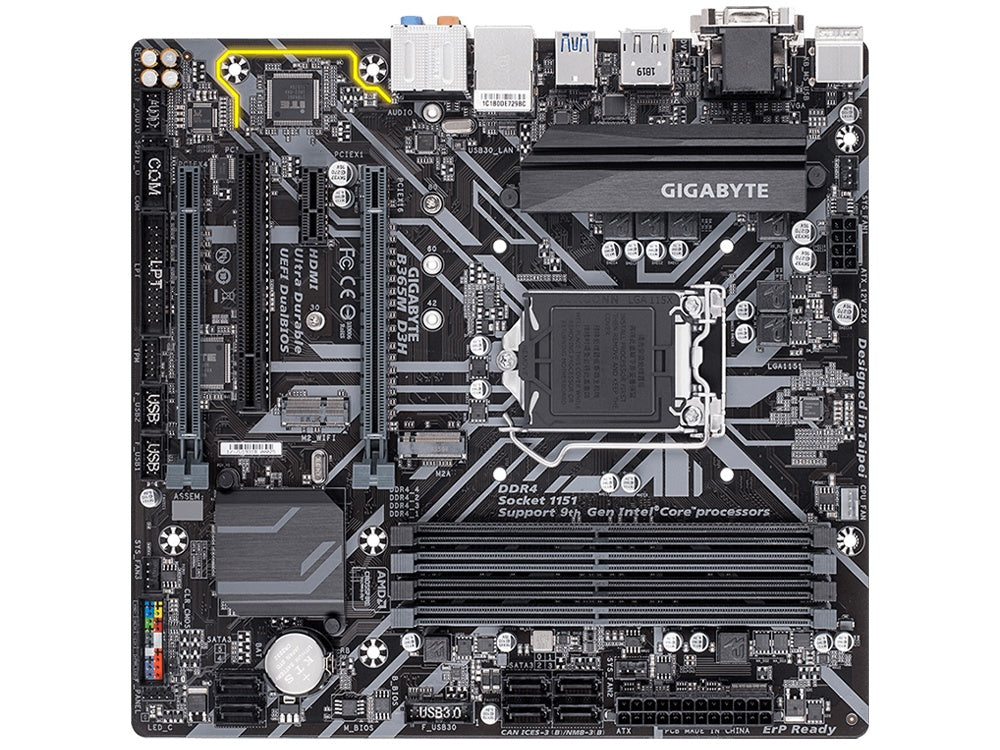

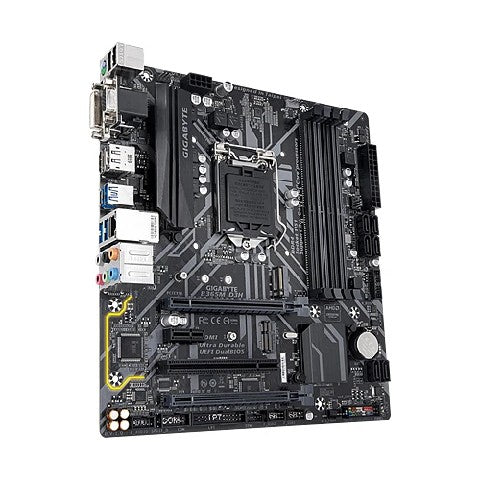

Gigabyte B365M-D3H Motherboard

Buy Gigabyte B365M-D3H Motherboard online at Low Price. Buy complete range of Motherboards on Vmart.pk, We Offer home delivery all over Pakistan.

GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.

All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.

Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. A total of 7 colors are available to make your system appearance unique!

GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated AMD Radeon® Graphics via HDMI.

HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

• Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
• L3 cache varies with CPU

• Intel® B365 Express Chipset

• 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
• Dual channel memory architecture
• Support for DDR4 2666/2400/2133 MHz memory modules
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

• Realtek® ALC892 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

• Intel® GbE LAN chip (10/100/1000 Mbit)

• 1 x PCI Express x16 slot, running at x16 (PCIEX16)
• 1 x PCI Express x16 slot, running at x4 (PCIEX4)
• 1 x PCI Express x1 slot
• 1 x PCI slot
• 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

• 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
• 5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
• 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 6 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB 3.1 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x serial port header
• 1 x parallel port header
• 1 x Clear CMOS jumper

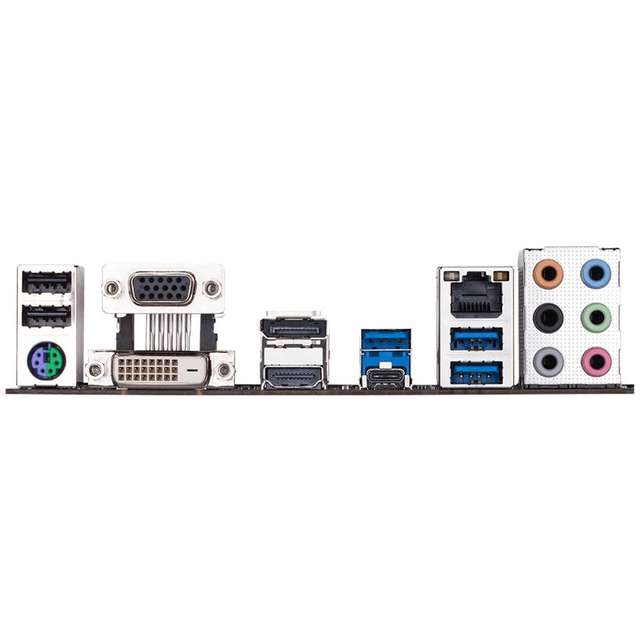

• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x DVI-D port
• 1 x DisplayPort
• 1 x HDMI port
• 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
• 3 x USB 3.1 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 6 x audio jacks

• iTE® I/O Controller Chip

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control

• 2 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• Support for DualBIOS™
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for APP Center
• @BIOS
• AutoGreen
• Cloud Station
• EasyTune
• Easy RAID
• Fast Boot
• Game Boost
• ON/OFF Charge
• Platform Power Management
• RGB Fusion
• Smart Backup
• Smart Keyboard
• System Information Viewer
• USB Blocker
• Support for Q-Flash
• Support for Xpress Install

• Norton® Internet Security (OEM version)
• cFosSpeed

• Support for Windows 10 64-bit

• Micro ATX Form Factor; 24.4cm x 23.0cm
