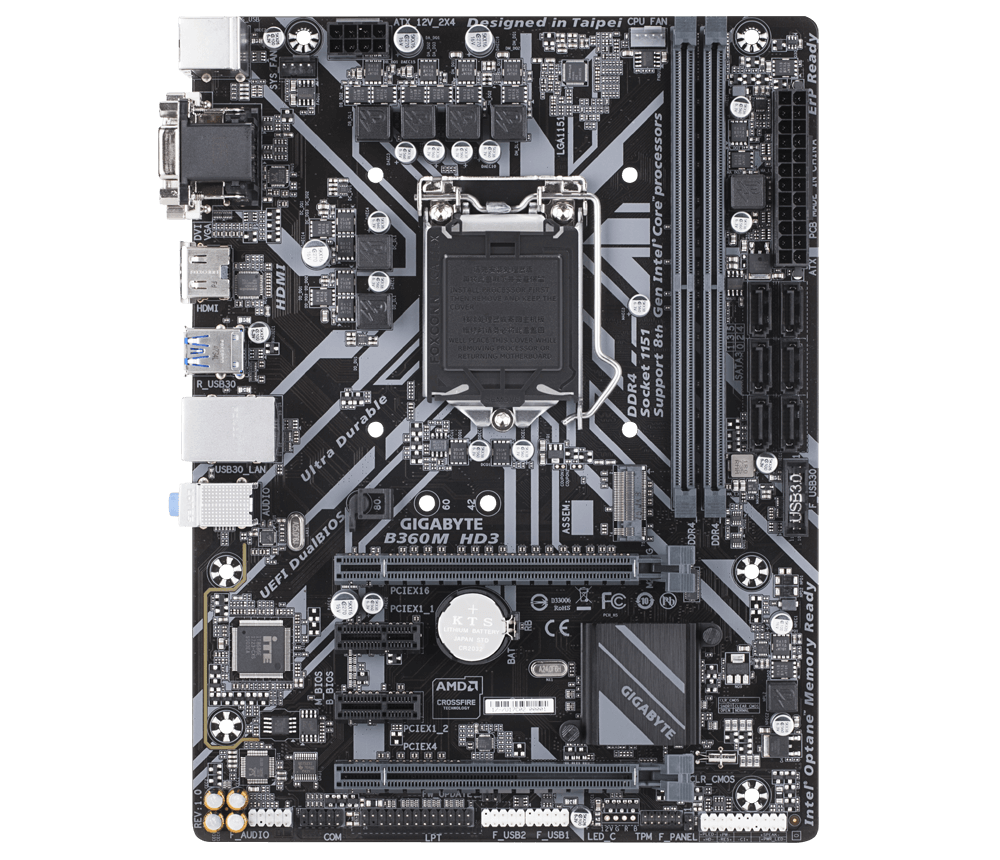

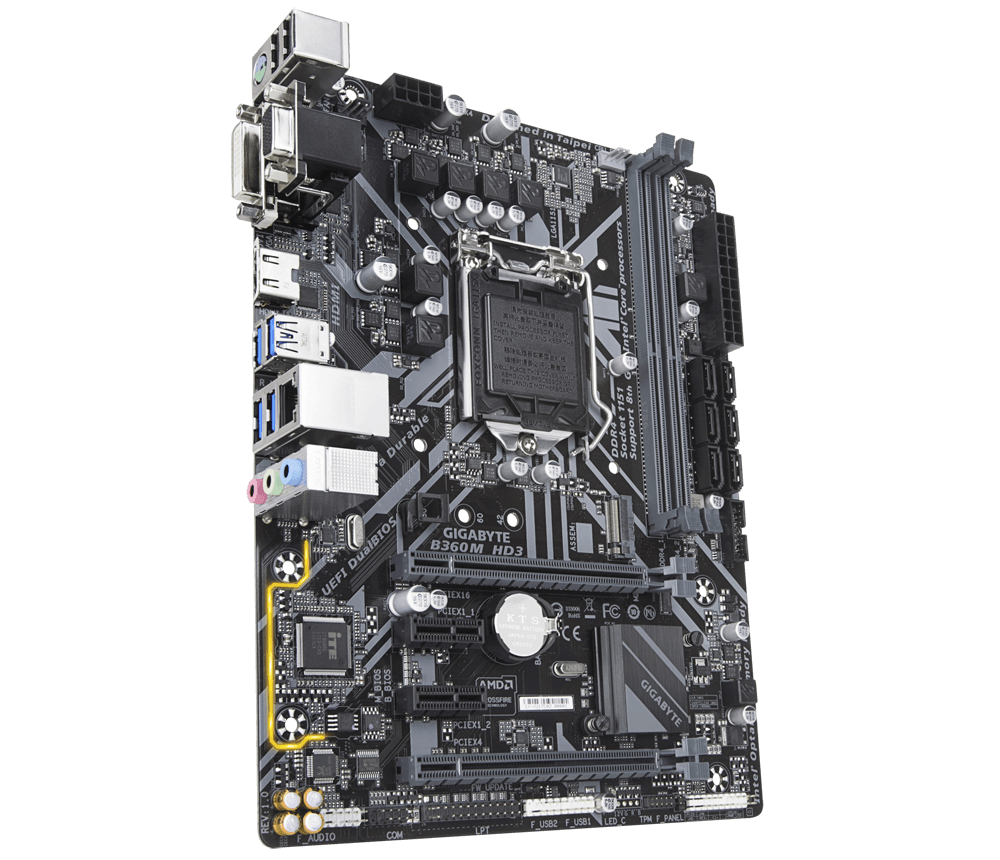

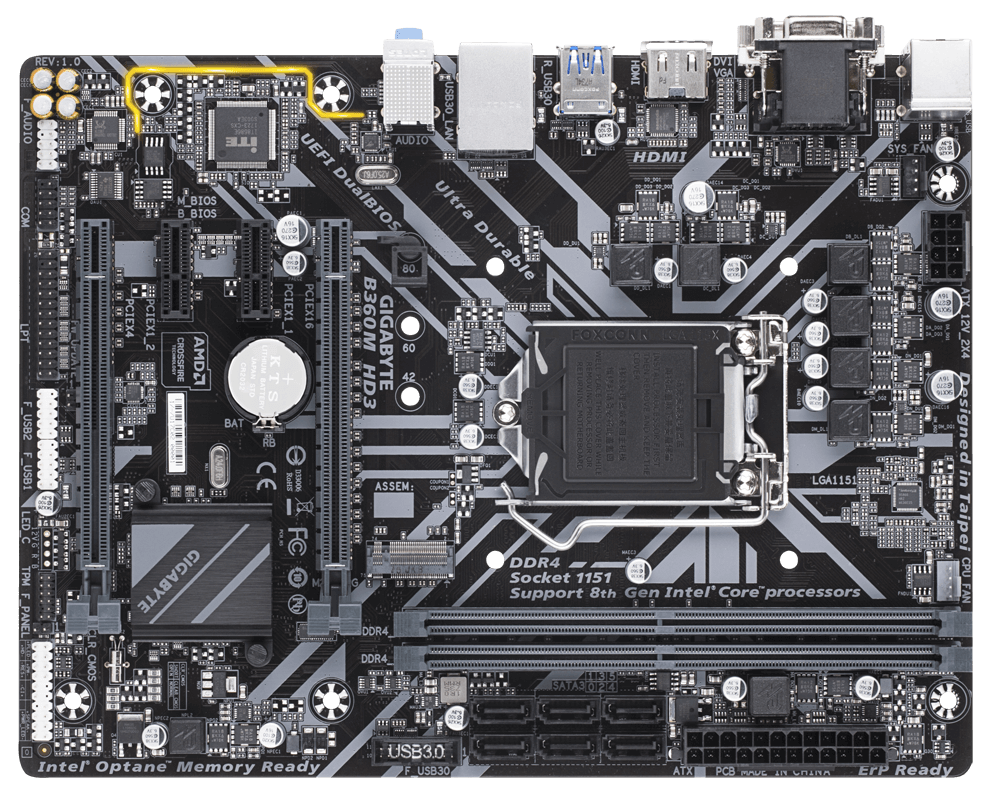

Gigabyte B360M HD3 Intel B360 Ultra Durable Motherboard

Buy Gigabyte B360M HD3 Intel B360 Ultra Durable Motherboard Online at Low Price. Buy complete range of Motherboards on Vmart.pk, We Offer home delivery all over Pakistan.

Gigabyte B360M HD3 Intel B360 Ultra Durable Motherboard

• Supports 8th Gen Intel® Core™ Processors

• Dual Channel Non-ECC Unbuffered DDR4

• New Hybrid Digital PWM Design

• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

• Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface

• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

• CEC 2019 Ready, Save the Power as Easy as One Click

• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

• Anti-Sulfur Resistors Design

• Ultra Durable™ 15KV Surge LAN Protection

• Intel® Optane™ Memory Ready

• GIGABYTE UEFI DualBIOS™

CONNECTIVITY

Exclusive Realtek 8118 Gaming LAN

High Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

NVMe PCIe Gen3 x4 2280 M.2 Connector (Up to 32 Gb/s)

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

PERFORMANCE FUELED BY OPTANE

The H370/B360 Platform supports Intel's latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.

High Definition Digital Outputs

Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.

COOLING

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Intelligent Fan Control Design

Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.

All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage scenario.

For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

PERFORMANCE

• Immersive VR

• Gaming Experience

• VR requires more performance than Full HD graphics for a steady 90FPS or greater.

• Only Gaming PCs can provide the best VR experience.

• Recommended configuration for VR Gaming PC*

• Graphics Card: NVIDIA GTX 1060 / AMD RX 480 or greater, Compatible HDMI 1.4 video output.

• CPU: Intel i5 equivalent or greater

• Motherboard: GIGABYTE H370 / B360 / H310 series motherboards

• Memory: 8GB RAM or greater

• USB Ports: 3x USB 3.0 ports plus 1x USB 2.0 port or greater

• OS: Windows 10 64-bit or newer

2-Way CrossFire™ Multi Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

* Graphics Card not Included

AUDIO

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.

ULTRA DURABLE

GIGABYTE Patented Double Locking Bracket

DualBIOS™ Design

GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

GIGABYTE EXCELLENCE

CEC 2019 Ready

Save the power as easy as one click

CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel ® HD Graphics via HDMI.

HDMI™ - The Next Generation Multimedia Interface

HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

SPECS

CPU

• Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package

• L3 cache varies with CPU

• (Please refer "CPU Support List" for more information.)

Chipset

• Intel® B360 Express Chipset

Memory

• 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

Dual channel memory architecture

• Support for DDR4 2666/2400/2133 MHz memory modules

• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• Support for Extreme Memory Profile (XMP) memory modules

• * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.

• (Please refer "Memory Support List" for more information.)

Onboard Graphics

• Integrated Graphics Processor-Intel® HD Graphics support:

• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

• 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

• * The DVI-D port does not support D-Sub connection by adapter.

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

• * Support for HDMI 1.4 version and HDCP 2.2.

• Support for up to 3 displays at the same time

• Maximum shared memory of 1 GB

Audio

• Realtek® ALC887 codec

• High Definition Audio

• 2/4/5.1/7.1-channel

• * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

• Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

• 1 x PCI Express x16 slot, running at x16 (PCIEX16)

• * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

• 1 x PCI Express x16 slot, running at x4 (PCIEX4)

• 2 x PCI Express x1 slots

• (All of the PCI Express slots conform to PCI Express 3.0 standard.)

• Storage Interface Chipset:

• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

• 6 x SATA 6Gb/s connectors

• * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

• Intel® Optane™ Memory Ready

• Multi-Graphics Technology

• Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

USB Chipset:

• 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

• 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x CPU fan header

• 1 x system fan header

• 1 x M.2 Socket 3 connector

• 6 x SATA 6Gb/s connectors

• 1 x front panel header

• 1 x front panel audio header

• 1 x USB 3.1 Gen 1 header

• 2 x USB 2.0/1.1 headers

• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

• 1 x parallel port header

• 1 x serial port header

• 1 x Clear CMOS jumper

Back Panel Connectors

• 1 x PS/2 keyboard/mouse port

• 1 x D-Sub port

• 1 x DVI-D port

• 1 x HDMI port

• 4 x USB 3.1 Gen 1 ports

• 2 x USB 2.0/1.1 ports

• 1 x RJ-45 port

• 3 x audio jacks

I/O Controller

• iTE® I/O Controller Chip

• H/W Monitoring

• Voltage detection

• Temperature detection

• Fan speed detection

• Overheating warning

• Fan fail warning

• Fan speed control

• * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

• 2 x 128 Mbit flash

• Use of licensed AMI UEFI BIOS

• Support for DualBIOS™

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for APP Center

• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

• 3D OSD

• @BIOS

• AutoGreen

• Cloud Station

• EasyTune

• Fast Boot

• Game Boost

• ON/OFF Charge

• Platform Power Management

• RGB Fusion

• Smart Backup

• Smart Keyboard

• Smart TimeLock

• Smart HUD

• System Information Viewer

• USB Blocker

• V-Tuner

• Support for Q-Flash

• Support for Xpress Install

• Bundle Software

• Norton® Internet Security (OEM version)

• Realtek 8118 Gaming LAN bandwidth Control Utility

Operating System

• Support for Windows 10 64-bit

Form Factor

• Micro ATX Form Factor; 24.4cm x 18.5cm

Remark

• Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

• Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
