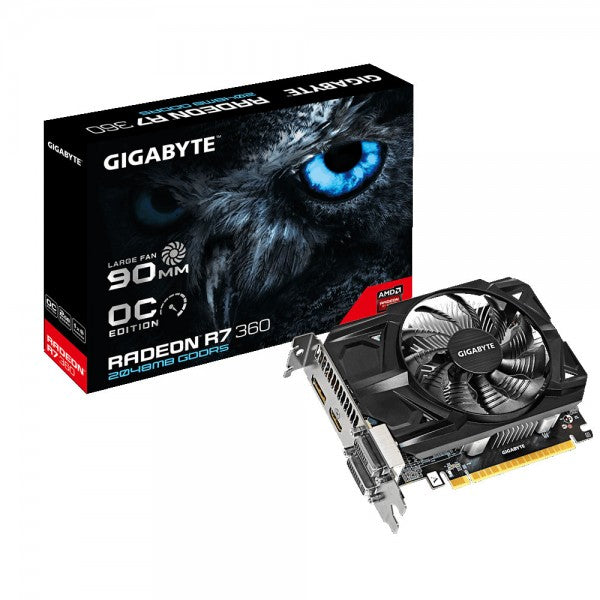

Gigabyte AMD Radeon GV-R736OC-2GD - 2GB

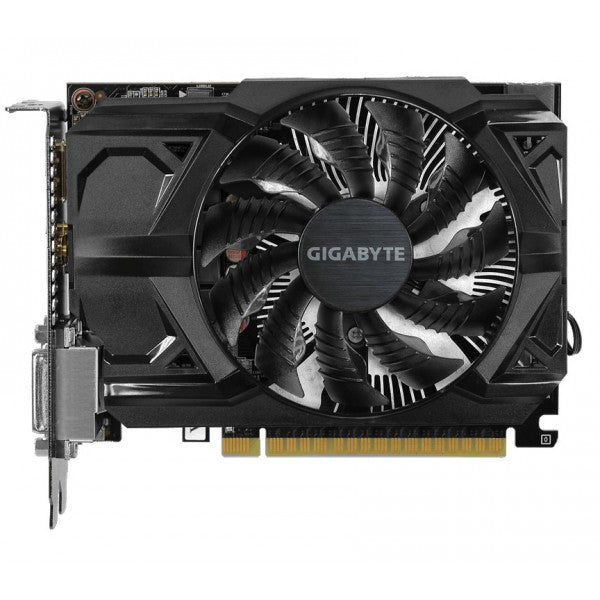

GIGABYTE custom-designed 90mm cooler

GIGABYTE custom-designed 90 mm cooler, with air flow optimized cover and aluminum base. The cooler can dissipate heat effectively from the GPU while keeping the fan at lower speed and noise

Unique Blade Fan Design

The airflow is spilt through the triangle design at the fan edge, and is guided smoothly through the fan by special 3D stripe curve design. At the same time, it effectively enhanced the cooling capacity while reducing air turbulence.

Ultra Durable 2

Ultra Cooling

Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

Low Power Loss

Ferrite Core Chokes hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

Longer Life

Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

OC GURU ll

Brand-new intuitive user interface helps you easily modify important settings and directly update driver and BIOS. Clock speeds, voltage, fan performance, and OSD setting can be monitored and tuned in real-time according to your own preference.

Key Features

• Powered by AMD Radeon™ R7 360 GPU
• Integrated with industry's best 2GB GDDR5 memory 128-bit memory interface
• OC Edition - Core Clock: 1200MHz (Standard: 1050MHz)

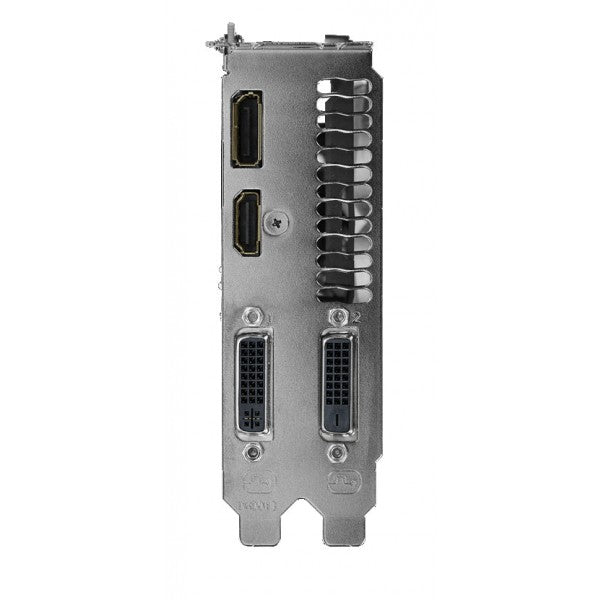

• Features Dual-link DVI-I / DVI-D / HDMI / DisplayPort
• System power supply requirement: 500W (with one 6-pin external power connector)

Specifications

Chipset

Radeon R7 360

Core Clock

1200 MHz

Memory Clock

6500 MHz

Process Technology

28 nm

Memory Size

2 GB

Memory Bus

128 bit

Card Bus

PCI-E 3.0

Memory Type

GDDR5

DirectX

12

OpenGL

4.5

PCB Form

ATX

Digital max resolution

4096 X 2160

Analog max resolution

2048 x 1536

Multi-view

4

I/O Dual-link

Dual-link DVI-I*1/DVI-D*1/HDMI*1/Display Port*1

Card size

H=34 L=146 W=112 mm

Power requirement

500W (with one 6-pin external power connector)
