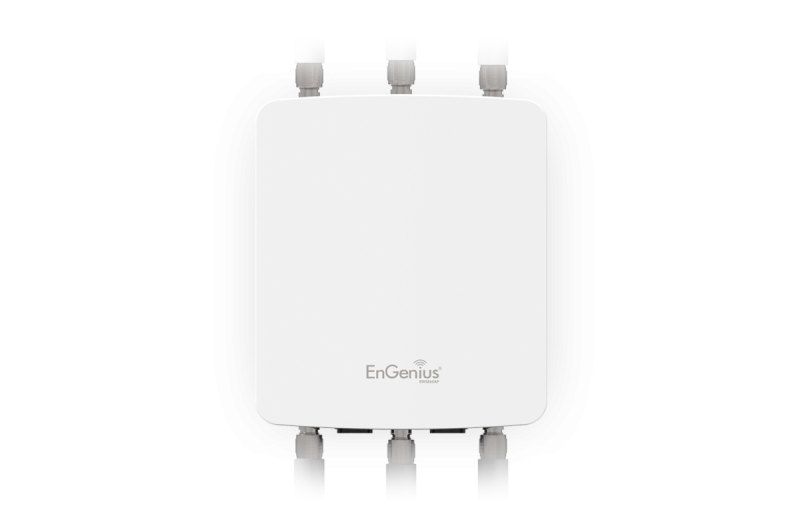

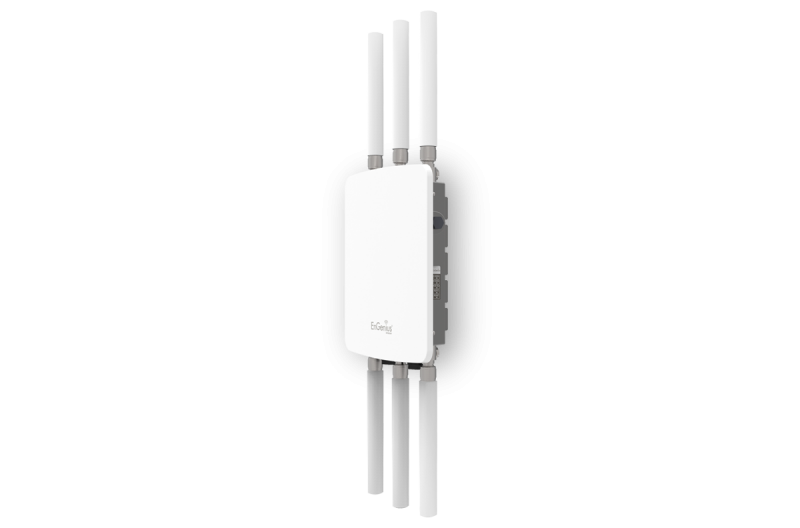

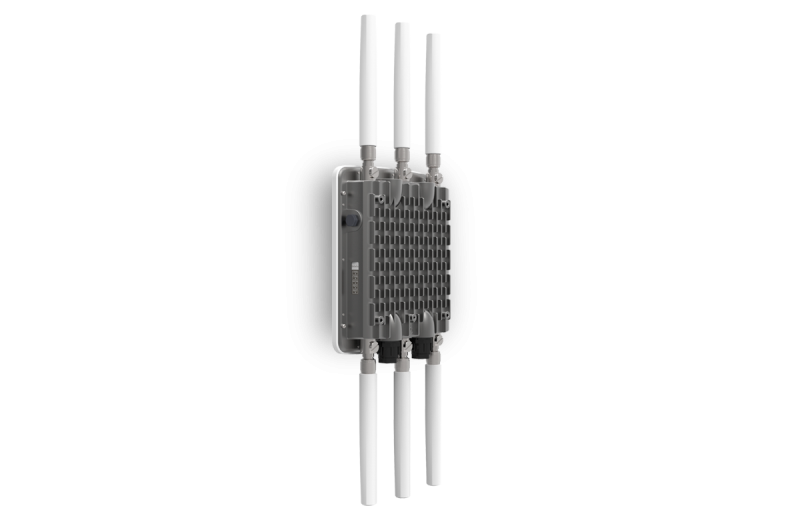

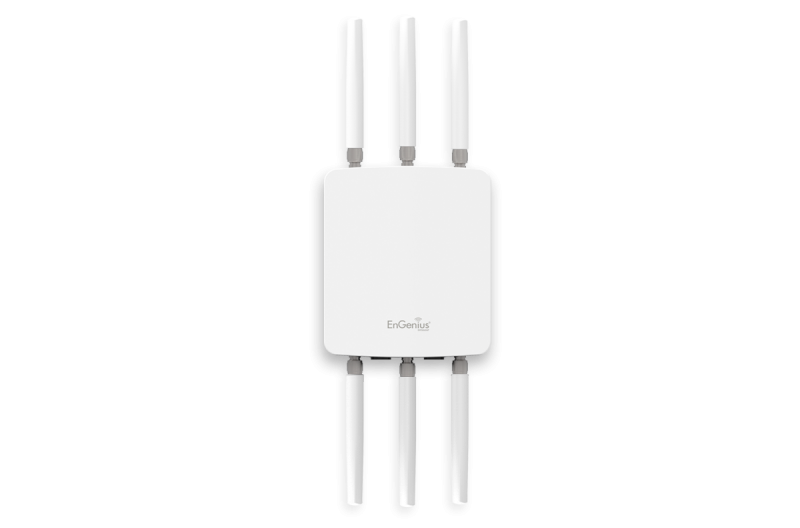

EnGenius EWS860AP Neutron Series Dual Band Wireless AC1750 Managed Outdoor Access Point

Neutron Series Dual Band Wireless AC1750 Managed Outdoor Access Point

Can also be used as a stand alone Access Point

EWS860AP

< Dynamic Channel Optimization
< Supports IEEE802.11a/b/g/n/ac wireless standards. Up to 450 Mbps on 2.4 GHz. Up to 1300 Mbps on 5 GHz.
< Includes power adapter or connect via PoE with 802.3at/af Switch or Injector
< Band Steering shifts Dual Band clients to 5 GHz for better throughput performance
< Fast Roaming when used with a RADIUS Server

Features

Try the Neutron Series Risk-free for 30 Days

Take advantage of the EnGenius Risk-free Trial Program for our Neutron Series WLAN Controller/Switches and Access Points! Purchase the product at any time during the 30-Day trial at a 50% discount from MSRP! If not satisfied, simply return the product within 30 days at no cost to you. Yes, completely free, we pay for the shipping both ways. Neutron Series never charges license fees or subscription fees.

Deploy, Configure, and Manage Them In Clusters in One Network

Can be configured, managed and monitored with several Neutron Series Access Points from the browser-based interface of one Neutron Series Wireless Management Layer 2 PoE+ Switch. After a Neutron Series Layer PoE+ Switch discovers the EWS860AP it can be "added" and set to be "managed" by the Switch. The Neutron Wireless Management solution supports bulk firmware upgrades and other features that can be set and managed across deployed Neutron Series Access Points simultaneously.

Unlimited Flexibility, Complete Scalability with ezMaster™

Deploy as a standalone AP or part of a scalable Neutron Solution. Manage up to 50 APs via a WLAN Controller Switch or centrally manage 1,000+ APs and Switches via ezMaster Network Management Software. Together with Neutron Switches and APs, ezMaster is a flexible, highly scalable solution offering centralized network management with rich reporting and analytics, enterprise-class features and NO AP licensing or subscription fees.

Keeps Client Devices Connected As They Roam in the Network

Supports Fast Roaming when used with a RADIUS server.

Band Steering Improves and Optimizes Wireless Traffic

Automatically detects Dual Band client devices in the network and shifts their traffic to the wider and less congested 5 GHz frequency band in order to minimize congestion on the 2.4 GHz in an effort to optimize overall bandwidth traffic on the network.

Endures Harsh Environmental Conditions

IP68-rated enclosure, one of the highest waterproof and dustproof ratings available, designed to withstand extremely harsh environmental conditions including severe and prolonged exposure to sunlight, extreme cold, frost, snow, rainfall, hail & humidity.

Specifications

Technical Specifications

Hardware

RF: 2.4 and 5 GHz Frequency Bands

Standard:

IEEE 802.11a/b/g/n

Radio I: 11b/g/n: 2.412~2.484 GHz

Radio II: 11a/n: 5.18-5.24 and 5.26-5.32 and 5.5-5.7 and 5.745-5.825 GHz

Data Rate: Up to 450 Mbps in the 2.4 GHz frequency band; Up to 1300 Mbps in the 5GHz band

Memory: 128MB

Flash Memory: 16MB

Antenna Array

External High Gain Antennas 3x 5 dBi for 2.4 GHz and 3x 7 dBi for 5 GHz

Physical Interface
1 x RJ-45 Gigabit Ethernet (10/100/1000 Mbps) - PoE Capable 802.3at
1 x Reset Button
1 x Power Connector

LED Indicators
Power
WPS
WLAN (Wireless Connection)
LAN

Power Requirements

Power Supply: 100 to 240V DC +/-10% 50/60 Hz
Active Ethernet (Power-over-Ethernet IEEE 802.3at)
DC IN, 12V/2A

Modulations

OFDM: BPSK, QPSK, 26-OAM, 64-QAM, DBPSK, DQPSK, CCK

Operating Channels

2.4 GHz: US/Canada 1-11

5 GHz: Country dependent for the following ranges:

36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165

Management

Topology
Infrastructure/Ad-Hoc

Operation Modes
Access Point, Mesh AP (available soon)

Multiple BSSID
Supports up to 8 BSSIDs per radio

LAN
IP (check validity and DHCP server IP range) MAC

SSID-to-VLAN Tagging
Supports 802.1q SSID-to-VLAN tagging

Spanning Tree
Supports 802.1d Spanning Tree Protocol

Wireless

Wireless Mode: 11a/11b/11g/11n
Channel selection (settings vary by country)
Channel bandwidth (Auto, 20 MHz, 40 MHz)

Transmission rate:

2.4 GHz: 11n only, 11b/b/n mix, 11b only, 11b/g, 11g only

5 GHz: 11n only, 11a/n mix, 11a only

QoS
WMM (Wireless Multimedia)

Wireless Management Features (with a Neutron Series Switch)

Access Point Auto Discovery and Provisioning
Access Point Auto IP Assignment
Access Point Cluster Management
Remote Access Point Rebooting
Access Point Device Name Editing
Access Point Radio Settings
Band Steering
Traffic Shaping
Fast Handover
Fast Roaming
Access Point Client Limiting
Mesh Network*
Wireless Security (WEP, WPA/WPA2 Enterprise, WPA/WPA2 PSK)
VLANs for Access Point- Multiple SSIDs
Guest Network
Access Point Status Monitoring
Wireless Client Monitoring
Wireless Traffic & Usage Statistics
Real-time Throughput Monitoring
Visual Topology View
Floor Plan View
Map View
Secure Control Messaging
SSL Certificate
Local MAC Address Database
Remote MAC Address Database (RADIUS)
Unified Configuration Import / Export
Bulk Firmware Upgrade Capability
Intelligent Diagnostics

* Mesh networking mode available soon as a free firmware upgrade

Management (cont.)

Tx Power Control
Adjust transmit power by dBm

Configuration
Web-based configuration (http)

Firmware Upgrade
Via web browser, settings are reserved after upgrade

Administrator Setting
Administrator Username and Password Change

Reset Setting
Reboot (press and hold for 2 seconds).
Reset to factory default (press and hold for 10 seconds)

System Monitoring
Status Statistic and Event Log

SNMP
V1, V2c, V3

MIB
MIB I, MIB II (RFC1213) and private MIB

Traffic Shaping
Incoming and outgoing wireless traffic shaping

Auto-channel Selection
Automatically selecting least congested channel

Bandwidth Measurement
IP range and bandwidth management

Auto Reboot
Reboot Access Point by minute, hour, day, or week

Backup and Restore
Save and restore settings through Web interface

CLI
Supports Command Line Interface

Diagnosis
IP pinging statistics

Log
SysLog and Local Log support

LED Control
On/Off

AP Detection
Scanning for available EnGenius APs

Wireless Security
WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-EAP using TKIP)
802.1X RADIUS Authenticator: MD5/TLS/TTLS, PEAP
SSID broadcast enable/disable
MAC Address Filtering, Up to 50 fields
L2 Isolation (Access Point mode)

QoS (Quality of Service)
WMM (Wireless Multimedia)

Environmental & Physical

Temperature Range

Operating: -4º~158ºF/-20ºC~70ºC
Storage temperature: -22Fº~176ºF/-30ºC~80ºC

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Waterproof
IP68-Rated Enclosure

Physical Security
Kensington Security Slot

Certifications

FCC, IC

Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment, and mix of devices in the network. Features and specifications subject to change without notice. Trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright ©2014 EnGenius Technologies, Inc. All rights reserved.
