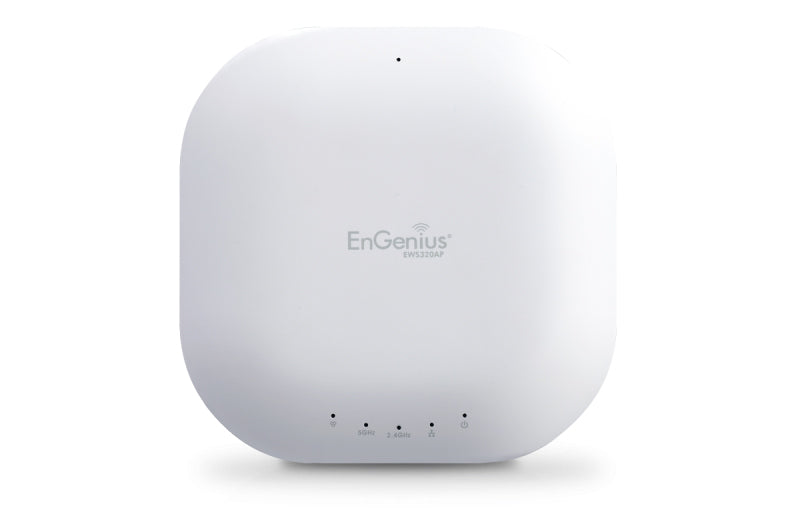

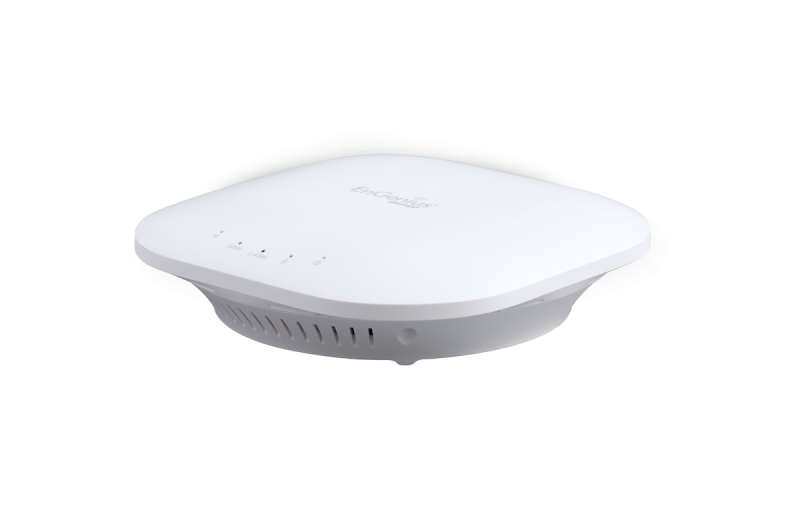

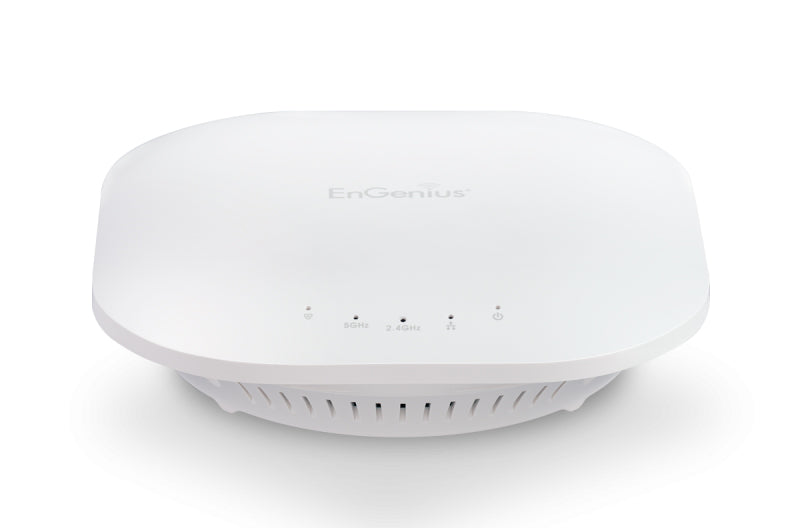

EnGenius EWS320AP Neutron Series Dual band Wireless N900 Managed Indoor Access Point

Neutron Series Dual band Wireless N900 Managed Indoor Access Point

Also can operate as a stand-alone Access Point

EWS320AP

< Up to 28 dBm high RF power on both 2.4/5 GHz for longer range coverage. Sectorized 3D antenna design
< Supports IEEE 802.11a/b/g/n standards. Up to 450 Mbps on each band
< Dynamic Channel Optimization
< 6 internal MIMO antennas / Dual band / Three Stream
< Seamless Roaming, Fast Handover
< Band Steering shifts Dual band clients to 5 GHz for better throughput performance

Features

Try the Neutron Series Risk-free for 30 Days

Take advantage of the EnGenius Risk-free Trial Program for our Neutron Series WLAN Controller/Switches and Access Points! Purchase the product at any time during the 30-Day trial at a 50% discount from MSRP! If not satisfied, simply return the product within 30 days at no cost to you. Yes, completely free, we pay for the shipping both ways. Neutron Series never charges license fees or subscription fees.

Manage Up To 50 EWS320AP Units At The Same Time

Can be configured, managed and monitored with several Neutron Series Access Points from the browser-based interface of one Neutron Series Wireless Management Layer 2 PoE+ Switch. After a Neutron Series Layer PoE+ Switch discovers the EWS320AP it can be "added" and set to be "managed" by the Switch. The Neutron Wireless Management solution supports bulk firmware upgrades and other features that can be set and managed across deployed Neutron Series Access Points simultaneously.

Faster File Transfers. Smoother Video Streaming.

3 streams per radio delivers up to 450 Mbps on both the 2.4 and 5 GHz frequency bands.

Unlimited Flexibility, Complete Scalability with ezMaster™

Deploy as a standalone AP or part of a scalable Neutron Solution. Manage up to 50 APs via a WLAN Controller Switch or centrally manage 1,000+ APs and Switches via ezMaster Network Management Software. Together with Neutron Switches and APs, ezMaster is a flexible, highly scalable solution offering centralized network management with rich reporting and analytics, enterprise-class features and NO AP licensing or subscription fees.

High Power, Long-Range and Multiple Floor Penetration

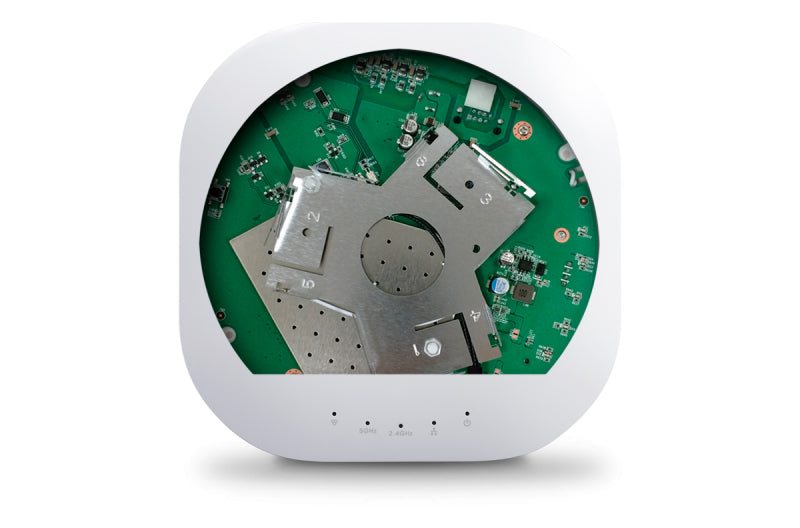

Up to 28 dBm on each band provides more than twice the wireless coverage over mainstream competitors and enables the wireless signal to penetrate floors, ceilings, and walls for greater device connectivity. Internal 3D sectorized antenna array provides extended coverage while minimizing interference.

Dual-Band Expands User Capacity & Optimizes Traffic Flow with Band Steering

Featuring Dual-Band concurrent wireless coverage, the EWS320AP supports expanded user capacity, enabling 2.4 GHz and newer 5 GHz devices to simultaneously connect for maximum speed and performance. Band Steering automatically shifts Dual-Band clients to the less congested 5 GHz band, greatly optimizing overall bandwidth traffic on the network.

Specifications

Technical Specifications

Hardware

RF: 2.4 and 5 GHz Frequency Bands

Standard:

IEEE 802.11a/b/g/n

Radio I: 11b/g/n: 2.412~2.484 GHz

Radio II: 11a/n: 5.18-5.24 and 5.26-5.32 and 5.5-5.7 and 5.745-5.825 GHz

Data Rate: Up to 450 Mbps in both frequency bands

Memory: 64MB

Flash Memory: 16MB

Power Consumption: Up to 22W

Antenna

3 x 3dBi 2.4 GHz antennas RF: 2.4 and 5 GHz Frequency Bands
3 x 5dBi 5 GHz antennas

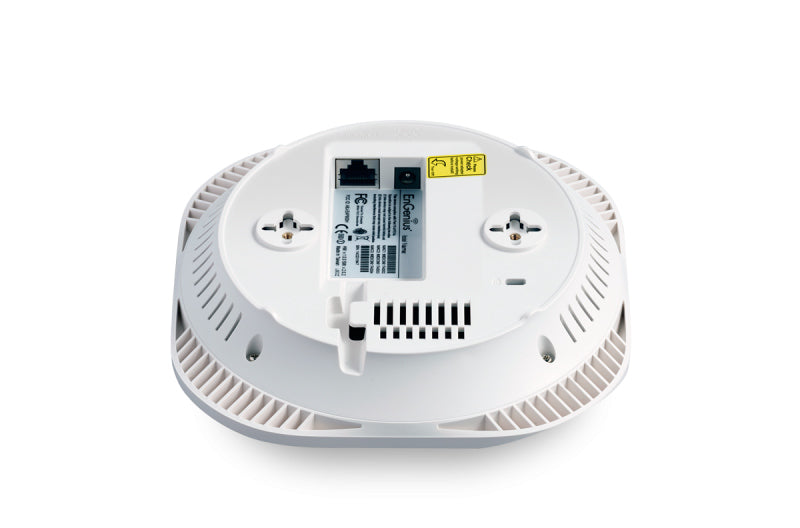

Physical Interface
1 x RJ-45 Gigabit Ethernet (10/100/1000 Mbps)
1 x Reset Button
Power Jack

Power Requirements

Power Supply: 100 to 240 VDC ± 10%, 50/60 Hz
(depends on different countries)
Active Ethernet (Power-over-Ethernet, IEEE 802.3af)
Power Adapter (United States) 48VDC/0.375A
Device: 12V/1A

Modulations

OFDM: BPSK, QPSK, 26-OAM, 64-QAM, DBPSK, DQPSK, CCK

Operating Channels

2.4 GHz: US/Canada 1-11

5 GHz: Country dependent for the following ranges:

36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165

Software

Operation Modes
Access Point, Mesh AP (available soon)

Multiple BSSID
Supports up to 8 BSSIDs per radio

LAN
IP (check validity and DHCP server IP range) MAC

SSID-to-VLAN Tagging
Supports 802.1q SSID-to-VLAN tagging

Spanning Tree
Supports 802.1d Spanning Tree Protocol

Wireless

Wireless Mode: 11a/11b/11g/11n
Channel selection (settings vary by country)
Channel bandwidth (Auto, 20 MHz, 40 MHz)

Transmission rate:

2.4 GHz: 11n only, 11b/b/n mix, 11b only, 11b/g, 11g only

5 GHz: 11n only, 11a/n mix, 11a only

QoS
WMM (Wireless Multimedia)

Wireless Management Features (with a Neutron Series Switch)

Access Point Auto Discovery and Provisioning
Access Point Auto IP Assignment
Access Point Cluster Management
Remote Access Point Rebooting
Access Point Device Name Editing
Access Point Radio Settings
Band Steering
Traffic Shaping
Fast Handover
Fast Roaming
Access Point Client Limiting
Mesh Network*
Wireless Security (WEP, WPA/WPA2 Enterprise, WPA/WPA2 PSK)
VLANs for Access Point- Multiple SSIDs
Guest Network
Access Point Status Monitoring
Wireless Client Monitoring
Wireless Traffic & Usage Statistics
Real-time Throughput Monitoring
Visual Topology View
Floor Plan View
Map View
Secure Control Messaging
SSL Certificate
Local MAC Address Database
Remote MAC Address Database (RADIUS)
Unified Configuration Import / Export
Bulk Firmware Upgrade Capability
Intelligent Diagnostics

* Mesh networking mode available soon as a free firmware upgrade

Management

Tx Power Control
Adjust transmit power by dBm

Configuration
Web-based configuration (http)

Firmware Upgrade
Via web browser, settings are reserved after upgrade

Administrator Setting
Administrator Username and Password Change

Reset Setting
Reboot (press and hold for 2 seconds).
Reset to factory default (press and hold for 10 seconds)

System Monitoring
Status Statistic and Event Log

SNMP
V1, V2c, V3

MIB
MIB I, MIB II (RFC1213) and private MIB

Traffic Shaping
Incoming and outgoing wireless traffic shaping

Auto-channel Selection
Automatically selecting least congested channel

Bandwidth Measurement
IP range and bandwidth management

Auto Reboot
Reboot Access Point by minute, hour, day, or week

Backup and Restore
Save and restore settings through Web interface

CLI
Supports Command Line Interface

Diagnosis
IP pinging statistics

Log
SysLog and Local Log support

LED Control
On/Off

AP Detection
Scanning for available EnGenius APs

Wireless Security
WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-EAP using TKIP)
802.1X RADIUS Authenticator: MD5/TLS/TTLS, PEAP
SSID broadcast enable/disable
MAC Address Filtering, Up to 50 fields
L2 Isolation (Access Point mode)

QoS (Quality of Service)
WMM (Wireless Multimedia)

Environmental & Physical

Temperature Range

Operating: 0 to 50ºC (32º to 122ºF)
Operating humidity: 0 to 90%
Storage temperature: -20ºC to 60ºC (-4Fº to 140ºF)

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Certifications

FCC, IC

Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment, and mix of devices in the network. Features and specifications subject to change without notice. Trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright ©2014 EnGenius Technologies, Inc. All rights reserved.

EWS320AP Device
Weight: 0.8 lbs.
Length: 6.5”
Width: 6.5”
Height: 1.64”
