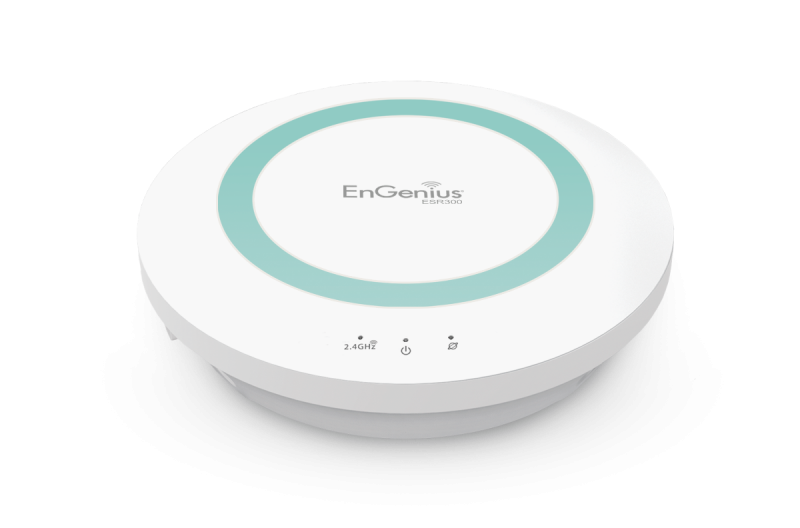

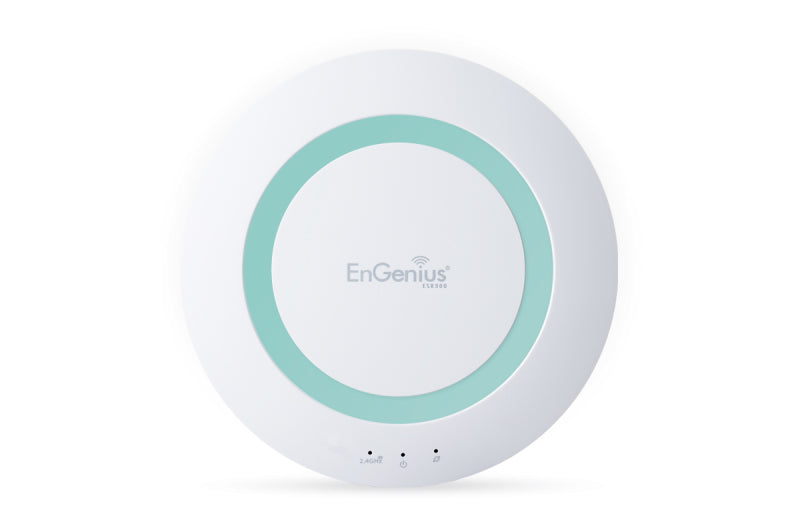

EnGenius ESR300 2.4 GHz Wireless N300 IoT Cloud Router with Built-in Switch and USB Port

2.4 GHz Wireless N300 IoT Cloud Router with Built-in Switch and USB Port

Work faster and play harder throughout your home

ESR300

• Wireless N300 Speed
• Fast Ethernet Wired Speeds and USB Port
• The EnGenius Cloud and EnShare™
• Xtra Range™ Technology for Better Signal Coverage Throughout Your Home
• Prioritizes Applications and Maintains Quality of Experience
• Multiple SSIDs
• Industry-Standard Security

Features

Wireless N300 Speed

Utilizes 802.11n standard speeds, up to 300 Mbps in the 2.4 GHz frequency band, ideal for media streaming, online gaming, and large file transfers in and around the home.

The EnGenius Cloud and EnShare™

Access, stream, download or upload video, music and other files to and from an attached USB hard drive or monitor and manage the Cloud Router from an Apple iPhone, iPad or Android tablet or smartphone with the free EnShare™ app. You can also use EnShare to remotely monitor Cloud Router usage or disconnect devices connected to the IoT Cloud Router whenever they’re away from home via an Internet connection.

Connect Around the World with EnTalk-Lite™

Connect with family, friends, and colleagues like never before with the free EnTalk-Lite app. Capable of supporting up to 10 SIP accounts, small business users or families and friends can reroute calls over the Internet for conducting long-distance and international calls at lowered costs.

Never Lose Track of Friends or Family Again with EnRoute™

The free EnRoute app allows administrators to keep track of the location of business colleagues or family members who belong to a registered account on a device such as a smartphone or tablet. Features such as GPS tracking, location sharing, and parental controls allows for easier management of devices and users. Never lose track of friends or family again

Monitor Your Home with EnViewer™

With the free EnViewer app, users can connect up to two EnGenius EDS1130 HD720P Wireless IP Cameras to the ESR350 to monitor a home or small business. Alert messages can be sent to a mobile device that are triggered by the Camera’s motion-detection feature and with the Camera’s day/night capabilities a user can monitor their family, their home or their small business wherever they have an Internet connection.

Specifications

Device Interface

Fast Ethernet WAN Port
4 Fast Ethernet LAN Ports
USB2.0 Port
Push Button for WPS
Reset Button

IEEE Standards

802.11b/g/n
Up to 300 Mbps wireless speed in the 2.4 GHz frequency band
802.3i/u

LED Indicators

Power
WLAN (Wireless Connection)
Internet

Package Contents

ESR300 Router
Power Adapter (12V 1A)
Quick Start Guide
RJ45 Ethernet Cable

Power Specification

External Power Adapter
DC In, 12V 1A

Certifications

FCC/CE/IC

Physical/Environmental Conditions

Operating Temperature: 0º~40º

Humidity: 90% or less (non-condensing)

Storage Temperature: -20º~60º

Humidity: 95% or less (non-condensing

Software Features

Frequency Band

2.400~2.484 GHz (11b/11g/11n)

Operating Mode

AP Router/WDS

Wireless Features

Auto Channel Selection
Output Power Control
WMM (Wireless Multimedia)
MSSID (Multiple SSID)

Security

WEP/WPA-PSK/WPA2-PSK
TKIP/AES
Hidden SSID
MAC Address Filtering
802.1X Authentication
DDoS
DHCP Server/Client
SPI (Static Packet Inspection)
NAT
Port Forwarding
DMZ
Port Mapping/Triggering
VPN with PPTP, L2TP, IPSec, L2TP over IPSec
VPN Tunnels: 5
QoS
IP Filtering
Port Filtering
DDNS
IPv6 Pass-through
MAC Clone
Traffic Monitor
WAN Type: PPPoE/DHCP/Static IP
USB Features: SAMBA


Dimensions and Weights

ESR300 Device

Weight: 0.5 lbs.

Diameter: 6.36”

Height: 1.64”
