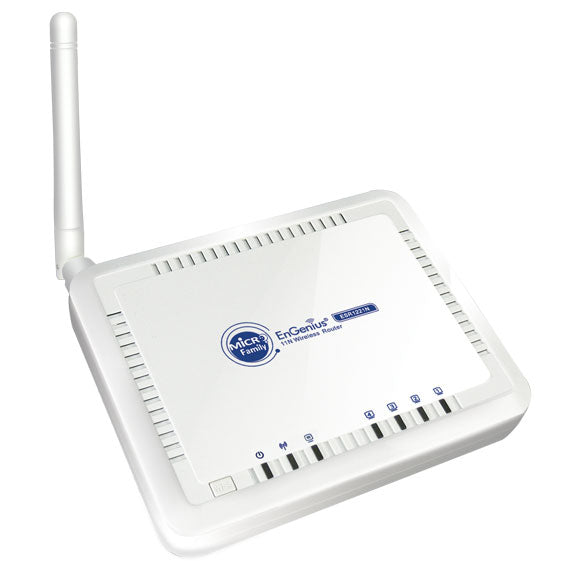

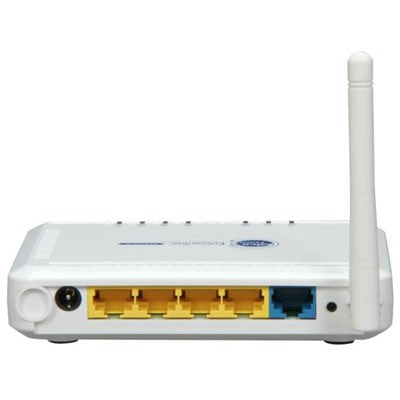

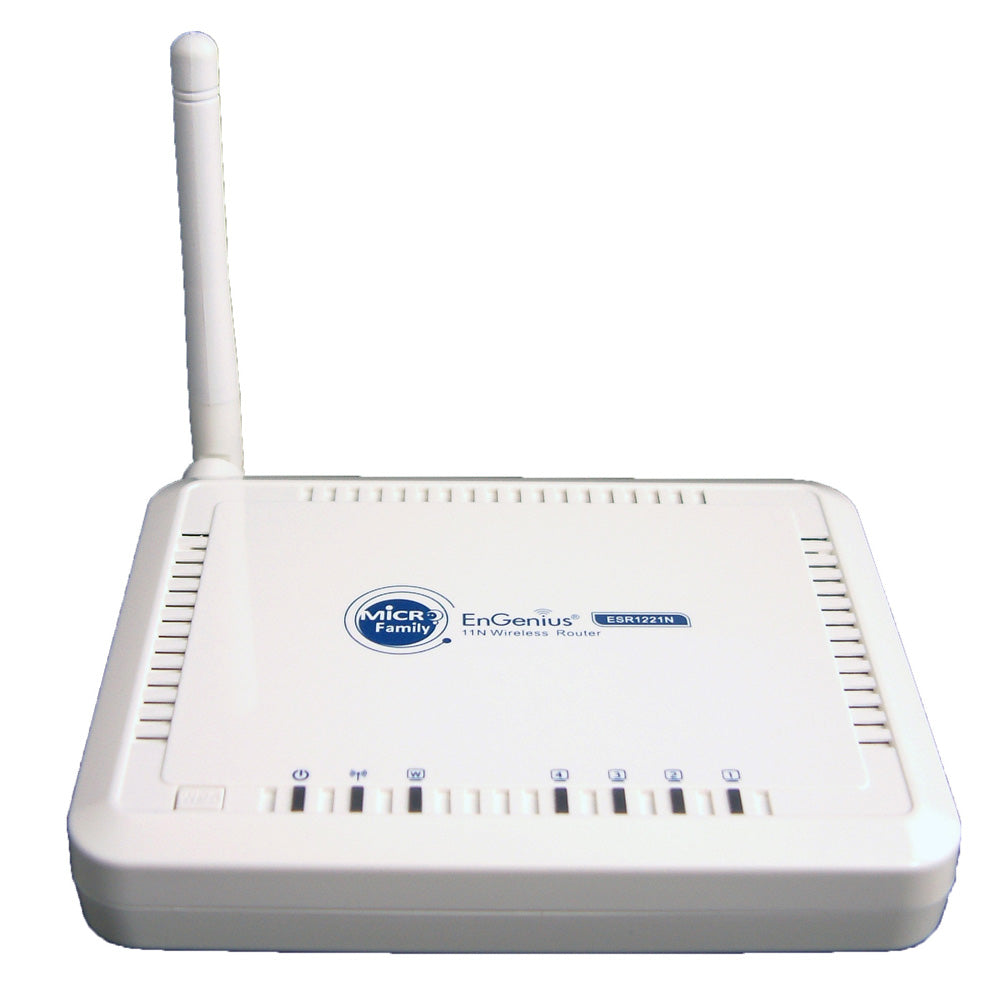

EnGenius ESR1221N 150Mbps Wireless N Router

Key Features

Wireless 802.11n Technology

The most advanced wireless networking technology for better range and faster speed and backward compatible with 802.11g wireless devices.

Multiple SSID

Create a separate network for sharing your Internet connection with others while keeping your data private

Push Button Security Setup

Configurable through push-button setup, your network PC’s web browser, or the included setup wizard

Security & Management

WEP / WPA / WPA2
Powerful SPI Firewalll
NAT
WMM based on QoS

Easy Setup

The Wizard CD guides users to setup ESR1221N smoothly

RF Specification

Frequency Band

2.400–2.484 GHz

Modulation Technology

OFDM: BPSK, QPSK, 16-QAM, 64-QAM

DBPSK, DQPSK, CCK

Operation Channels

11 for North America, 14 for Japan, 13 for Europe

Wireless Mode 11b/11g/11n

Channel Selection (Setting varies by Country)
Channel Bandwidth (Auto, 20Mhz, 40Mhz)
Transmission Rate 11g: Best. 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 in Mbps

Receive Sensitivity

IEEE 802.11n up to -85dBm
IEEE 802.11g up to -88dBm
IEEE 802.11b up to -90dBm

Available Transmit Power

IEEE 802.11n up to18dBm
IEEE 802.11g up to 18dBm
IEEE 802.11b up to 19dBm

Software Features

Topology Infrastructure

Operation Mode AP/Router

LAN

DHCP Server
Static Routing Table
UPNP

WAN

PPTP • PPPoE • Static IP • DHCP Client • Clone MAC address

Router

NAT/ NAPT
Static Routing
Dynamic Route
Virtual server mapping
IP address mapping
Port Forwarding
Port Triggering
Special application
DNS Relay
DDNS
Time Zone(NTP client)

Firewall

Block ICMP Ping
DoS(Block ICMP Ping, Port scan, Sync Flood)
MAC/IP Filtering
ICMP Blocking
SPI (Stateful Packet Inspection)
DMZ (Demilitarized Zone) Host
Policy Based Parental Controls
Port Range / Service Filtering
Internet Domain Restriction

VPN

VPN pass-through (PPTP, L2TP, IPSEC)

Wireless

Power saving(Green technology)
64/128 bit WEP Encryption
WPA Personal (WPA-PSK using TKIP or AES)
WPA Enterprise (WPA-EAP using TKIP)
802.1x Authenticator
Hide SSID in beacons
Wi-Fi Protection Setup (WPS)
WDS
ACL control
Best Channel selection
Speed/Bandwidth monitor

QoS

WMM
Application base
- Priority Queue
- Bandwidth Allocation

Management

Configuration Web-based configuration (HTTP)

Firmware Upgrade Via webpage upgrade

Auto recovery if firmware upgrade fails

Administrator Setting Administrator password change • Idle time out

Reset Setting Reboot • Reset to Factory Default

System monitoring Speed and bandwidth monitoring

Scheduling Enable Firewall • Enable power saving

Easy Access User can type model name and access the main page

Install wizard Guides user to set-up router smoothly

Environment & Physical

Temperature Range

Operating: 0°C to 45°C (32°F to 113°F)

Storage: -10°C to 70°C (14°F to 158°F)

Humidity (non-condensing) 15% – 95% typical
