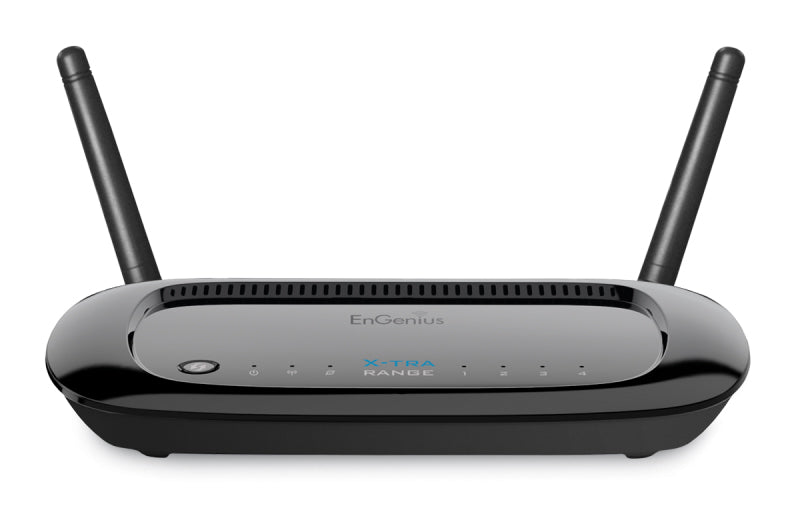

EnGenius ERB300H 4-Port Wireless N300 Media Bridge & Extender

4-Port Wireless N300 Media Bridge & Extender

Expand and enhance your home entertainment options

ERB300H

• Repeater Mode: Extends the 2.4 GHz range of existing wireless routers
• Client Bridge Mode: Built-in four 10/100 Ethernet ports for connection of Ethernet-enabled home entertainment devices to a wireless network
• WPA/WPA2 encryption to help secure the wireless network
• Detachable 2 dBi antennas for longer range and greater coverage; also allows for end-user upgrade for higher gain antennas

Features

Wireless-N Speed

Utilizes 802.11n standard speeds, up to 300 Mbps in the 2.4 GHz in and around the home.

Detachable 2dBi Antennas

Detachable external antennas extend wireless signal range and provide greater coverage. For even more coverage , optional higher gain antennas are available for even greater range and reach.

Industry-Standard Security

Includes WPA and WPA2 wireless encryption for a more secure network.

Get Up and Running

Use the WPS button with a WPS capable router or gateway to easily connect and setup the network.

Easy to Use Setup Wizard

Includes an easy to use installation Wizard via a browser based GUI to configure essential network settings.

Specifications

Device Interface

4 Fast Ethernet LAN Ports
Push Button for WPS
Reset Button
Power Switch
Two (2) 2 dBi SMA Antenna Connectors

IEEE Standards

802.11b/g/n
Up to 300 Mbps wireless speed in the 2.4 GHz frequency band
802.3i/u

Package Contents

ERB300H Wireless N300 Media Bridge / Extender
Power Adapter (12V 1A)
Two (2) 2 dBi Antennas
Quick Start Guide
CD with User Manual in pdf
Ethernet cable

Power Specification

External Power Adapter
DC In, 12V 1A

Certifications

FCC/CE/IC

Physical/Environmental Conditions

Operating Temperature: 0˚ ≈ 40˚

Humidity: 90% or less (Non-condensing)

Storage Temperature: -20˚ ≈ 60˚

Humidity: 95% or less (Non-condensing)

Software Features

Frequency Band

2.400~2.484 GHz (11b/11g/11n)

Operating Modes

Client Bridge, Wireless Repeater

Wireless Features

Auto Channel Selection
Output Power Control
QoS: WMM (Wireless Multimedia)

Security

WEP/WPA-PSK/WPA2-PSK
TKIP/AES
Hidden SSID
MAC Address Filtering

Dimensions and Weights

ERB300H Device

Weight: 0.5 lbs.

Length: 5”

Width: 6.5”

Height: 1
