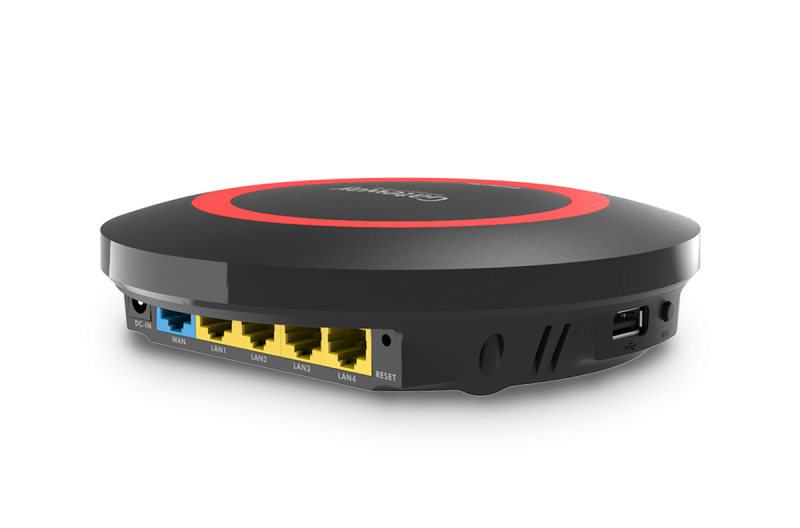

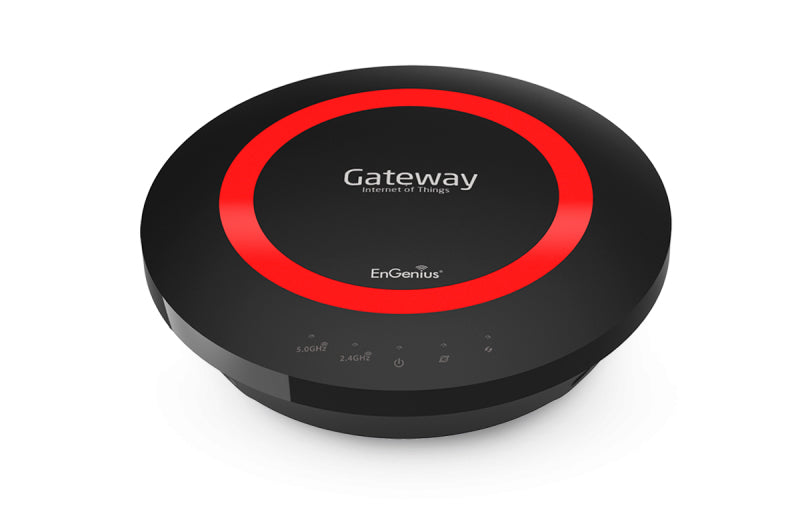

EnGenius EPG5000 Dual Band IoT Intelligent Cloud Gateway

Dual Band IoT Intelligent Cloud Gateway

Take more control of your digital life - for greater peace of mind

EPG5000

• Built-in USB Port to share media content from an attached USB hard drive to mobile devices with EnShare
• Connect with others around the globe via the Internet and save on long-distance and international calling with EnTalk-Lite
• Built-in 4-Port Gigabit Switch to connect Blu-ray players, STBs, DVRs, Game Consoles and HDTVs
• Supports IEEE802.11a/b/g/n Wireless Standards. Prioritizes Applications and Maintains Quality of Experience

Features

Wireless AC1750 Speed

Utilizes 802.11ac standard speeds. Up to 450 Mbps on the 2.4 GHz frequency band and up to 1300 Mbps on the 5GHz frequency band delivering throughput speeds ideal for media streaming, online gaming, and large file transfers in and around the home.

Save On International Calling With the EnTalk-Lite App

Initiate and communicate to friends and family from anywhere in the world with an available Internet connection via a Wi-Fi access point or hot spot, or via a 3G or 4G carrier connection. Supports up to ten (10) smartphones.

EnShare USB Media Sharing

EnShare lets users access media content from a storage device attached to the USB port of the EPG5000 in or away from home and enables users to upload content back to the attached USB drive on the EPG5000 when away from home via an available Internet connection.

Access EnGenius IP Cameras on the Network with the EnViewer App

Available as a free download on the Apple or Google Play store, EnViewer lets small business owners or homeowners view EnGenius IP Camera feeds by connecting to the EPG5000 Gateway using a smartphone. Snap a JPEG or record video using a connected smartphone. Receive alert messages to a smartphone when triggered by camera’s motion detection feature.


EnRoute - Protect your family, monitor your employees, walk, run, drive and record

Know where your children are? The movie they went to see let out two hours ago. Find them instantly with the EnRoute, only from EnGenius’ Fusion Solution of IoT (Internet of Things) apps and products and make sure they’re all right or on their way home. EnRoute also lets you pinpoint exactly where your employees are throughout the day and records your walks or the jogging path you use so you can keep track of your daily workout routine to see if you’re adhering to your goal to stay fit and healthy.

Technical Specifications

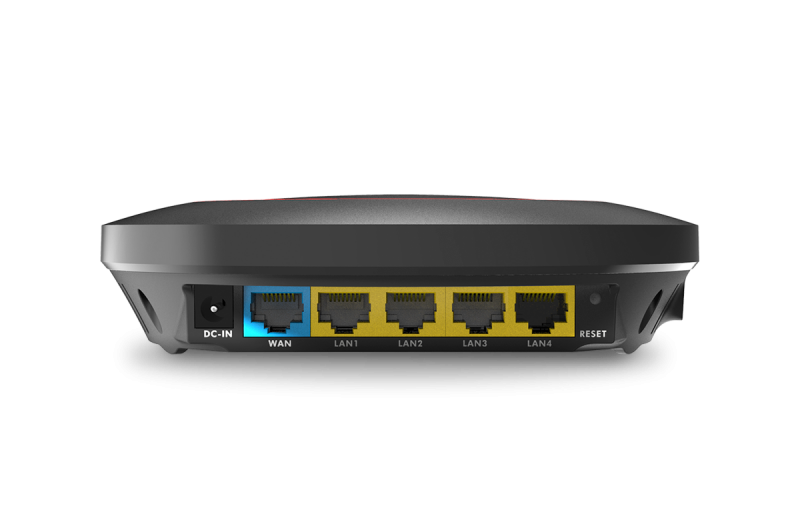

Device Interface

Gigabit WAN Port
4 Gigabit LAN Ports
USB2.0 Port
Push Button for WPS
Reset Button

IEEE Standards

802.11a/b/g/n/ac
Up to 450 Mbps wireless speed in the 2.4 GHz frequency band
Up to 1300 Mbps wireless speed in the 5 GHz frequency band
802.3i/u/ab

LED Indicators

Power
WLAN (Wireless Connection)
Internet

Package Contents

EPG5000 Intelligent Gateway
Power Adapter (12V 1.5A)
Quick Start Guide
RJ45 Ethernet Cable

Power Specification

External Power Adapter
DC In, 12V 1.5A

Certifications

FCC/CE/IC

Physical/Environmental Conditions

Operating Temperature: 0º~40º
Humidity: 90% or less (non-condensing)
Storage Temperature: -20º~60º
Humidity: 95% or less (non-condensing)

Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment, and mix of devices in the network. EnGenius Technologies, Inc. EnShare™ supports both FAT32 and NTFS USB formats. Transfer speeds of data from your router-attached USB storage device to a remote/mobile device may vary based on Internet uplink and downlink speeds, bandwidth traffic at either send or receive locations, the data retrieval performance of the attached storage device or other factors. EnGenius does not guarantee compatibility with all USB drives. EnGenius does not guarantee compatibility for media streaming with Smart TVs or other home entertainment devices. EnGenius does not warrant its products or EnShare from loss of data or loss of productivity time. Features and specifications subject to change without notice. Screen images simulated. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Google Play is a trademark of Google Inc. Trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright ©2013 EnGenius Technologies, Inc. All rights reserved.

Software Features

Frequency Bands

2.400~2.484 GHz (11b/11g/11n)
5.18~5.82 GHz (11a/11n/ac)

Operating Mode

AP Router

Wireless Features

Auto Channel Selection
Output Power Control
WMM (Wireless Multimedia)
MSSID (Multiple SSID)

Security

WEP/WPA-PSK/WPA2-PSK
TKIP/AES
Hidden SSID
MAC Address Filtering
802.1X Authentication
DDoS
DHCP Server/Client
SPI (Static Packet Inspection)
NAT
Port Forwarding
DMZ
Port Mapping/Triggering
VPN with PPTP, L2TP, IPSec, L2TP over IPSec
VPN Tunnels: 5
QoS
IP Filtering
Port Filtering
DDNS
IPv6 Pass-through
MAC Clone
Traffic Monitor
WAN Type: PPPoE/DHCP/Static IP
USB Features: SAMBA

Dimensions and Weights

EPG5000 Device
Weight: 0.5 lbs.
Diameter: 6.36”
Height: 1.64”
