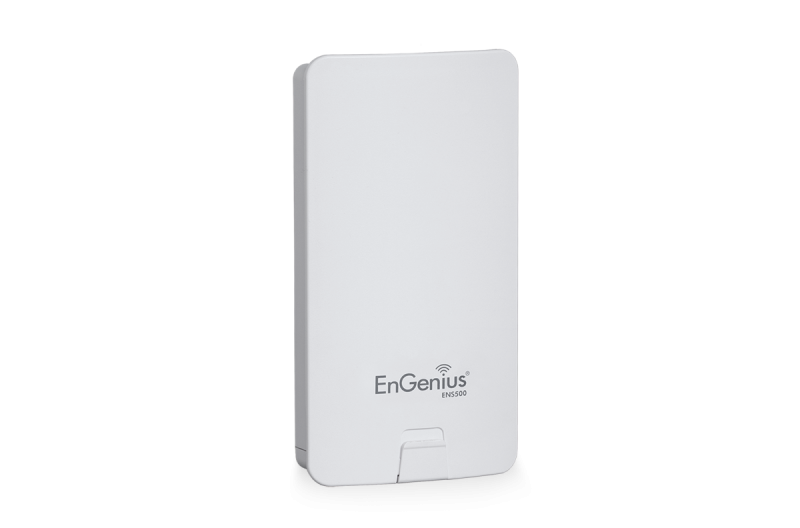

EnGenius ENS500 High-Powered, Long-Range 5 GHz Wireless N300 Outdoor Bridge

High-Powered, Long-Range 5 GHz Wireless N300 Outdoor Bridge

Extend your network to another building and avoid 2.4 GHz traffic

ENS500

• High 400mW Wireless Power Delivers Long-Range Coverage
• Up to 300 Mbps Wireless Speed and Backward Compatible to 802.11a
• Built-in Dual Polarity 10 dBi Directional Antenna Maximizes Wireless Connectivity
• SSID-to-VLAN Tagging

Features

Delivers Robust Long-Distance Signal

High 400mW transmit power delivers long-distance signal for Point-to-Point wireless bridging to other buildings.

Maximizes Wireless Connectivity Over Long Distances

10 dBi internal directional antenna with dual polarity design propagates a more focused signal beam for targeting other outdoor client bridges or providing wireless network connectivity to a specific outdoor area in Access Point mode.

Great for Streaming Media or Transferring Large Files

Up to 300 Mbps wireless speed when connected to another 5 GHz Wireless N300 device. Complies with IEEE802.11a/n standards.

Supports SSID-to-VLAN Tagging

Can be configured to broadcast up to four (4) SSIDs. Each SSID can be tagged to a specified company network VLAN for different user access based on established access rights.

Extends the Network Further

Acts as an extension of an existing home or small business network for video streaming, voice & data intensive applications.

Simplified AP Monitoring and Management

For easier monitoring and maintenance after deployment on rooftops and other hard to reach places, users can monitor the Access Point remotely with SNMP-based EZ Controller wireless Access Point software for Windows, Mac OSX, and Linux.

Technical Specifications

Hardware

RF: 5 GHz Frequency Band (5.18 to 5.825 GHz)

Standard: IEEE 802.11a/n

Data Rate: Up to 300 Mbps

Memory: 64MB

Flash Memory: 16MB

Power Consumption: Up to 6.9W

Antenna

Internal 10 dBi directional antenna with Dual Polarization

Physical Interface

2 x RJ-45 Fast Ethernet (10/100 Mbps)
1 x Reset Button

Power Requirements

Active Ethernet (Power-over-Ethernet)
Proprietary PoE Design
Power Adapter (United States) 24V/0.6A

Software

Operation Modes

Access Point, Client Bridge, Client Router, WDS

WDS Detail

WDS AP
WDS Bridge

Management

Security

WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-PSK using TKIP or AES)
Hide SSID in beacons
MAC Address Filtering, Up to 50 Fields
Wireless STA (Client) Connection List

QoS (Quality of Service)

WMM (Wireless Multimedia)

Wireless / Network

Auto Channel Selection
Distance Control (802.1x Ack timeout)
CLI (Command Line Interface) Supported
802.1X RADIUS Supplicant (Client Bridge Mode)
Multiple SSID (4 SSIDs), BSSID
WDS AP, WDS Bridge, WDS Station
Multicast Supported
VLAN Tagging, VLA Pass-through
Auto Reboot
Wi-Fi Scheduling

Environmental & Mechanical

Temperature Range

Operating: -4º~158ºF/-20ºC~70ºC
Storage: /-22Fº~176ºF/-30ºC~80ºC

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Waterproof

IP65-Rated Enclosure

Certifications

FCC, IC

Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment, and mix of devices in the network. Features and specifications subject to change without notice. Trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright ©2013 EnGenius Technologies, Inc. All rights reserved.

Dimensions & Weights

ENS500 Device

Weight: 0.7 lbs.
Width: 3.9”
Length: 7.3”
Height” 1.14”

Packaging Dimensions & Weight

Weight: 1.56 lbs.
Width: 2.80”
Length: 12.20”
Height: 9.20”

Package Contents

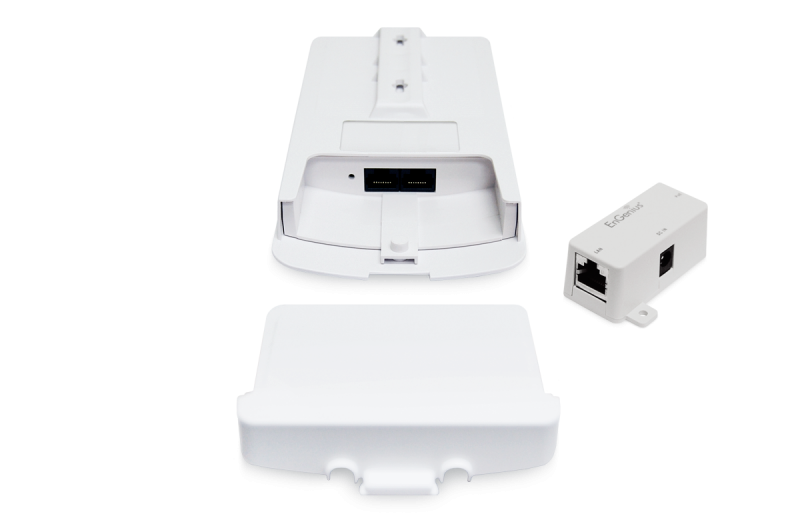

ENS500 Client Bridge/Access Point
Power Adapter
PoE Injector (EPE1212)
Pole Mount Set
Screw Set
Quick Start Guide
Technical Support Card
