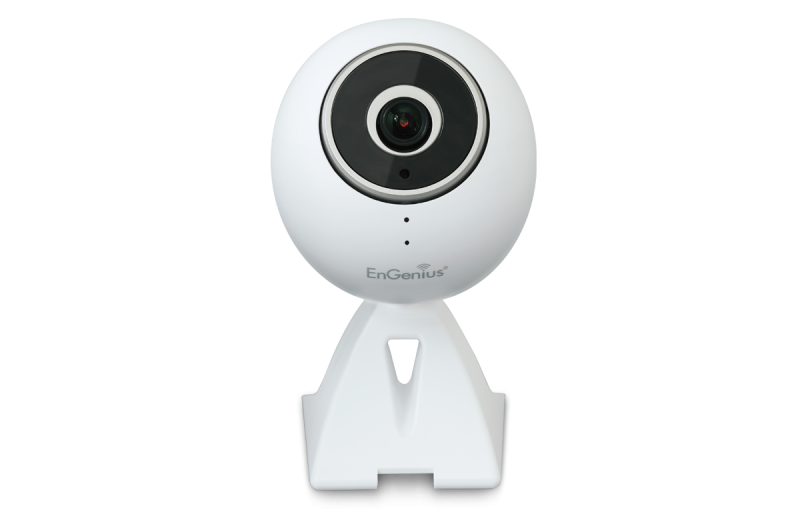

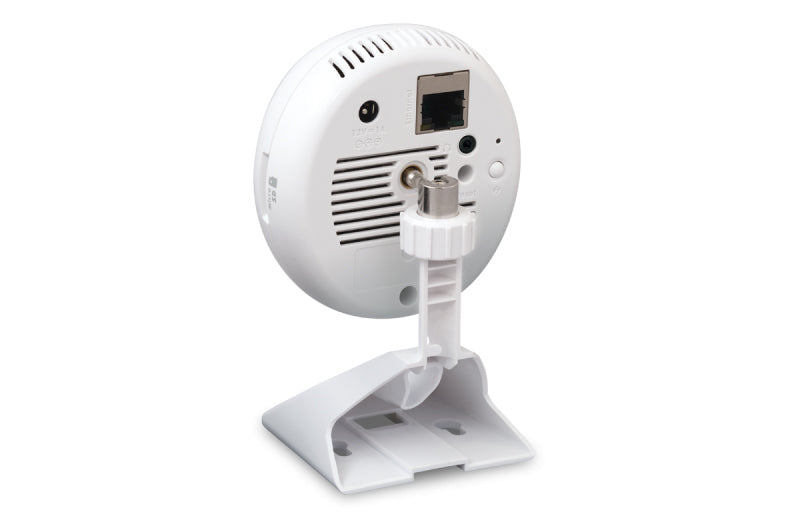

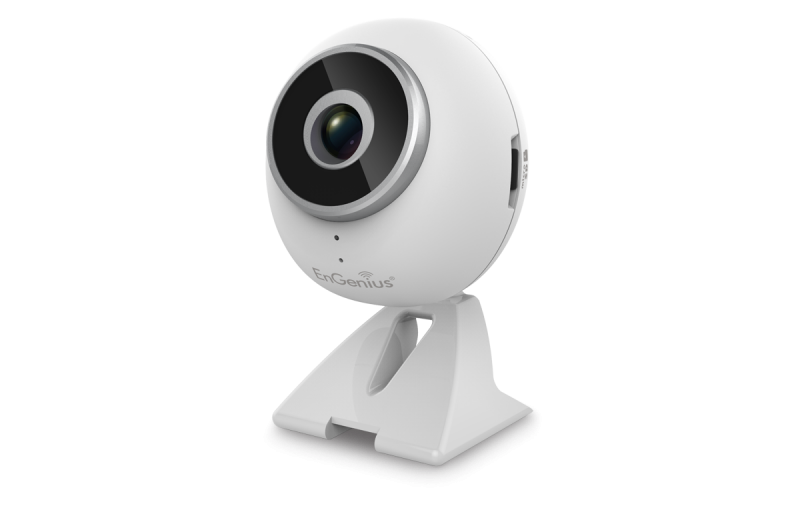

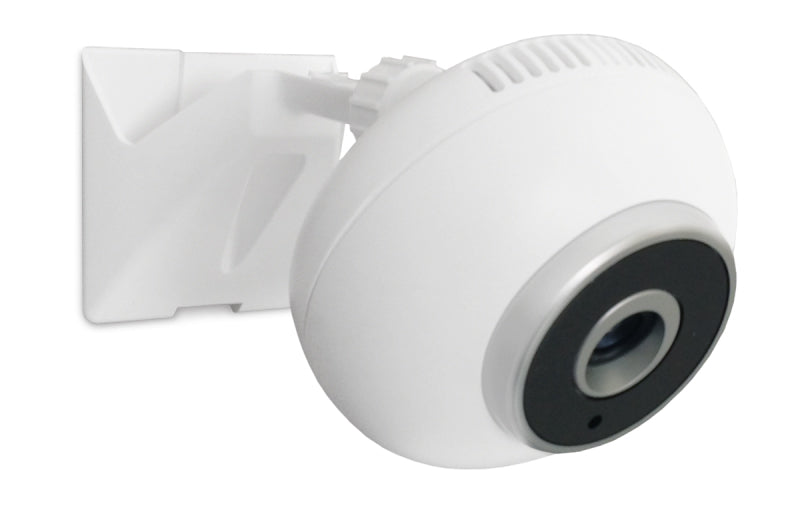

Engenius EDS1130 1-MP 720P IoT HD Resolution IP Network Camera

1-MP 720P IoT HD Resolution IP Network Camera

High Definition Resolutions For 24/7 Monitoring

EDS1130

• 720P High Definition Resolution
• Supports 2 Simultaneous HD Streams
• H.264/MPEG-4/MJPEG Triple Codec
• Hidden IR LEDs for Night Viewing up to sixteen (16) feet.
• Supports Motion Detection, Push Notifications, and Ethernet Lost
• Built-in Microphone & External Audio Out
• Free App for iPhone®, iPad®, and Android™ devices

 720P Resolution

Includes HDTV 720P quality with real-time recording at 30 frames per second for capturing fine detail in video or jpeg images. Up to 1-Megapixel Resolution for better image clarity.

Monitor Your Home When You're Away From Home With EnViewer

Monitor caregivers, family, pets, and employees whenever an Internet connection is available with the EnViewer mobile app.

Day/Night Mode

An IR-Cut filter for day/night mode helps users keep track of their loved ones and the home. Hidden IR LEDs for night viewing in low light environments up to sixteen (16) ft, making it ideal for entryways, patio doors, side doors, windows, and more.

2-Way Audio

Respond immediately to situations and events with the 2-Way audio feature. Ideal for family and pets that require hands free communication or immediate attention.

Push Notification & Playback

Be aware and informed with event notifications sent to an iPhone, iPad, or Android device immediately once a specified event is detected on the network camera.

Technical Specifications

Camera

Image Sensor:
1/4" Megapixel Progressive Scan CMOS

Lens:
Board Lens
Fixed Focus, 4 mm @ F2.4
Day/Night: Built-in Mechanical IR-Cut Filter

Minimum Illumination:

Color (IR-off): 0.2 Lux/F = 1.8

B/W (IR-on): 0 Lux/F = 1.8

IR Illuminator:
6 pcs IR Illuminators, effective up to 16.4 feet / 5 meters

Power consumption: Up to 7W

Video

Compression: H.264/MPEG/MJPEG

Simultaneous Streams: 2x Video Streams

Frame Rates:
H.264: Up to 30 fps at 1280 x 720
MPEG-4: Up to 30 fps at 1280 x 720
MJPEG: Up to 30 fps at 1280 x 720

Image Settings:
Adjustable Image Size, Quality & Bit Rate
Configurable Brightness, Sharpness, Contrast, Saturation, White Balance, & Exposure
AGC/AWB/AES
Flip & Mirror
Time Stamp & text Caption Overlay
Manual/Auto Day & Night

Audio

Audio Streaming: 2-Way

ompression: G.711
Input/Output Gain Control

Interface:
Built-in Microphone
External Audio Out

Networking

Network:
10/100 Mbps Ethernet
RJ-45
Built-in Wi-Fi IEEE 802.11b/g/n (150 Mbps)
Built-in High Sensitive Internal Wireless Antenna
EnGenius DDNS
Auto NAT Pass Through/UPnP Traversal
WPS Settings

Protocols:
IPv4, TCP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, UPnP, RTP, RTSP, PPPoE, SMB

Security

Password Protection
IP Address Filtering
User Access Log
Wireless Encryption: WEP, WPA, WPA2, WPS Button
2-Level Accounts:
Admin/Guest

Alarm & Event Recording

Alarm:
Motion Detection
Audio Detection

Event Actions:
File Upload to FTP, SMB, SMTP, Mobile App., EnGenius Cloud Router

Notification:
Email
Push Notifications (For Mobile Apps only)
Video Playback (PC/iPhone/iPad/Android)
EnGenius Smart Recording (Only for EnGenius Cloud Series Routers)

Mobile Apps

Supports:
iPhone/IPad/Android Devices

Environmental & Physical

Temperature Range

Operating: -32º~104ºF/-0ºC~40ºC
Storage: /-4Fº~140ºF/-20ºC~60ºC

Humidity (non-condensing)

Operating: 95% or less
Storage: 95% or less

Physical

Local Storage
SDHC Slot
Power Input:
12V/1A

Certifications

FCC, IC

Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment, and mix of devices in the network. Features and specifications subject to change without notice. Product features, specifications, or industrial design of the camera product are subject to change without notice, and actual product appearance may differ from what is depicted on product packaging, on websites, or in marketing material. EnGenius and EnViwer are trademarks or registered trademarks under EnGenius Technologies Inc. Other trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright ©2014 EnGenius Technologies, Inc. All rights reserved. Compliant with FCC - This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications,. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense. In the United States of America, use of video or audio equipment for recording the image of a person without their knowledge and consent is prohibited in certain states, commonwealths, municipalities, or jurisdictions. The enduser assumes all liability for compliance with applicable state, local, and federal laws. End-users in other countries assume all liability for compliance in their country. EnGenius Technologies, Inc. is not responsible or liable for any property loss or damage in any site or deployment where EnGenius camera products are used.

Dimensions, Weight & Package Contents

Device Dimensions & Weight (with Stand)
Length: 1.93 inches
Width: 2.99 inches
Height: 4.69 inches
Weight: 0.23 lbs

Package Contents
EDS1130 IP Network Network Camera
12V/1A Power Adapter
RJ-45 Ethernet Cable
UID Cable
Quick Installation Guid
