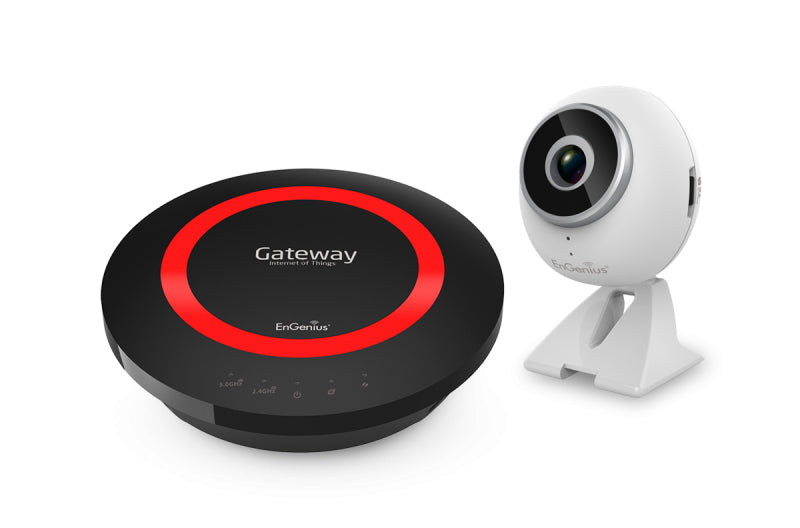

EnGenius EBK1000 IP Camera and Dual Band IoT Gateway

EnGuardian Kit with HD720P IP Camera and Dual Band IoT Gateway

Take more control of your digital life

EBK1000

• Monitor Your Home, Family and Pets
• Keep An Eye on Your Business
• Alerts Sent to Smartphones and Tablets
• Integrated Alarm That Can Be Connected to a Sound System or Loudspeaker
• Schedule or Instantly Record and Archive Video
• Intelligent Video Recording and Playback
• Two-Way Communication – Speak directly with Family Members, Caregivers and Others

Features

Faster File Transfers and Smoother Video Streaming

Utilizes 802.11n as well as 802.11ac standard speeds, with up to 1300 Mbps on its 5 GHz frequency band and up to 450 Mbps on its 2.4 GHz band. Ideal for media streaming, online gaming, and large file transfers in and around the home.

Share Music and More with EnShare USB Media Sharing

EnShare lets users access media content from a storage device attached to the USB port of the EPG5000 in or away from home and enables users to upload content back to the attached USB drive on the EPG5000 when away from home via an available Internet connection.

Access EDS1130 Camera with the EnViewer App

Available as a free download on the Apple or Google Play store, EnViewer lets small business owners or homeowners view EnGenius IP Camera feeds by connecting to the EPG5000 Gateway using a smartphone. Snap a JPEG or record video using a connected smartphone. Receive alert messages to a smartphone when triggered by camera’s motion detection feature.

Captures fine detail in video or still images


HD 720P quality with real-time recording at 30 frames per second. Up to 1-Megapixel Resolution for better image clarity

Detects Activities

Motion and audio detect capability sends alert messages and video clips to your mobile device through EnViewer so you can respond accordingly and alert family members, law enforcement, the fire department or other emergency personnel.

Technical Specifications

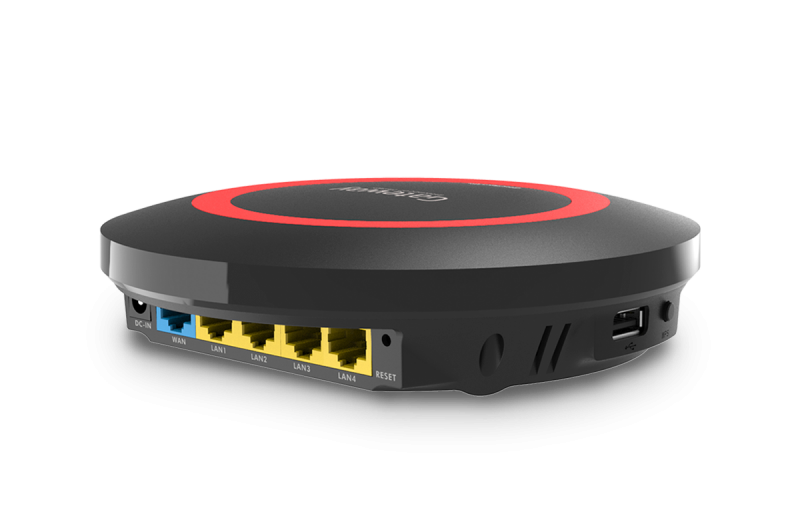

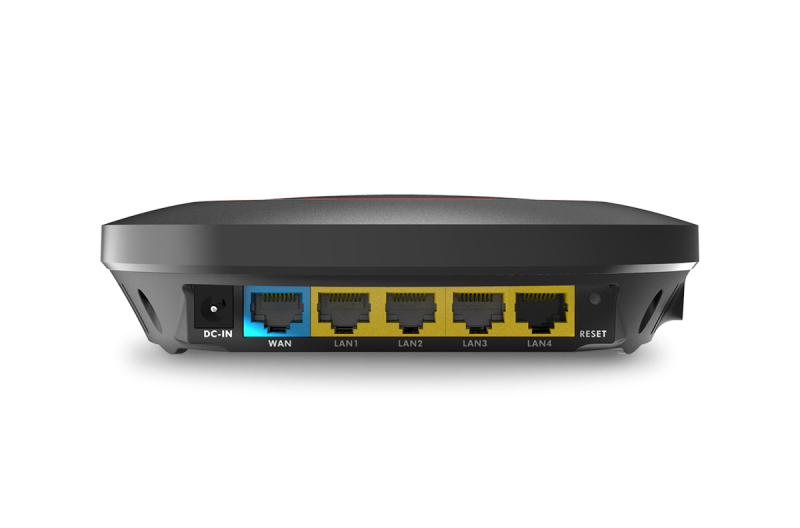

Device Interface

Gigabit WAN Port
4 Gigabit LAN Ports
USB2.0 Port
Push Button for WPS
Reset Button

IEEE Standards

802.11a/b/g/n/ac
Up to 450 Mbps wireless speed in the 2.4 GHz frequency band
Up to 1300 Mbps wireless speed in the 5 GHz frequency band
802.3i/u/ab

LED Indicators

Power
WLAN (Wireless Connection)
Internet

Package Contents

EPG500 IoT Gateway
Power Adapter (12V 1.5A)
Quick Start Guide
RJ45 Ethernet Cable

Power Specification

External Power Adapter
DC In, 12V 1.5A

Certifications

FCC/CE/IC

Physical/Environmental Conditions

Operating Temperature: 0º~40º
Humidity: 90% or less (non-condensing)
Storage Temperature: -20º~60º
Humidity: 95% or less (non-condensing)

Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment, and mix of devices in the network. EnGenius Technologies, Inc. EnShare™ supports both FAT32 and NTFS USB formats. Transfer speeds of data from your router-attached USB storage device to a remote/mobile device may vary based on Internet uplink and downlink speeds, bandwidth traffic at either send or receive locations, the data retrieval performance of the attached storage device or other factors. EnGenius does not guarantee compatibility with all USB drives. EnGenius does not guarantee compatibility for media streaming with Smart TVs or other home entertainment devices. EnGenius does not warrant its products or EnShare from loss of data or loss of productivity time. Features and specifications subject to change without notice. Screen images simulated. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Google Play is a trademark of Google Inc. Trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright ©2013 EnGenius Technologies, Inc. All rights reserved.

Technical Specifications

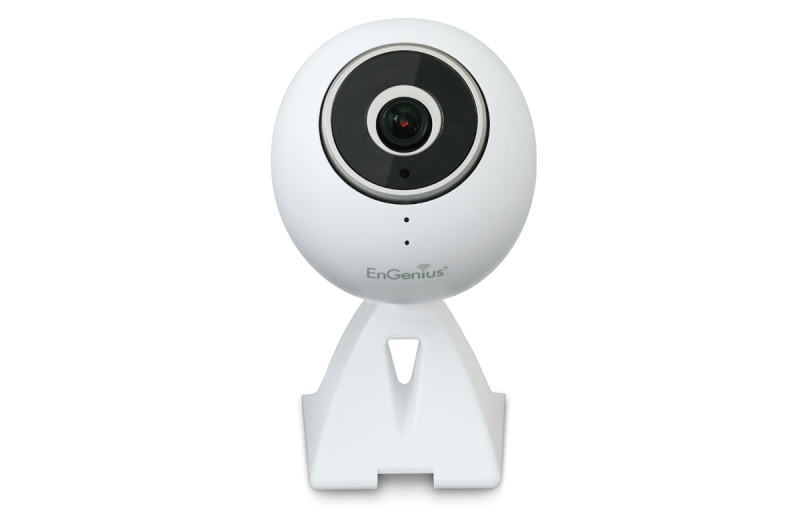

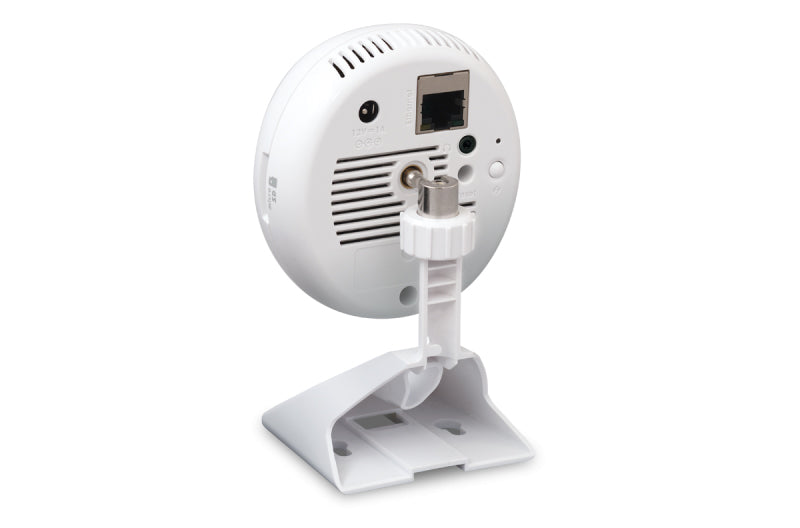

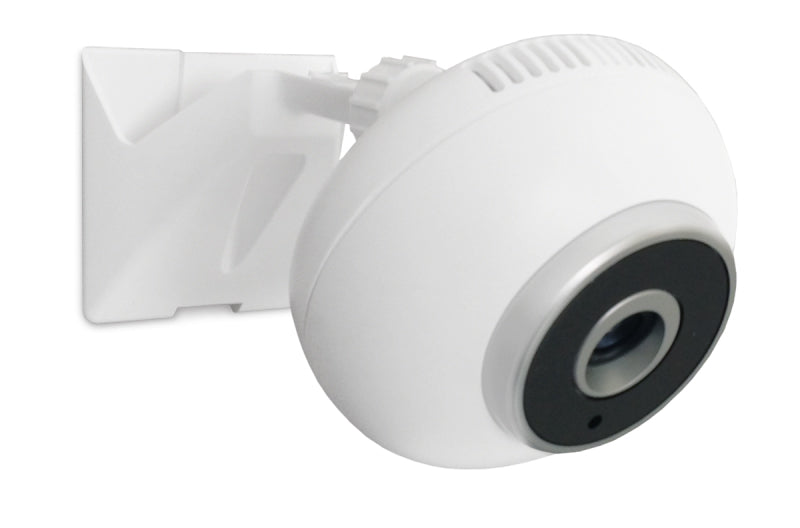

EDS1130 Camera

Camera

Image Sensor:
1/4" Megapixel Progressive Scan CMOS
Lens:
Board Lens
Fixed Focus, 4 mm @ F2.4
Day/Night: Built-in Mechanical IR-Cut Filter

Minimum Illumination:
Color (IR-off): 0.2 Lux/F = 1.8
B/W (IR-on): 0 Lux/F = 1.8

IR Illuminator:
6 pcs IR Illuminators, effective up to 16.4 feet/5 meters

Power consumption: Up to 7W

Video

Compression: H.264/MPEG/MJPEG

Simultaneous Streams: 2x Video Streams

Frame Rates:

H.264: Up to 30 fps at 1280 x 720

MPEG-4: Up to 30 fps at 1280 x 720

MJPEG: Up to 30 fps at 1280 x 720

Image Settings:

Adjustable Image Size, Quality & Bit Rate
Configurable Brightness, Sharpness, Contrast, Saturation, White Balance, & Exposure
AGC/AWB/AES
Flip & Mirror
Time Stamp & text Caption Overlay
Manual/Auto Day & Night

Audio

Audio Streaming: 2-Way

Compression: G.711
Input/Output Gain Control

Interface:
Built-in Microphone
External Audio Out

Networking

Network:

10/100 Mbps Ethernet
RJ-45
Built-in Wi-Fi IEEE 802.11b/g/n (150 Mbps)
Built-in High Sensitive Internal Wireless Antenna
EnGenius DDNS
Auto NAT Pass Through/UPnP Traversal
WPS Settings
Protocols:
IPv4, TCP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, UPnP, RTP, RTSP, PPPoE, SMB

Security
Password Protection
IP Address Filtering
User Access Log
Wireless Encryption: WEP, WPA, WPA2, WPS Button
2-Level Accounts:
Admin/Guest

Alarm & Event Recording

Alarm:
Motion Detection
Audio Detection

Event Actions:
File Upload to FTP, SMB, SMTP, Mobile App., EnGenius Cloud Router

Notifications:
Email
Push Notifications (For Mobile Apps only)
Video Playback (PC/iPhone/iPad/Android)
EnGenius Smart Recording (Only for EnGenius Cloud Series Routers)

Mobile Apps

Supports:

iPhone/IPad/Android Devices

EPG5000 Software Features

Frequency Bands

2.400~2.484 GHz (11b/11g/11n)
5.18~5.82 GHz (11a/11n/ac)

Operating Mode

AP Router

Wireless Features

Auto Channel Selection
Output Power Control
WMM (Wireless Multimedia)
MSSID (Multiple SSID)

Security

WEP/WPA-PSK/WPA2-PSK
TKIP/AES
Hidden SSID
MAC Address Filtering
802.1X Authentication
DDoS
DHCP Server/Client
SPI (Static Packet Inspection)
NAT
Port Forwarding
DMZ
Port Mapping/Triggering
VPN with PPTP, L2TP, IPSec, L2TP over IPSec
VPN Tunnels: 5
QoS
IP Filtering
Port Filtering
DDNS
IPv6 Pass-through
MAC Clone
Traffic Monitor
WAN Type: PPPoE/DHCP/Static IP
USB Features: SAMBA

Dimensions and Weights

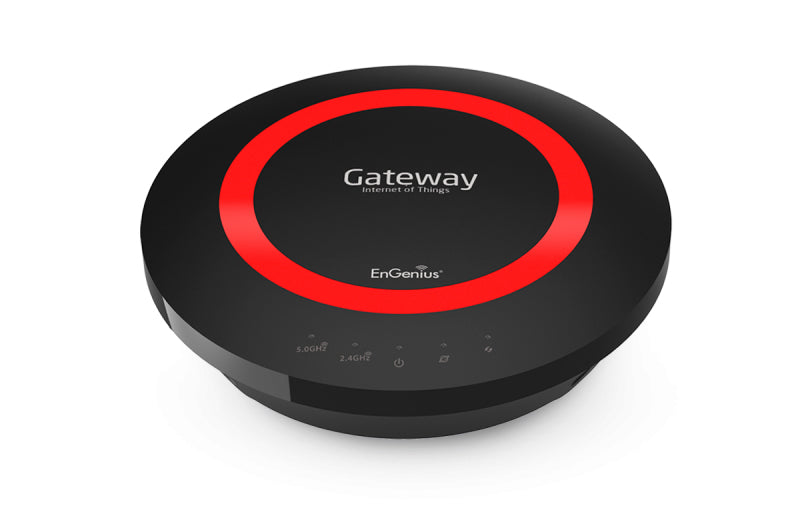

EPG5000 Device
Weight: 0.5 lbs.
Diameter: 6.36”
Height: 1.64”

EDS1130 Camera Environmental & Physical

Temperature Range
Operating: -32º~104ºF/-0ºC~40ºC
Storage: /-4Fº~140ºF/-20ºC~60ºC

Humidity (non-condensing)
Operating: 95% or less
Storage: 95% or less

Physical
Local Storage
SDHC Slot

Power Input:
12V/1A

Certifications

FCC, IC

Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment, and mix of devices in the network. Features and specifications subject to change without notice. Product features, specifications, or industrial design of the camera product are subject to change without notice, and actual product appearance may differ from what is depicted on product packaging, on websites, or in marketing material. EnGenius and EnViwer are trademarks or registered trademarks under EnGenius Technologies Inc. Other trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright ©2014 EnGenius Technologies, Inc. All rights reserved. Compliant with FCC - This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications,. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense. In the United States of America, use of video or audio equipment for recording the image of a person without their knowledge and consent is prohibited in certain states, commonwealths, municipalities, or jurisdictions. The enduser assumes all liability for compliance with applicable state, local, and federal laws. End-users in other countries assume all liability for compliance in their country. EnGenius Technologies, Inc. is not responsible or liable for any property loss or damage in any site or deployment where EnGenius camera products are used.

Dimensions, Weight & Package Contents

Device Dimensions & Weight (with Stand)

Length: 1.93 inches
Width: 2.99 inches
Height: 4.69 inches
Weight: 0.23 lbs

Package Contents

EDS1130 IP Network Camera
12V/1A Power Adapter
RJ-45 Ethernet Cable
Quick Installation Guide
