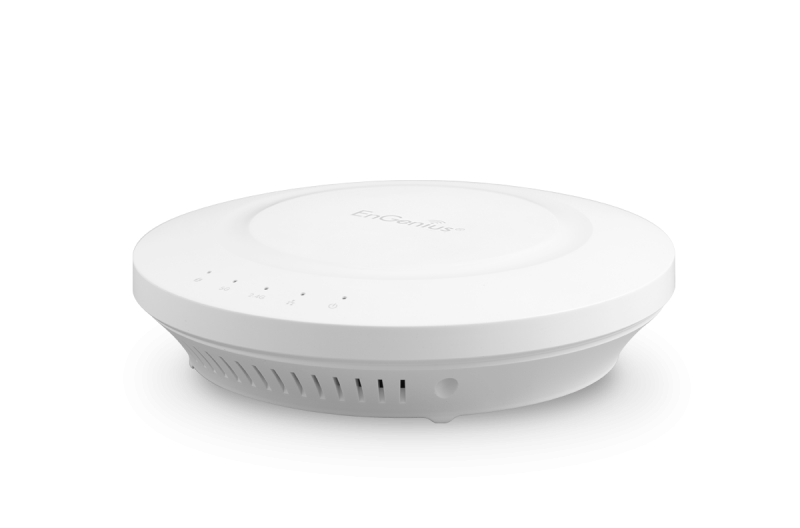

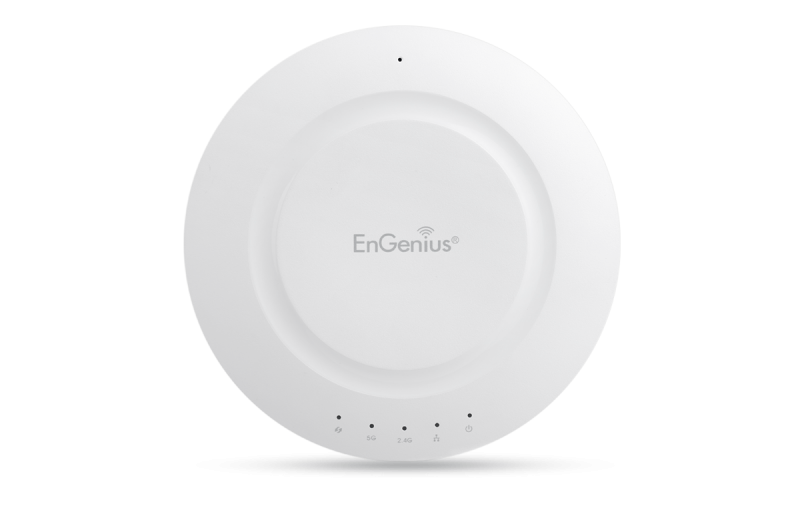

EnGenius EAP600 High-Powered, Long-Range Ceiling Mount, Dual-Band N600 Indoor Access Point

High-Powered, Long-Range Ceiling Mount, Dual-Band N600 Indoor Access Point

Connect to both 2.4 and 5 GHz Clients

EAP600

• Dual Band Wireless for Expanded Capacity
• Wireless N600 Speed
• High Power, Long-Range for Multi-Floor Penetration
• Award-Winning Design
• Industry Standard Security
• SSID-to-VLAN Tagging
• 802.3at/af PoE Compatible

Features

Expanded User Capacity with Dual Band Wireless N600 Speed

Adds more overall user capacity with 5 GHz frequency band and up to 300 Mbps on both 2.4 and 5 GHz for faster large file transfers and smoother video streaming.

High Power, Long-Range and Multiple Floor Penetration

29 dBm for 2.4GHz, 26 dBm for 5 GHz RF Tx power provides more than twice greater wireless coverage over mainstream competitors and enables the wireless signal to penetrate floors, ceilings and walls for greater device connectivity.

SSID-to-VLAN Tagging

Can be configured to broadcast up to (8) SSIDs (4 SSIDs per frequency band). Each SSID can be tagged to a specified company network VLAN for different user access based on established access rights.

Improves and Optimizes Wireless Traffic

Band Steering feature automatically detects Dual Band capable clients and moves them from the 2.4 GHz band to the 5 GHz band. This allows applications such as video streaming to flow more easily and helps to eliminate traffic congestion on the 2.4 GHz band.

Extends the Network Further

Acts as an extension of an existing home or small business network for video streaming, voice & data intensive applications.

Monitor and Manage Several Access Points from the Convenience of Your Desk

EZ Controller™ software for Windows, Mac OS X or Linux provides a suite of tools for IT managers, installers and network administrators to manage and maintain wireless networks. Available as a free download.

Specifications

Technical Specifications

Hardware

RF: 2.4 and 5 GHz Frequency Bands

Standard:

IEEE 802.11a/b/g/n

Radio I: 11b/g/n: 2.412~2.484 GHz

Radio II: 11a/n: 5.18-5.24 and 5.26-5.32 and 5.5-5.7 and 5.745-5.825 GHz

Data Rate: Up to 300 Mbps in both frequency bands

Memory: 64MB

Flash Memory: 8MB

Power Consumption: Up to 16W

Antenna
Four (4) Internal 5 dBi Omni-Directional Antennas

Physical Interface
1 x RJ-45 Gigabit Ethernet (10/100/1000 Mbps)
1 x Reset Button
Power Jack

Power Requirements

Power Supply: 90 to 240 VDC ± 10%, 50/60 Hz
(depends on different countries)
Active Ethernet (Power-over-Ethernet, IEEE 802.3af)
Power Adapter (United States) 48VDC/0.375A
Device: 12V/1A

Modulations

OFDM: BPSK, QPSK, 26-OAM, 64-QAM, DBPSK, DQPSK, CCK

Operating Channels

2.4 GHz: US/Canada 1-11

5 GHz: Country dependent for the following ranges:

36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165

Receiver Sensitivity

8802.11n (5 GHz)
-94dBm @ MCS0
-76dBm @ MCS7
-91dBm @ MCS8
-73dBm @ MCS15

802.11n (2.4 GHz)
-95dBm @ MCS0
-77dBm @ MCS7
-91dBm @ MCS8
-75dBm @ MCS15

802.11a (5 GHz)
-95dBm @ 6Mbps
-80dBm @ 54Mbps

802.11b (2.4 GHz)
-95dBm @ 1Mbps
-91dBm @ 11Mbps

Available Transmit Power

(Max. Power may be different depending on local regulations)

802.11n (5 GHz)
27dBm @ MCS0~2/MCS8~10
26dBm @ MCS3/MCS11
25dBm @ MCS4/MCS12
23dBm @ MCS5/MCS13
22dBm @ MCS6/MCS14
21dBm @ MCS7/MCS15

802.11n (2.4 GHz)
27dBm @ MCS0~2/MCS8~10
27dBm @ MCS3/MCS11
26dBm @ MCS4/MCS12
25dBm @ MCS5/MCS13
24dBm @ MCS6/MCS14
23dBm @ MCS7/MCS15

802.11a (5 GHz)
26dBm @ 6~24Mbps
25dBm @ 36Mbps
23dBm @ 48Mbps
21dBm @ 54Mbps

802.11b (2.4 GHz)
7dBm @ 1~11Mbps

Software

Topology
Infrastructure/Ad-Hoc

Operation Modes
Access Point, WDS Bridge, WDS Access Point, Universal Repeater

Multiple BSSID
Supports up to 8 BSSIDs per radio

LAN
IP (check validity and DHCP server IP range)

DHCP Server
DHCP range, lease time, client list

SSID-to-VLAN Tagging
Supports 802.1q SSID-to-VLAN tagging

Spanning Tree
Supports 802.1d Spanning Tree Protocol

Wireless

Wireless Mode: 11a/11b/11g/11n
Channel selection (settings vary by country)
Channel bandwidth (Auto, 20 MHz, 40 MHz)

Transmission rate:

2.4 GHz: 11n only, 11b/g/n mix, 11b only, 11b/g, 11g only

5 GHz: 11n only, 11a/n mix, 11a only

QoS
WMM (Wireless Multimedia)

VPN
Pass-through (PPTP, L2TP, IPSec)

WPS
Software only

Management

Tx Power Control
Adjust transmit power by dBm

Configuration
Web-based configuration (http)/Telnet

Telnet Server
CLI

Firmware Upgrade
Via web browser, settings are reserved after upgrade

Administrator Setting
Administrator Username and Password Change

Reset Setting
Reboot (press 1 second).
Reset to factory default (press 10 seconds)

System Monitoring
Status Statistic and Event Log

SNMP
V1, V2c, V3

MIB
MIB I, MIB II (RFC1213) and private MIB

Traffic Shaping
Incoming and outgoing wireless traffic shaping

Auto-channel Selection
Automatically selecting least congested channel

Bandwidth Measurement
IP range and bandwidth management

Auto Reboot
Reboot Access Point by minute, hour, day, or week

Backup and Restore
Save and restore settings through Web interface

CLI
Supports Command Line Interface

Diagnosis
IP pinging statistics

Log
SysLog and Local Log support

LED Control
On/Off

AP Detection
Scanning for available EnGenius APs

Wireless / Network

PPPoE: Point-to-Point Protocol over Ethernet in Client Router mode
(this function will keep trying when failed or disconnected)

PPTP: Point-to-Point Tunneling Protocol (PPTP) is a method for implementing virtual private networks

Wireless Security

WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-EAP using TKIP)
802.1X RADIUS Authenticator: MD5/TLS/TTLS, PEAP
SSID broadcast enable/disable
MAC Address Filtering, Up to 50 field
L2 Isolation (Access Point mode)
Wireless STA (Client) connected list (Idle/Connection Time, Pkt statistics)

QoS (Quality of Service)
WMM (Wireless Multimedia)

Environmental & Physical

Temperature Range

Operating: 0º to 50ºC (32º to 122ºF)
Storage: -20ºC to 60ºC (-4Fº to 140ºF)

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Certifications

FCC, IC

Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment, and mix of devices in the network. Features and specifications subject to change without notice. Trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright ©2014 EnGenius Technologies, Inc. All rights reserved.

EAP600 Device
Weight: 0.62 lbs.
Diameter:  6.36”
Height: 1.64”
