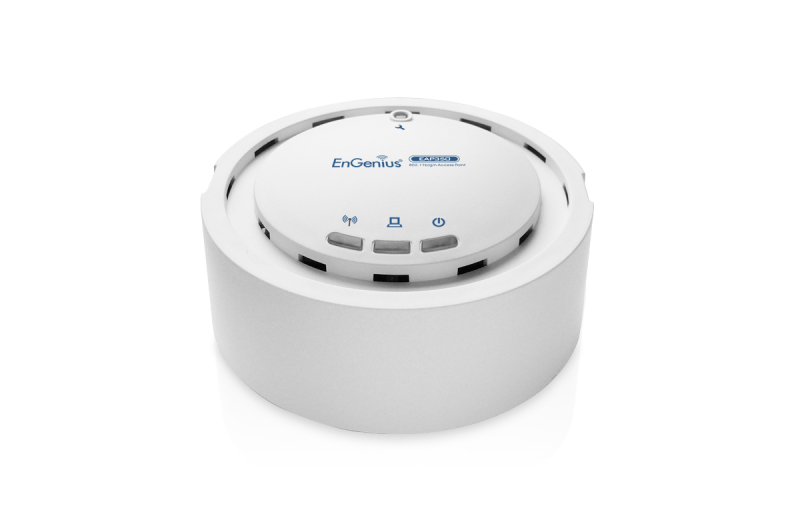

EnGenius EAP350 High-Powered, Long-Range Ceiling Mount, Wireless N300 Indoor Access Point

High-Powered, Long-Range Ceiling Mount, Wireless N300 Indoor Access Point

With Gigabit Ethernet Port

EAP350

• High Power, Long-Range Coverage
• Multiple Operation Modes
• Wireless N300 Speed
• Gigabit Ethernet Port
• SSID-to-VLAN Tagging
• IEEE 802.3af PoE Compliant
• EZ Controller

Features

High-Powered, Long-Range Wireless-N Connectivity

Up to 29 dBm RF Tx (transmit) power with integrated high gain 5 dBi antenna provides more than twice the wireless coverage of other access points.

Multiple Operation Modes

Includes Access Point, WDS Bridge, WDS Access Point, and Universal Repeater modes.

6x Speed Over Legacy 802.11g Access Points

Compliant with 802.11b/g/n standard and MIMO delivering up to 300 Mbps throughput over wireless for greater overall performance and connectivity.


Ideal for streaming videos, VoIP, music, and multimedia applications

Includes Gigabit Ethernet Port for up to 10x faster data transfer rates than Fast Ethernet.

Power-over-Ethernet Option

Supports Power-over-Ethernet (IEEE 802.3af) and enables deployment in ceilings and other areas where power outlets may not be available. Recommended PoE Injector: EnGenius EPE5818af (802.3af compliant) option (purchased separately).

Monitor and Manage Several Access Points from the Convenience of Your Desk

EZ Controller™ software for Windows, Mac OS X or Linux provides a suite of tools for IT managers, installers and network administrators to manage and maintain wireless networks.

Technical Specifications

Hardware

RF: 2.4 GHz Frequency Band

Standard:

IEEE 802.11b/g/n
IEEE 802.11b/g: 2.400~2.484 GHz

Data Rate: Up to 300 Mbps

Memory: 32MB

Flash Memory: 4MB

Power Consumption: Up to 9W

Antenna
Internal 5 dBi Omni-Directional Antenna (diversity support)

Physical Interface
1 x RJ-45 Fast Ethernet (10/100 Mbps)
1 x Reset Button
Power Jack

LEDs Status
Power
LAN (10/100 Mbps)
WLAN (Wireless Connection)

Power Requirements

Power Supply: 90 to 240 VDC ± 10%, 50/60 Hz
(depends on different countries)
Active Ethernet (Power-over-Ethernet, IEEE 802.3af)
Power Adapter (United States) 48VDC/0.375A
Device: 12V/1A

Modulations
OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK, CCK

Operating Channels
2.4 GHz: US/Canada 1-11

Receiver Sensitivity
802.11b (2.412~2.472 GHz) best ≤ -98 dBm
802.11g (2.412~2.472 GHz) best ≤ -93 dBm
802.11n (2.412~2.472 GHz) best ≤ -93 dBm

Available Transmit Power
(Max. Power may be different depending on local regulations)
802.11b (2.412~2.472 GHz)
29 dBm @ 1~11 Mbps
802.11g (2.412~2.472 GHz)
29 dBm @ 6 Mbps
29 dBm @ 9 Mbps
28 dBm @ 12 Mbps
28 dBm @ 18 Mbps
24 dBm @ 24 Mbps
24 dBm @ 36 Mbps
23 dBm @ 48 Mbps
23 dBm @ 54 Mbps
802.11n (2.412~2.472 GHz)
26 dBm @ MCS0/MCS8
26 dBm @ MCS1/MCS9
25 dBm @ MCS2/MCS10
25 dBm @ MCS3/MCS11
24 dBm @ MCS4/MCS12
24 dBm @ MCS5/MCS13
23 dBm @ MCS6/MCS14
23 dBm @ MCS7/MCS15

Software

Topology
Infrastructure/Ad-Hoc

Operation Modes
Access Point, WDS Bridge, WDS Access Point, Universal Repeater

Multiple BSSID
Supports up to 8 BSSIDs

LAN
IP (check validity and DHCP server IP range)

DHCP Server
DHCP range, lease time, client list

SSID-to-VLAN Tagging
Supports 802.1q SSID-to-VLAN tagging

Spanning Tree
Supports 802.1d Spanning Tree Protocol

Wireless

Wireless Mode: 11b/11g/11n
Channel selection (settings vary by country)
Channel bandwidth (Auto, 20 MHz, 40 MHz)

Transmission rate:
2.4 GHz: 11n only, 11b/g/n mix, 11b only, 11b/g, 11g only

QoS
WMM (Wireless Multimedia)

VPN
Pass-through (PPTP, L2TP, IPSec)

WPS
Software only

Management

Tx Power Control
Adjust transmit power by dBm

Configuration
Web-based configuration (http)/Telnet

Telnet Server
CLI

Firmware Upgrade
Via web browser, settings are reserved after upgrade

Administrator Setting
Administrator Username and Password Change

Reset Setting
Reboot (press 1 second).
Reset to factory default (press 10 seconds)

System Monitoring
Status Statistic and Event Log

SNMP
V1, V2c

MIB
MIB I, MIB II (RFC1213) and private MIB

Traffic Measurement
Per interface

Auto-channel Selection
Automatically selecting least congested channel

Bandwidth Measurement
IP range and bandwidth management

Backup and Restore
Save and restore settings through Web interface

Diagnosis
IP pinging statistics

Wireless / Network

PPPoE: Point-to-Point Protocol over Ethernet in Client Router mode
(this function will keep trying when failed or disconnected)

PPTP: Point-to-Point Tunneling Protocol (PPTP) is a method for implementing virtual private networks

Wireless Security

WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-EAP using TKIP)
802.1X RADIUS Authenticator: MD5/TLS/TTLS, PEAP
SSID broadcast enable/disable
MAC Address Filtering, Up to 50 fields
L2 Isolation (Access Point mode)
Wireless STA (Client) connected list (Idle/Connection Time, Pkt statistics)

Environmental & Physical

Temperature Range

Operating: 0º to 50ºC (32º to 122ºF)
Storage: -20ºC to 60ºC (-4Fº to 140ºF)

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Certifications

FCC, IC

Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment, and mix of devices in the network. Features and specifications subject to change without notice. Trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright ©2013 EnGenius Technologies, Inc. All rights reserved.

Dimensions and Weights

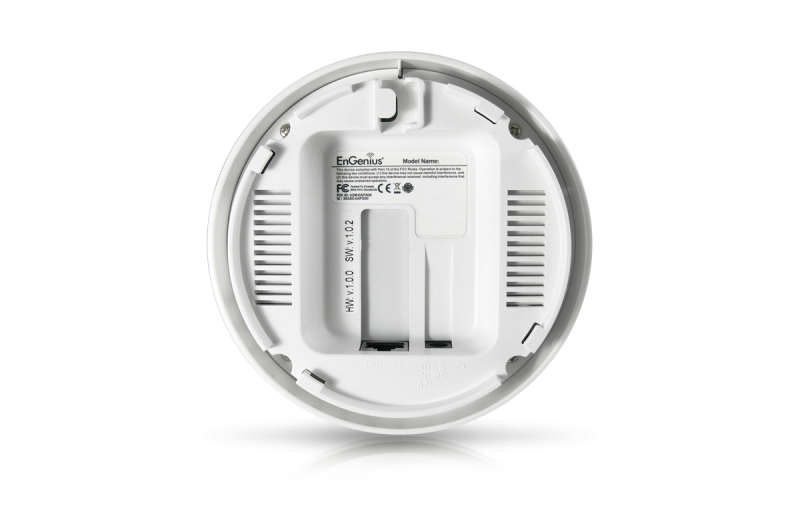

EAP350 Device
Weight: 0.62 lbs.
Diameter: 4.73”
Height: 1.97”
