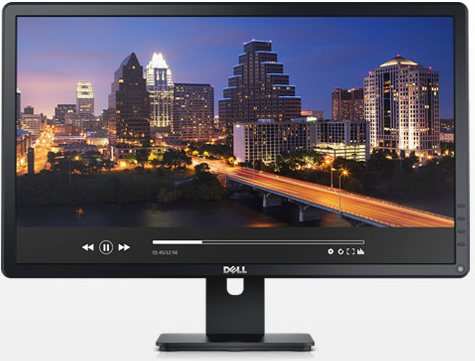

Dell E2314H 23" LED Monitor

Description

Beautifully displays your projects and media.

A brilliant, clear 23" display with environmentally conscious design and rigorous testing for reliability.

• Essential features: High-resolution widescreen 23" display has the features you need to help boost productivity.
• Outstanding quality: Rigorous testing and process-quality monitoring help ensure long-term performance reliability.
• Environment-conscious: Built to comply with the latest environmental and regulatory standards.

Brilliant clarity

Catch every little detail in Full HD brilliance . The DellTM 23 Monitor offers sharp, clear images that make any project easy to complete.

• Full HD 1920 x 1080 resolution at 60Hz (max)
• LED backlighting
• Fast 5 ms response time (typical)
• 83% color gamut1 (typical)

Functional and easy to use

The Dell 23 Monitor is the smart choice for making work easy and play entertaining.

• Plenty of room to work and play with a 16:9 widescreen format
• Convenient onscreen access to your peripherals through the available plug-and-play VGA and DVI-D ports
• Handy preset auto modes with Dell Display Manager

Comfortable and convenient

No squinting or craning your neck with the Dell 23 Monitor. It’s built for comfort.

• Adjustable to your preferred angle with smooth tilt functionality (up to 5.5° forward or 22° backward)
• Easy-to-reach front panel controls
• VESA compatible for various mounting options

A monitor with stamina

Backed by a 3-Year Limited Hardware Warranty2 , the Dell 23 Monitor is built for long-term reliability. It has undergone continuous process quality monitoring and rigorous testing to help ensure stringent standards compliance.

Created for wide deployment

Global availability of the Dell 23 Monitor allows you to deploy consistent and uniform technology for employees worldwide. A long and stable product lifecycle will help ease transition planning.

Environmentally conscious manufacturing

The Dell 23 Monitor meets the latest regulatory and environmental standards.

• ENERGY STAR® Qualified
• EPEAT® Gold Rated3
• TCO Certified Displays
• China Energy Labeled (CEL)

Energy-efficient design

With 22W normal-operation power consumption (typical) and less than 0.5W in active-off mode, the Dell 23 Monitor can help keep energy costs down, particularly in large deployments. Manage power consumption wisely with PowerNap , which you can enable through the Dell Display Manager to either dim the monitor to the minimum brightness level or put it into sleep mode when it is not in use.

Specifications

Display

Diagonally Viewable Size:
58.4 cm
23.0 inches (23.0 -inch wide viewable image size)

Aspect Ratio:
Widescreen (16:9)

Panel Type, Surface:
TN, anti glare with hard coat 3H

Optimal resolution:
1920 x 1080 at 60 Hz

Contrast Ratio:
1000 to 1 (typical)

Brightness:
250 cd/m2 (typical)

Response Time:
5 ms (back to white)

Max Viewing Angle:
(160° vertical /170° horizontal)

Color Gamut:
(typical): 83% (CIE 1976)1

Color Support:

Color Depth: 16.7 million colors

Pixel Pitch:
0.265 mm

Panel Backlight:
LED

Display Type:
Widescreen Flat Panel Display

Display Screen Coating:
Antiglare with hard-coating 3H

Audio Output:
Optional Dell Soundbar (Model #AC511)

Connectivity
1 Digital Visual Interface connectors (DVI-D) with HDCP
1 Video Graphics Array (VGA)

Stand
Tilt only and built-in cable management

Flat Panel Mount Interface:
VESA (100 mm) mounting holes for flexible mounting solutions

Built-in Devices
Dell Display Manager

Security
Security lock slot (cable lock sold separately)

Size and Weight

Dimensions with stand (H x W x D):
15.96" (405.4 mm) x 21.50" (546.2 mm) x 6.52" (165.5 mm)

Dimensions without stand (H x W x D):
12.73" (323.4 mm) x 21.50" (546.2 mm) x 1.83" (46.5 mm)

Preset Display Area(H X V):
509.8 mm x 286.7 mm
20.07" x 11.29"

Weight (panel only - for VESA mount):
3.13 kg (6.89 lb)

Weight (with packaging):
5.50 kg (12.10 lb)

Specifications - Service / Support Details:
3-Year Advanced Exchange Service

Environmental and Regulatory

Electrical

Voltage Required:
100 to 240 VAC / 50 or 60 Hz + 3Hz / 1.5 A (Max)

Power Consumption (Operational):
22W (typical) /30W (maximum)

Power Consumption Stand by / Sleep:
Less than 0.5W

Environmental

Temperature Range Operating:
0° to 40°C (32° to 104°F)

Temperature Range Non-operating:

Storage : -20° to 60° (-4° to 140° F)
Shipping : -20° to 60° (-4° to 140° F)

Humidity Range Operating:
10% to 80% (non-condensing)

Humidity Range Non-operating:

Storage : 5% to 90% (non-condensing)

Shipping : 5% to 90% (non-condensing)

Altitude Operating:
5,000 m (16,400 ft) max

Altitude Non-operating:
12,191m (40,000 ft) max
