Features
Essential Features, Affordable Connectivity
Whether you’re presenting alone or as part of a group, the Dell 1510X Projector keeps superb visuals and enhanced connectivity within your reach — and your budget.
Powerful Visuals: DLP® with BrilliantColor™ technology helps to ensure true-to-life images with dazzling colors and stunning picture quality.
Dell 1510x Projector-Vivid Display Vivid Display: XGA native resolution (1024 x 768) with native 4:3 aspect ratio offers superb image quality with 63 percent more pixels than SVGA (800 x 600).1
Dell 1510x Projector-Big, Bold View Big, Bold View: 3500 ANSI Lumens (max) brightness and high 2100:1 typical (full on/full off) contrast ratio let you deliver crisp, clear presentations even in fully lit rooms.
Dell 1510x Projector-Flexible Connectivity Flexible Connectivity: Dual VGA-In connectors let you switch between PC-based presentations with minimal time lag, while HDMI connection allow for instant connectivity to a variety of devices, including DVD players.
Easy to Manage, Easy to Control
From built-in wired networking to flexible setup and maintenance, the Dell 1510X Projector puts control in the hands of presenters and administrators alike.
Remote Management: Using RJ45 connectivity, administrators can remotely control power (on/off), perform maintenance, update firmware and set up email alerts.2
Audio Flexibility: Microphone connectivity allows presenters to deliver voice-over presentations. The 1510X supports Closed Captioning through the S-Video / Composite video port which allows users with hearing disabilities to read the audio portion of select video and TV programs as on-screen text.
Versatile Setup: Desktop and ceiling mount options, as well as front and rear projection, offer maximum versatility during projector setup.
Convenient Controls: A handy remote control lets you easily adjust distorted images using Keystone Adjustment, change video modes or even hide presentations (via the Blank Screen feature).
Designed for Low Total Cost of Ownership
The Dell 1510X Projector offers thoughtful design features and comprehensive support options that make it easy to enjoy a low total cost of ownership.
Specifications
Brightness:
3500 ANSI Lumens (Max.)
Contrast Ratio:
2100:1 Typical (Full On / Full Off)
Resolution:
XGA (1024 x 768)
Uniformity:
85% Typical (Japan Standard - JBMA)
Projection Lens:
F-Stop: F/2.4~2.66
Zoom Lens: Manual 1.2x
Throw ratio: 1.6 (wide) - 1.92 (tele)
Image Size:
78.23 - 779.78 cm (30.8" - 307") (diagonal)
Projection Distance:
3.9 ft ~ 32.8 ft (1.2m ~ 10m)
Set Up:
3D8 & Crestron RoomView Enabled
LAMP
Lamp Life Cycle9:
Up to 3000-hour Normal Mode
Up to 4000-hour Eco-Mode
Lamp Type:
Philips 225W user-replaceable
Lamp Warranty:
1-year
Vertical: +40° / -35°
Horizontal: N/A
Audio and Speakers
Multimedia Audio:8W Speaker

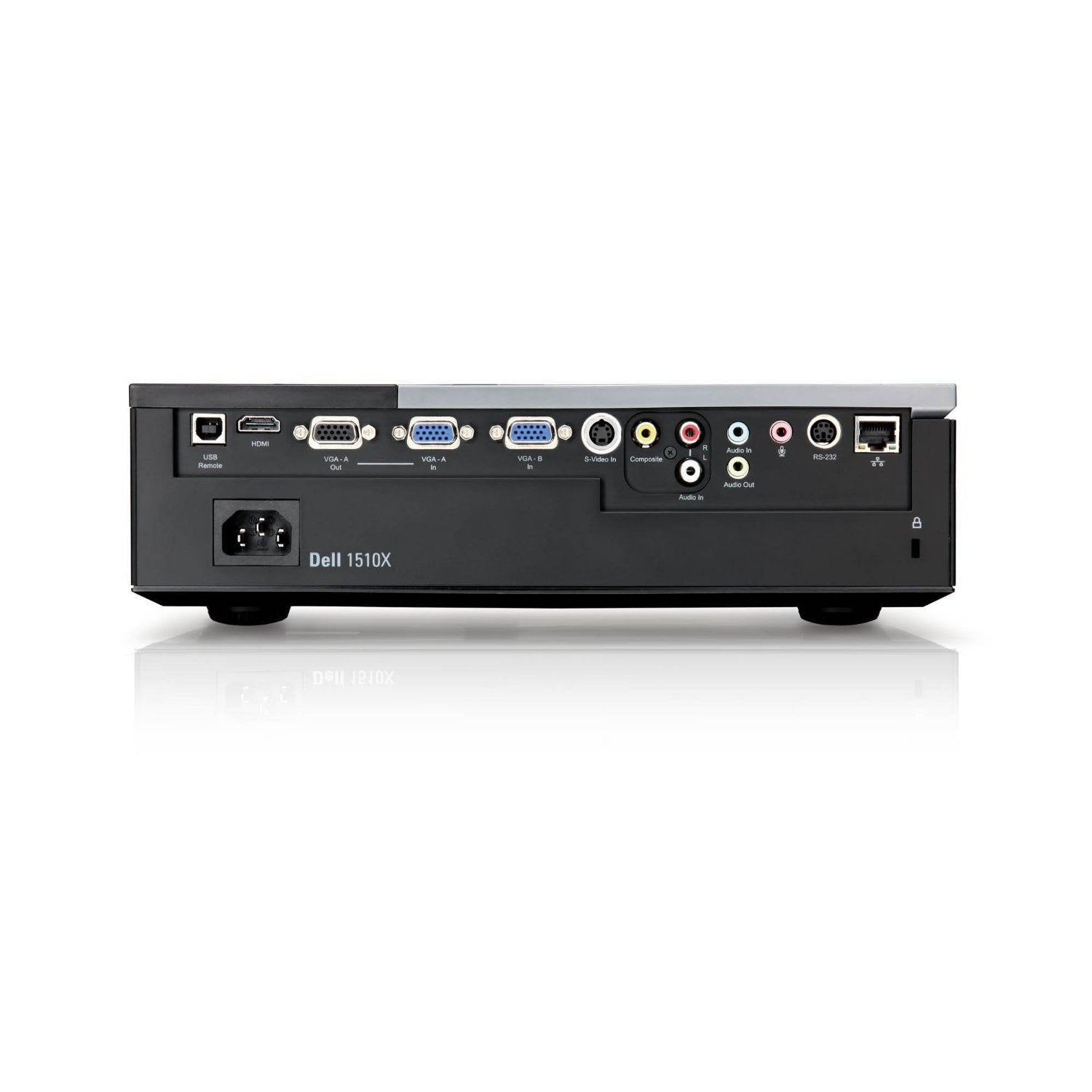

Connectivity
Power: AC power input socket
VGA input: two D-sub for analog/RGB component, HDTV input signals.
VGA output: One 15-pins D-sub
S-Video input: Two D-sub for analog/RGB component, HDTV input signals
Composite video input:one composite video RCA and one S-video
Audio input: one phone jack (Diameter 3.5mm) and one pair of RCA connector, one microphone input.
Networking: one RJ45 connector for networking.
USB port: One USB slave for remote support and firmware upgrade.
HDMI Input: one HDMI 1.3 (HDCP compliant).
VIDEO COMPATIBILITY
Composite Video / S-Video: NTSC [J, M, 4.43, supports Closed Captioning (CC1~CC4)], PAL (B, D, G, H, I, M, N, Nc, 60), SECAM (B, D, G, K, K1, L)
Component Video (via VGA) & HDMI (HDCP Compliant) - 480i/p, 576i/p, 720p, 1080i/p
Dimensions
Dimensions (W x H x D):
29.65 x 8.79 x 20.2 +/- 1 cm (11.68'' x 3.46'' x 7.96'' +/- 0.04'')
Weight:
5.2 lbs (2.36kg)
Warranty
Standard Service Support:
2-year Advanced Exchange Service10 and Limited Hardware Warranty11 for projector unit
1-year lamp warranty11
Includes 24/7 online technical support and telephone technical support12
Extended service support offerings on projector unit for years 3 to 5 are also available.
Power
Power:
Universal AC 100-240V 50-60Hz with PFC input
Power Consumption Operational:
Normal mode: 287W ± 10% @ 110Vac (network On)
Eco mode: 219W ± 10% @ 110Vac (network on)
Power saving mode: ≤15W (network on, fan speed at min)
Standby mode: ≤0.5W (network & VGA OUT off)
Noise Output:
35 dB(A) Normal Mode
32 dB(A) Eco-Mode
Environmental
Operating temperature:
5°C - 35°C (41°F - 95°F)
Humidity:
80% (maximum)
Storage temperature:
0°C - 60°C (32°F - 140°F)
Humidity:
90% (maximum)
Warranty
1 Year Card Warranty
