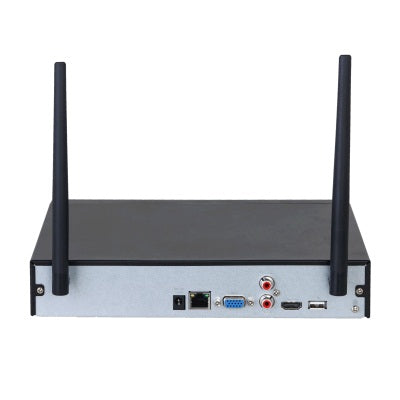

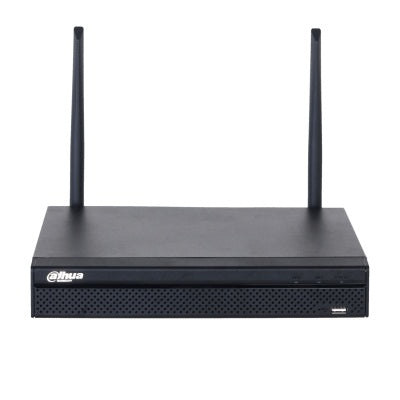

Buy Dahua NVR1108HS-W-S2 8 Channel Compact 1U 1HDD Network Video Recorder online at Rs. 21990. Buy complete range of Category on Vmart.pk, We Offer home delivery all over Pakistan.
Features:New 4.0 user interface.· One-click wireless pairing to IPCs.
Automatic pairing to IPC in 120 s after boot-up under undisturbed conditions.
Automatic cascading of IPCs for long-distance surveillance.
4–ch@1080P (25FPS), self-adaptive decoding capability.
Supports mainstream cameras of ONVIF protocol.
Smart H.265/Smart H.264
VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080P
Remote configuration and management of IPCs, such as setting parameters, acquiring information and upgrading IPCs of the same model in batches.
DHCP (Dynamic Host Configuration Protocol), HTTP (Hypertext TransferProtocol), NTP (Network Time Protocol) and DDNS (Dynamic DomainName System).
Specifications: SystemMain Processor
Industrial-grade embedded processor
Operating System
Embedded Linux
Operating Interface
Web; Local GUI
Audio and VideoAccess Channel
8 channels
Network Bandwidth
Wired mode: 40 Mbps incoming, 40 Mbps recording and 20 Mbps outgoing
Wireless mode: 16 Mbps incoming, 16 Mbps recording
Resolution
6 MP; 5 MP; 4 MP; 3 MP; 2 MP; 720p; D1
Decoding Capability
1-channel 6 MP@25 fps; 1-channel 5 MP@25 fps; 2-channel 4 MP@25 fps; 2-channel 3 MP@25 fps; 4-channel 1080p@25 fps
Video Output
1 × VGA, 1 × HDMI (simultaneous)
Multi-screen Display
1, 4, 8, 9 views
Third-party Camera Access
Onvif
Compression StandardVideo Compression
Smart H.265; H.265; Smart H.264; H.264; MJPEG
Audio Compression
PCM; G711A; G711U; G726
NetworkNetwork Protocol
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server; P2P
Mobile Phone Access
Android; iOS
Interoperability
ONVIF (profile T/S/G); CGI; SDK
Browser
Chrome; IE 9 or later; Firefox
Recording PlaybackMulti-channel Playback
Up to 8 channels
Record Mode
Manual record; alarm record; motion detection record; schedule record
Storage Method
Local HDD and network
Backup Method
USB device
Playback Mode
Instant playback, general playback, event playback, tag playback, smart playback (motion detection)
AlarmGeneral Alarm
Motion detection; privacy masking; video loss; PIR alarm
Anomaly Alarm
Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception
Alarm Linkage
Recording; snapshot; buzzer; log; preset; tour
PortAudio Input
1
Audio Output
1
HDD Interface
1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature
USB
1 front USB 2.0 port, 1 rear USB 2.0 port
HDMI
1
VGA
1
Network Port
1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port
GeneralPower Supply
12 VDC, 1.5 A
Power Consumption
Total output of NVR is ≤ 10 W (without HDD)
Net Weight
0.824 kg (1.82 lb)
Gross Weight
1.56 kg (3.44 lb)
Product Dimensions
260.3 mm × 247.3 mm × 44.7 mm (10.25" × 9.74" × 1.76") (W × L × H)
Packaging Dimensions
372 mm × 117 mm × 308 mm (14.65" × 4.61" × 12.13") (W × L × H)
Operating Temperature
–10 °C to + 45 °C (+ 14 °F to +113 °F)
Operating Humidity
10%–93% (RH)
Installation
Rack or desktop
Certifications
CE: EN62368-1; EN55032; EN55024; EN55035; EN61000-3-2; EN61000-3-3; EN50130-4 FCC: Part 15 Subpart B CE-RED: EN301489-1; EN 301489-17; EN300328; EN300328; EN62311; FCC ID: 47 CFR PART 15 SUBPART C
