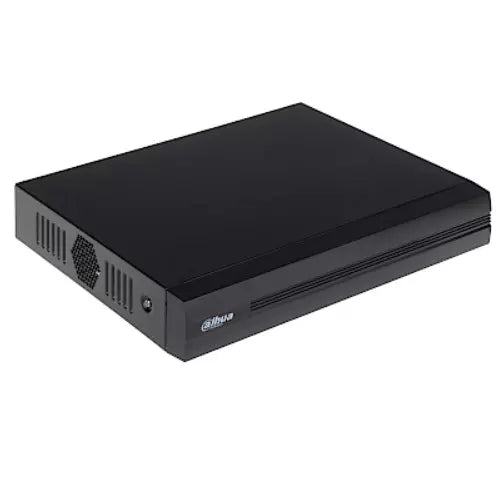

Dahua NVR1104HS-S3/H 4 Channel NVR

Buy Dahua NVR1104HS-S3/H 4 Channel NVR online at Rs. 15990. Buy complete range of Category on Vmart.pk, We Offer home delivery all over Pakistan.

New 4.0 user interface

P2P remote surveillance, video play on a mobile device

4–ch@1080P(30FPS), self-adaptive decoding capability

Support for mainstream cameras of ONVIF and RTSP protocol

Smart H.265+/Smart H.264+/H.265/H.264

VGA/HDMI simultaneous video output, the maximum resolution of HDMI is 1080P

Remote configuration and management of IPCs, such as setting parameters, acquiring information, and upgrading IPCs of the same model in batches

DHCP (Dynamic Host Configuration Protocol), HTTP (Hypertext Transfer Protocol), NTP (Network Time Protocol), and DDNS (Dynamic Domain Name System)

Main Processor Embedded Processor

Operating System Embedded LINUX

Operation Interface Web/operating in local GUI

Access Channel 4 channels

Network Bandwidth 80 Mbps for access, 80 Mbps for storage, and 60 Mbps for forwarding.

Resolution 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF

Decoding Capability 1–ch@8MP (30FPS) or 1–ch@5MP (30FPS) or

2–ch@4MP (30FPS) or 2–ch@3MP (30FPS) or

4–ch@1080P(30FPS)

Video Output 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P

Multi-screen Display 1 / 4

Browser Onvif, RTSP

Video Smart H.265+/H.265/Smart H.264+/H.264

Audio PCM/G711A/G711U/G726/AAC

Network Protocol HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP,

DNS, P2P

Mobile Phone Access IDMSS (iOS), GDMSS (Android)

Access Standard ONVIF (profile T/profile S/profile G), CGI, SDK

Browser Chrome, IE9 or above, Firefox

Multi-channel Playback Up to 4 channels of playback

Record Mode Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording

Storage Local HDD and network

Backup USB device

Playback Function 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off

General Alarm Motion detection, privacy masking, video loss, PIR alarm, IPC alarm

Anomaly Alarm Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly

Alarm Linkage Video recording, snapshot, log, preset, tour

HDD 1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature

USB 1 front USB 2.0 port, 1 rear USB 2.0 port

HDMI 1

VGA 1

RCA Input 1

RCA Output 1

Alarm None

Network 1 RJ–45 port (10/100 Mbps)

Power Supply DC12V, 1.5A

Power Consumption The total output of NVR is ≤ 10W (without HDD)

Net Weight 0.81 kg (1.79 lb)

Gross weight 1.38 kg (3.04 lb)

Product Dimensions 260 mm×225 mm×47.6 mm (W × L × H)

Box Dimensions 87 mm×331 mm×312 mm (W × L × H)

Operating Temperature -10°C to 45°C (+34°F to +113°F)

Storage Temperature 0°C to 40°C (+32°F to +104°F)

Operating Humidity 10%~93%

Storage Humidity 30%~85%

Operating Altitude 3000 m (9843 ft)

Installation Desktop mounting

Certification CE/FCC
