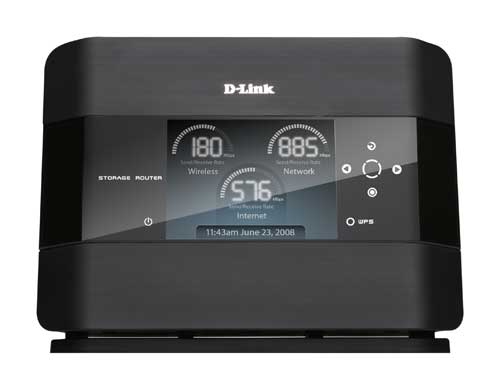

D-Link DIR-685 Xtreme NTM Storage Router

The D-Link DIR-685 Xtreme NTM Storage Router meshes style with technology to offer a simple yet sleek design, ideal for deploying in the home. This all-in-one desktop device combines the functions of an wireless Internet router, network storage device, digital photo frame and print server for the ultimate user experience. using a wide range of latest technologies, it provides an attractive alternative to installing multiple home devices to bring users flexibility, simplified setup and energy savings.

Fast Wireless Connection

The DIR-685's embedded 802.11n WLaN interface delivers superior wireless speed and range, far better than 802.11g, while remaining backward compatible with 802.11g devices. Hidden inside this router are multiple powerful MIMo antennas especially designed for larger homes and users running bandwidth intensive applications. The DIR-685 also comes with a 4-port 10/100/1000 Gigabit switch to connect multiple wired devices such as computers, media players and game consoles for fast fi le transfer and lag-free online gaming.

Up to 500GB of Storage for Photos and Streaming Audio/Video

A compact 2.5" hard drive with up to 500GB disk space can be placed inside this router to act as network storage. Without any cumbersome cables or protruding antennas, you can wirelessly share this disk space among family members, stream stored audio and video to media players attached to stereo systems or TV, and provide remote access to your personal documents from the Internet.

Display Photos & View Internet Content

Place this router on your desk and display your favorite photos on its large, high-resolution color screen. Select functions and navigate to monitor router/hard drive status or view time/date, using the front-panel buttons. Preset Internet channels display weather forecasts, news or sport events.

Share Multifunction Printers & 3G Mobile Internet Connection

Through the SharePortTM Network USB utility, you can connect multifunction printers to the USB ports to share printing and scanning functions among family members. The USB ports also support D-Link 3G adapter connection, so you can bring your router along when you travel and connect it to a 3G mobile service to provide Internet access to a group.

Specifications

Standards

• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab

SATA

• ? USB 2.0

Device Interfaces

• ? 4 Gigabit LAN
• ? 1 Gigabit Internet/WAN
• ? 2 USB 2.0
• ? Built-in 802.11n Wireless Lan

Wireless LAN Data Rates

• ? Up to 300 mbps

Wireless LAN Security

• WEP
• WPA and WPA2 (Wi-fi Protected Access)

Wireless LAN Antennas

• ? Internal Antennas

Firewall Features

• Network Address Translation (NAT
• Stateful Packet Inspection (SPI)
• ?VPN Pass-through / multi-sessions / PPTP / L2TP / IPsec

Qos

• WMM (for wlan traffic)
• Qos engine for prioritizing traffic

Shareport™ Function Support

• Allows connection of external hard drives, flash memory and multifunction printers to USB ports
• Allows sharing of hard drives, printing and scanning functions

Display Panel

• ? 3.2” true color TFT LCD
•  Navigation buttons

Hard Drive Support

• Accepts a sata 2.5-inch internal hard drive, 9.5 mm maximum height

Device Management and Monitoring

• ?UPnP support
• ?DDns support
• ?Integrated wireless security wizard and wireless Protected setup (WPS) support
• ?Windows Connect now (wCn) support
• Web-based management using Internet explorer® 6 or later; mozilla firefox® v2.0 or later; or other java-enabled browsers
• Automatic firmware update notifications
• E-mail notifications for triggered events
• ?UPnP™ aV server for streaming media to compatible media players
• Built-in ftP server for file access from over the Internet scheduled downloads
• LCD and hard drive power management for conserving energy and extending hardware life
• Storage permissions for users
• Multi-language file name support
• D-link network monitor Yahoo! widget
• D-link Internet Usage meter Yahoo! widget

InstallatIon

• ?Quick Router setup Utility
• SharePort™ network USB Utility
• ?Desktop placement

LEDs

• ? Power
• ? LCD

Certifications

• ? FCC Class B
• ? IC
• ? CE
• ? C-tick
• ? Wi-fi Certified b/g/n
• ? Wi-fi Protected setup (WPS) safety
• ? CSA
• ? lVD
• ? ROHS compliant

Recommended System Requirements

? For optimal wireless performance:

• ?Computers and network devices with D-link wireless n or other 802.11n interfaces to connect to the DIR-685

Warranty

2 year company provided
