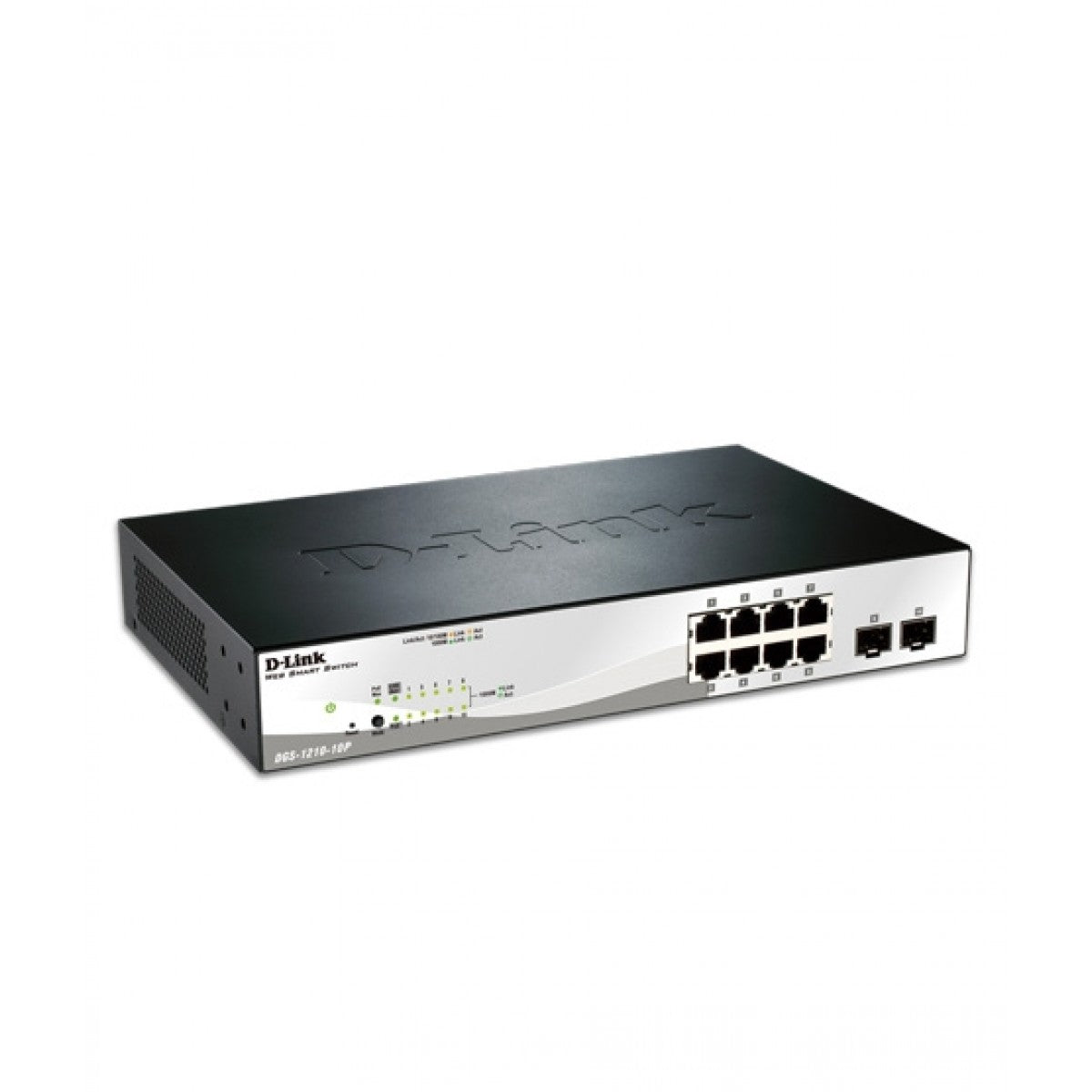

D-Link DGS-1210-10P 10-Port Gigabit Smart Managed PoE Switch

Buy D-Link DGS-1210-10P 10-Port Gigabit Smart Managed PoE Switch online at Low Price. Buy complete range of Wireless Adapters on Vmart.pk, We Offer home delivery all over Pakistan.

The D-Link DGS-1210 Series Smart Managed Switches are the latest generation of switches to provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1210 Series provides a cost-efficient and flexible solution for expanding any business network. The DGS-1210 Series switches support 8, 24, or 48 10/100/1000BASE-T ports. Each switch also supports an additional 2 or 4 Gigabit SFP ports for optical connections using multimode or single mode SFP transceivers.

Five of the nine models in the DGS-1210 series family support Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. These models include the DGS-1210-10P, DGS-1210-10MP, DGS-1210-28P, DGS-1210-28MP and DGS-1210-52MP. Using the switch’s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet. They also support time-based PoE, which allows administrators to set a time window that determines when each port’s PoE power is turned on and off. All PoE models support the IEEE 802.3af and 802.3at standards, and each PoE power budget varies per model.

The DGS-1210 Series supports Auto Voice VLAN and Surveillance Mode, which allow voice and video traffic to be automatically identified and handled differently to regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied. Surveillance Mode detects compatible ONVIF cameras and places them in a surveillance VLAN, allowing a single switch to be used for voice, video, and data, removing the need for dedicated hardware and reducing maintenance costs. Surveillance Mode also includes its own Web UI, making surveillance features easily accessible and simplifying management of your surveillance network.

The DGS-1210 Series comes equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. The Series also supports advanced features such as static routing, which allows for communication between different user groups in different VLAN segments in a network. The switch can directly handle inter VLAN routing using multiple interfaces, making the network run faster and more efficiently. And, because the switches can manage internal routing, the network router can be assigned to handle external traffic routing only.

D-Link's innovative Safeguard Engine protects switches against traffic flooding and virus attacks. 802.11X port-based authentication allows the network to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network.

• 1000Base-T PoE Interface 8
• 1000M SFP Interface 2
• Auto MDI/MDIX Yes
• 10/100/1000BASE-T PoE ports 8
• SFP ports 2
• Switch Capacity 20 Gbps
• Max. Packet Forwarding Rate 14.88 Mpps
• Store & Forwarding Forwading Yes
• Dimension 280mm x 126 mm x 44mm
• Weight 0.95 kg
• Operation Temperature -5 - 50°C
• Storage Temperature -20-70°C
• Operation Humidity 0% - 95% RH
• Storage Humidity 0% ~ 95% RH
• Operating Altitude 1500 meters
• Maximum Power Consumption PoE on <br>81.9 W/100 V<br> 80.6 W/240 V PoE off <br>7.6 W/100 V <br>7.5 W/240 V
• Standby Power Consumption 2.5 W/100V / 2.5 W/240V
• Maximum Heat Dissipation 279.59 BTU/hr (100 V) <br>275.04 BTU/hr (240 V)
• Acoustic 0 dB
• MTBF 729,258 hours
• Power Input 100-240 VAC
• CPU Speed 500MHz
• DRAM Size DDR3 128MB
• Flash Memory Size 32MB
• Packet Buffer Size 4.1MBits
• FAN Fanless
• Comply with RoHS 6 Yes
• Energy Efficiency Ethernet (EEE) Yes
• Power Saving By Link Status Yes
• Power Saving By Cable Length Yes
• Power Saving By Port Shut-Off Yes
• Power Saving By System Hibernation Yes
• Time-based PoE Yes
• Maximum PoE Budget 65Watts
• PoE Budget 65 W
• MAC Address Table Size 8K
• 802.3x Flow Control Yes
• Head-of-line (HOL) Blocking Prevention Yes
• 802.1D Spanning Tree (STP) Yes
• 802.1w Rapid Spanning Tree (RSTP) Yes
• 802.1s Multiple Spanning Tree (MSTP) Yes
• Root Restriction Yes
• 802.3ad Link Aggregation Yes
• Link Aggregation Group Per Device 8
• Max Port Per Link Aggregation Group 8
• Port Mirroring Yes
• Jumbo Frame 10,000 Bytes
• Loopback Detection (LBD) Yes
• IGMP Snooping Yes
• Max IGMP Snooping Groups 256
• IGMP Snooping Fast Leave Yes
• MLD Snooping Yes
• MLD Snooping Groups Yes
• MLD Snooping Fast Leave Yes
• 802.1Q VLAN Yes
• VLAN Groups Yes
• Port-based VLAN Yes
• Voice VLAN Yes
• Auto Surveillance VLAN Yes
• Asymmetric VLAN Yes
• IP Interface Yes
• Max Number of IP Interface 4
• ARP Yes
• ARP Entries Yes
• IPv6 Neighbor Discovery (ND) Yes
• ND Entries 128
• Default Route Yes
• Static Route Yes
• Number of Queue Yes
• Class of Service (CoS) Yes
• Strict Priority Queue (SPQ) Yes
• Weighted Round Robin (WRR) Yes
• Port-based Bandwidth Control Yes
• Max Access Control List (ACL) Entries Yes
• MAC Access List Yes
• IP Access List Yes
• IPv6 Access List Yes
• SSH Yes
• SSL Yes (only support TLS 1.0)
• Port Security Yes
• Broadcast/Multicast/Unicast Storm Control Yes
• Traffic Segmentation Yes
• Smart IP-MAC-Port Binding (Smart IMPB) Yes
• D-Link Safeguard Engine Yes
• DHCP Server Screening Yes
• ARP Spoofing Prevention Yes
• DoS Attack Prevention Yes
• 802.1X Yes
• Port based 802.1X Authentication Yes
• Authentication for Management Access Yes
• RADIUS Yes
• Trusted Host Yes
• Cable Diagnostics Yes
• Simple Network Time Protocol (SNTP) Yes
• Web-based GUI Yes
• Telnet Server Yes
• SNMP Yes
• SNMP Trap Yes
• TFTP Client Yes
• System Log Yes
• RMONv1 Yes
• LLDP Yes
• LLDP-MED Yes
• D-Link Discover Protocol (DDP) Yes (v0.26)
• DHCP/BootP Client Yes
• DHCP relay Yes
• Dual Images Yes
• Dual Configurations Yes
• Debug Command Yes
• Ping Yes
• D-Link Network Assistant Yes (Chrome edition)
• Smart Wizard Yes
