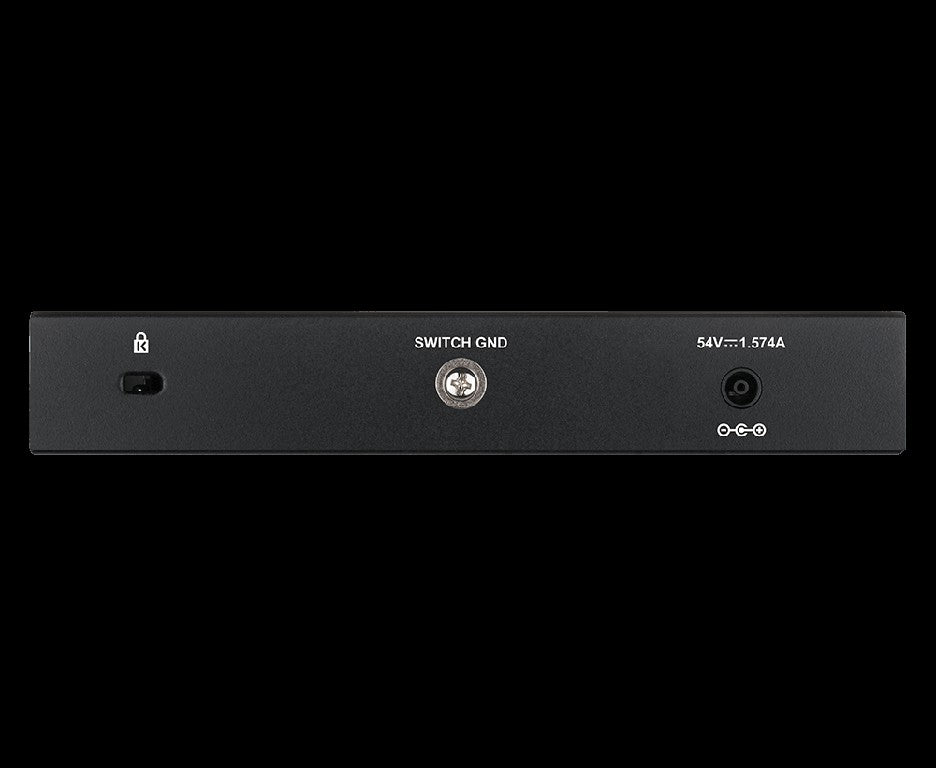

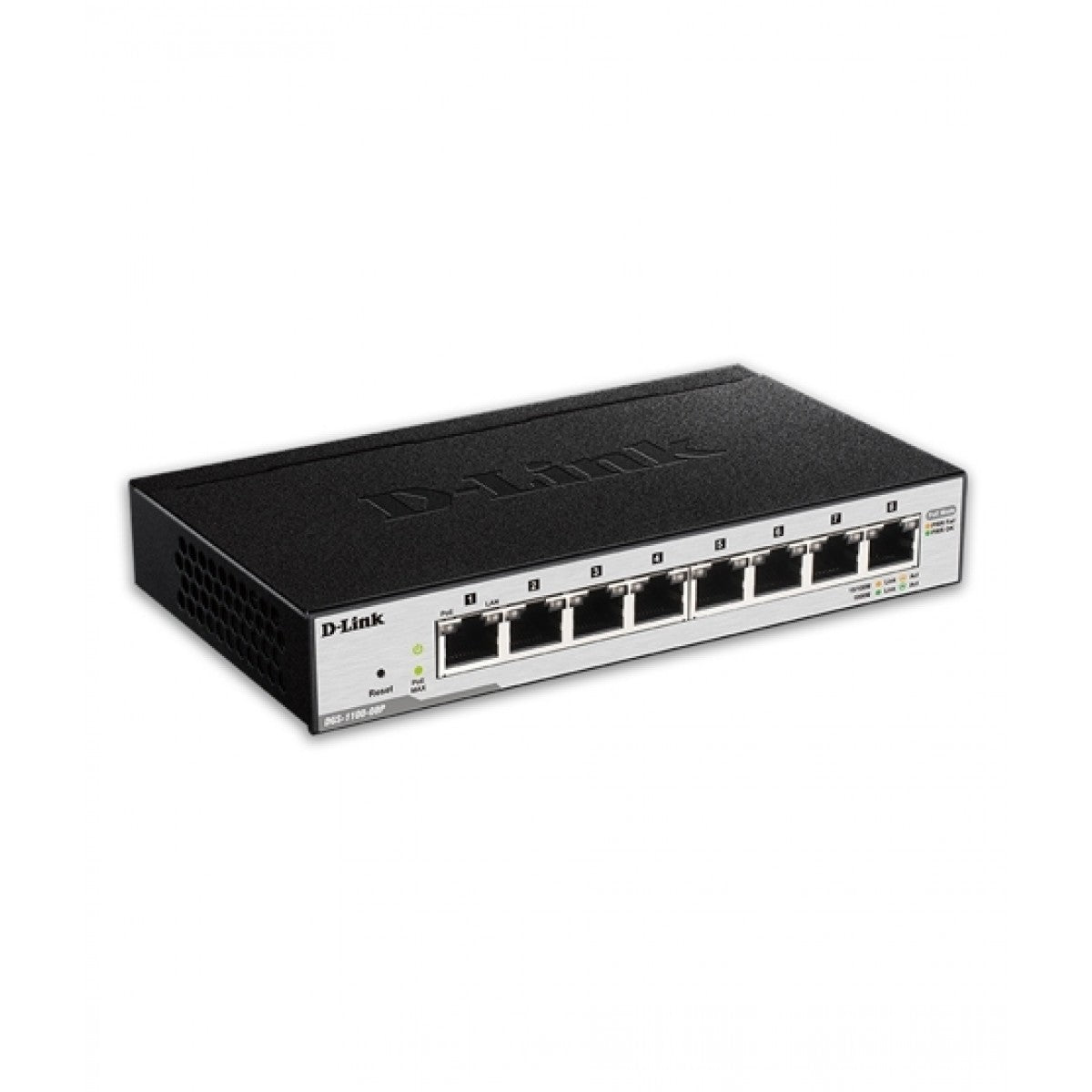

D-Link DGS-1100-08P 8-Port Gigabit PoE Smart Managed Switch

Buy D-Link DGS-1100-08P 8-Port Gigabit PoE Smart Managed Switch online at Low Price. Buy complete range of Wireless Adapters on Vmart.pk, We Offer home delivery all over Pakistan.

The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (static). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.

D-Link’s free Network Assistant (DNA) displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.

Selected models in the DGS-1100 Series support Power over Ethernet on copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet.

The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.

Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).

• Port-based Bandwidth Control: Yes
• Class of Service (CoS): Yes
• 802.3x Flow Control: Yes
• Head-of-line (HOL) Blocking Prevention: Yes
• Store-and-Forwarding: Yes
• Comply with RoHS 6: Yes
• Energy Efficiency Ethernet (EEE): Yes
• 1000Base-T PoE Interface: 8
• Auto MDI/MDIX: Yes
• 10/100/1000BASE-T PoE ports: 8
• CPU Speed: 62.5 MHz
• DRAM Size: 48K Bytes
• Flash Memory Size: 2 MB
• Packet Buffer Size: 1.5 Mbits
• FAN: Fanless
• Jumbo Frame: 9216 bytes
• Loopback Detection (LBD): Yes
• MAC Address Table Size: 4160
• IGMP Snooping: Yes
• Max IGMP Snooping Groups: 128
• Link Aggregation Group Per Device: 2 (static port trunk)
• Max Port Per Link Aggregation Group: 4 (static port trunk) Only port 1-4 for group 1 Only port 5-8 for group 2
• Web-based GUI: Yes
• SNMP: Yes
• SNMP Trap: Yes
• D-Link Discover Protocol (DDP): Yes
• DHCP/BootP Client: Yes
• D-Link Network Assistant: Yes
• Port Mirroring: Yes
• Cable Diagnostics: Yes
• Switch Capacity: 16 Gbps
• Max. Packet Forwarding Rate: 11.9 Mpps
• Maximum PoE Budget: 64W
• PoE Budget: 64 W
• Rate Limiting: Yes
• Power Input: AC：100 ~ 240 V (54V/1.574A power adapter
• Number of Queue: 4
• Queue Handling: Yes
• Strict Priority Queue (SPQ): Yes
• Weighted Round Robin (WRR): Yes
• Port Security: Yes
• Broadcast/Multicast/Unicast Storm Control: Yes
• Traffic Segmentation: Yes
• 802.1D Spanning Tree (STP): Yes
• 802.1w Rapid Spanning Tree (RSTP): Yes
• Surge/Lightning Protection (AC Power Inet): 2kV
• Surge/Lightning Protection (All Ethernet Ports): 1Kv
• Dimension: 171 × 97.8 × 28.6 mm
• Weight: 0.433 kg
• Operation Temperature: 0 ~ 40 °C
• Storage Temperature: - 40 ~ 70 °C
• Operation Humidity: 0% ~ 90% RH
• Storage Humidity: 0% ~ 95% RH
• Maximum Power Consumption: 77.9 W (PoE on) <br>4.6 W (PoE off)
• Operating Altitude: 2000m
• Standby Power Consumption: 2.0 W
• Maximum Heat Dissipation: 265.85 BTU/hr
• Acoustic: 0 dB
• MTBF: 786,841 hours
• 802.1Q VLAN: Yes
• VLAN Groups: 32
• Port-based VLAN: Yes
• Voice VLAN: Static Voice VLAN only
• Surveillance VLAN: Yes
• Asymmetric VLAN: Yes
