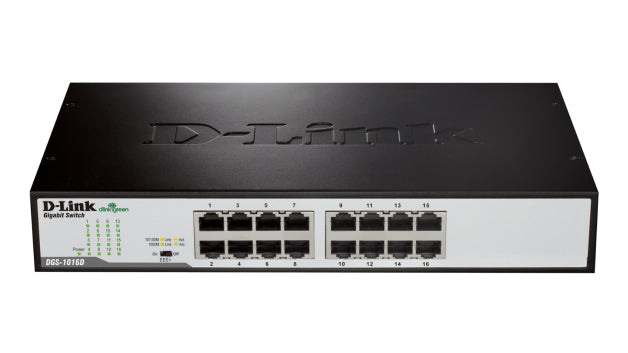

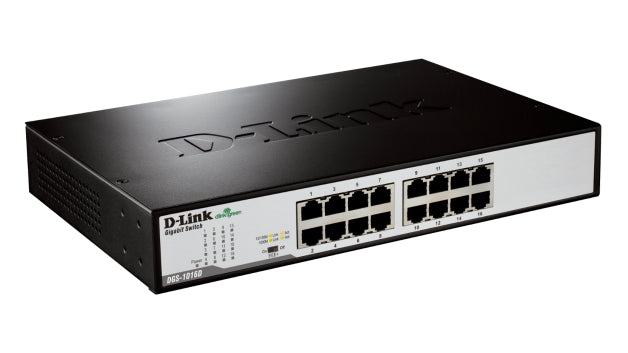

D-Link DGS-1016D 16-Port Gigabit Unmanaged Desktop Switch

Buy D-Link DGS-1016D 16-Port Gigabit Unmanaged Desktop Switch online on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of D-Link products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

The DGS-1016D 16-Port Gigabit Unmanaged Desktop Switch offers an economical way for SOHO and small to medium businesses (SMB) to benefit from the increased bandwidth of Gigabit Ethernet. The DGS-1016D provides 16 Gigabit ports for fast server deployment to meet increasing network loads.

D-Link’s DGS-1016D is part of a new series of SOHO/SMB devices that make use of D-Link’s Green Ethernet technology, featuring IEEE802.3az EEE and EEE+ modes to provide more energy savings and a longer product life without sacrificing operational performance or functionality. IEEE802.3az EEE is a power-saving feature that reduces energy use when the switch is at low utilization. EEE+ is a power-saving feature that is similar to IEEE802.3az EEE. However, unlike EEE, EEE+ can function regardless of whether the switch’s link partner is EEE-compliant or not. Recyclable packaging and minimized use of harmful substances (RoHS compliant) make this switch truly environmentally friendly.

By building on the foundation of D-Link’s Green Ethernet technology, the DGS-1016D helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save substantial amounts of power by cutting power usage for unused ports or ports connected to computers that have been shut down. It can also detect connected cable lengths, and adjusts power usage accordingly, helping you save energy without affecting networking performance. This helps you reduce your power usage and your energy bill.

The DGS-1016D was designed with the environment in mind, and was built to follow RoHS standards to minimize the use of hazardous materials. It uses recyclable packaging that helps reduce waste, and complies with the WEEE directive.

QoS prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media, VoIP calls, and online gaming.

The D-Link Cable Diagnostics Function enables users to efficiently detect cable conditions through the LEDs on the front-panel. Users can determine whether the pin connections of their cables’ connectors are correct, facilitating network troubleshooting.

• D-Link Green Technology

1. Power saving by cable length detection and link status

• Inexpensive Gigabit solution for SOHO/SMB
• Silent, fanless design
• Auto MDI/MDI-X crossover for all ports
• Store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast
• Ethernet speeds
• IEEE 802.3x Flow Control
• Supports 9,600Bytes Jumbo Frames
• Supports IEEE 802.1p QoS (4 Queues, Strict Mode)
• Supports Cable Diagnostics Function
• Supports D-Link’s unique EEE+ mode
• RoHS compliant
• Plug-and-play installation

16 Gigabit ports

32 Gbps switching fabric

??IEEE 802.3 10BASE-T Ethernet (twistedpair copper)

??IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

??IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)

??ANSI/IEEE 802.3 NWay auto-negotiation

??IEEE 802.3x Flow Control

??IEEE 802.1p QoS (4 queues, strict mode)

??IEEE802.3az EEE

??CSMA/CD

??

??10 Mbps (half duplex)

??20 Mbps (full duplex)

??

??100 Mbps (half duplex)

??200 Mbps (full duplex)

??

??2000 Mbps (full duplex)

??Star

??10BASE-T:

??UTP CAT 3, 4, 5/5e (100 m max.)

??EIA/TIA-586 100-ohm STP (100 m max.)

??100BASE-TX, 1000BASE-T:

??UTP CAT 5/5e (100 m max.)

??EIA/TIA-568 100-ohm STP (100 m max.)

??Auto MDI/MDI-X adjustment for all ports

??Per port: Link/Activity/Speed

??Per device: Power

??Store-and-forward

??8K entries per device

??Automatic update

??Ethernet: 14,880 pps per port

??Fast Ethernet: 148,800 pps per port

??Gigabit Ethernet: 1,488,000 pps per port

??512 KB per device

??

3.8 watts

??

11.0 watts

??

12.958 BTU/h

??

37.51 BTU/h

??0 dB

1,087,450 hours

??0 ? to 40 ?C (32 ? to 104 ?F)

??-10 ? to 70 ?C (14 ? to 158 ?F)

??5% to 90% RH non-condensing

??280 x 180 x 44 mm (11.02 x 7.09 x 1.73 inches)

1.59 kg (3.51 lbs)

??FCC Class A

??ICES-003 Class A

??CE Class A

??C-Tick Class A

??VCCI Class A

??cUL

??CB
